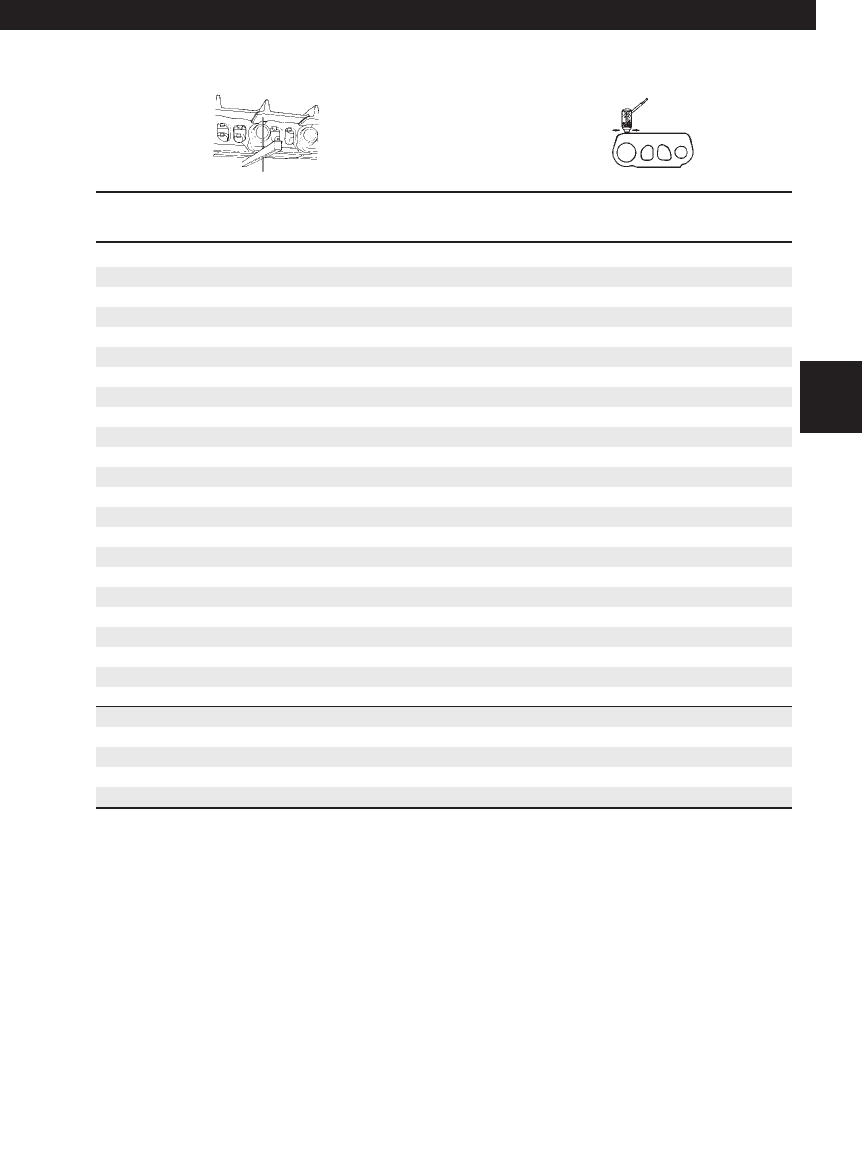

Track Links

8S2589 & 90

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

4.93 (125.0) 0 1.35 (34.3)

4.91 (124.5) 5 1.33 (33.8)

4.89 (124.0) 10 1.31 (33.3)

4.87 (123.5) 15 1.29 (32.8)

4.85 (123.0) 20 1.27 (32.3)

4.83 (122.5) 25 1.25 (31.8)

4.81 (122.0) 30 1.23 (31.2)

4.79 (121.5) 35 1.21 (30.7)

4.77 (121.0) 40 1.19 (30.2)

4.75 (120.5) 45 1.17 (29.7)

4.73 (120.0) 50 1.15 (29.2)

4.71 (119.5) 55 1.13 (28.7)

4.69 (119.0) 60 1.11 (28.2)

4.67 (118.5) 64 1.09 (27.7)

4.65 (118.0) 68 1.07 (27.2)

4.63 (117.5) 72 1.05 (26.7)

4.61 (117.0) 76 1.03 (26.2)

4.59 (116.5) 80 1.01 (25.7)

4.57 (116.0) 84 0.99 (25.1)

4.55 (115.5) 88 0.97 (24.6)

4.53 (115.0) 92 0.95 (24.1)

4.51 (114.5) 96 0.93 (23.6)

4.49 (114.0) 100 0.91 (23.1)

4.47 (113.5) 104 0.89 (22.6)

4.45 (113.0) 108 0.87 (22.1)

4.43 (112.5) 112 0.85 (21.6)

4.41 (112.0) 116 0.83 (21.1)

4.39 (111.5) 120 0.81 (20.6)

Undercarriage Code: 161, 381

349

D7, 977, 571, 572 — 8.50" (215.9 mm)

Low Sprocket Machines

07.Low(348-387) 7/14/03 7:30 AM Page 349
