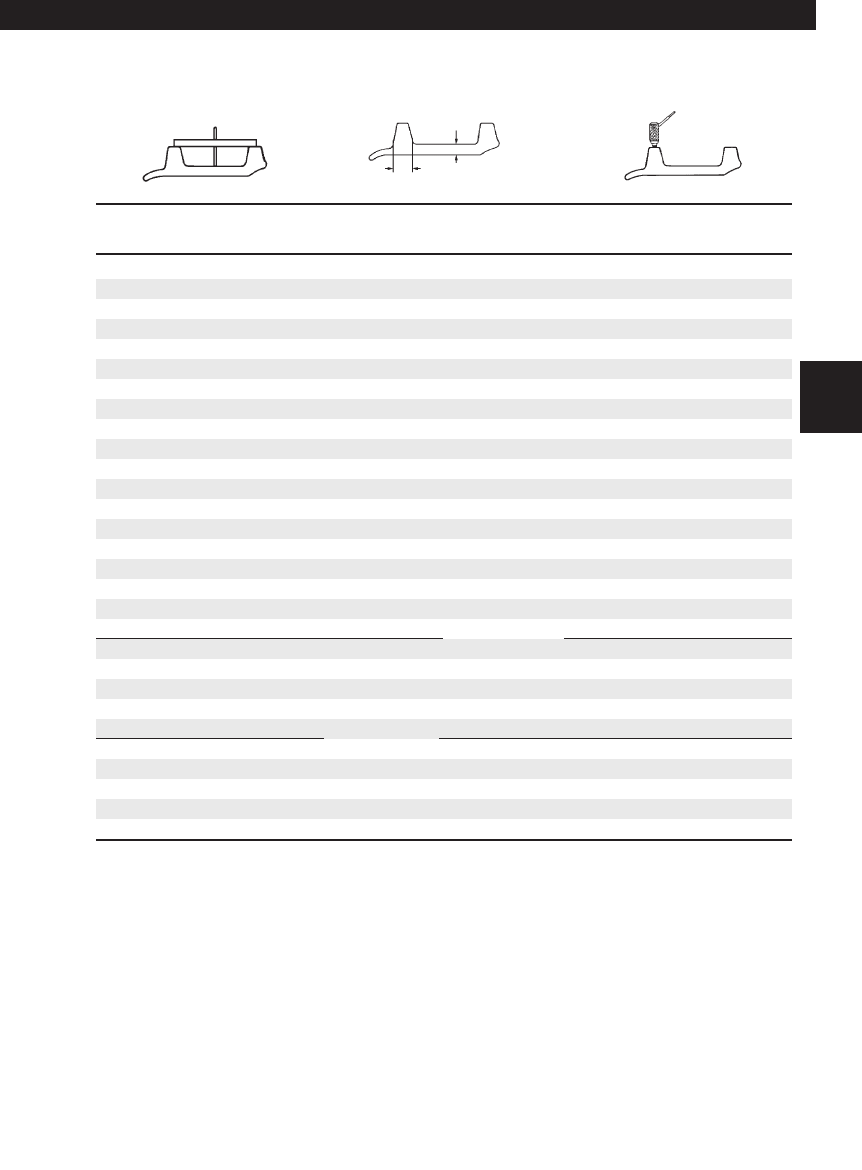

Track Shoes

Double Grouser

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

1.65 (42.0) 0 0 2.20 (55.9)

1.60 (40.5) 6 5 2.15 (54.6)

1.55 (39.5) 12 10 2.10 (53.3)

1.50 (38.0) 18 15 2.05 (52.1)

1.45 (37.0) 24 20 2.00 (50.8)

1.40 (35.5) 30 25 1.95 (49.5)

1.35 (34.5) 36 30 1.90 (48.3)

1.30 (33.0) 42 35 1.85 (47.0)

1.25 (32.0) 48 40 1.80 (45.7)

1.20 (30.5) 54 44 1.75 (44.5)

1.15 (29.0) 60 48 1.70 (43.2)

1.10 (28.0) 65 52 1.65 (41.9)

1.05 (26.5) 70 56 1.60 (40.6)

1.00 (25.5) 75 60 1.55 (39.4)

0.95 (24.0) 80 64 1.50 (38.1)

0.90 (23.0) 85 68 1.45 (36.8)

0.85 (21.5) 90 72 1.40 (35.6)

0.80 (20.5) 95 76 1.35 (34.3)

0.75 (19.0) 100 80 1.30 (33.0)

0.70 (18.0) 105 84 1.25 (31.8)

0.65 (16.5) 110 88 1.20 (30.5)

0.60 (15.0) 115 92 1.15 (29.2)

0.55 (14.0) 120 96 1.10 (27.9)

0.50 (12.5) 100 1.05 (26.7)

0.45 (11.5) 104 1.00 (25.4)

0.40 (10.0) 108 0.95 (24.1)

0.35 (9.0) 112 0.90 (22.9)

0.30 (7.5) 116 0.85 (21.6)

0.25 (6.5) 120 0.80 (20.3)

Undercarriage Code: 151, 1511, 154, 1551, 351, 3511, 353

337

D6, 955 — 8.00" (203.2 mm)

Low Sprocket Machines

.57" (14.5 mm)

1.22" (31 mm)

06.Low(326-347) 7/11/03 3:52 PM Page 337
