Caterpillar Custom Track Service Handbook Page 321

Service Handbook

Page of 826

/ 826

Idlers

(Has no side plate indentations)

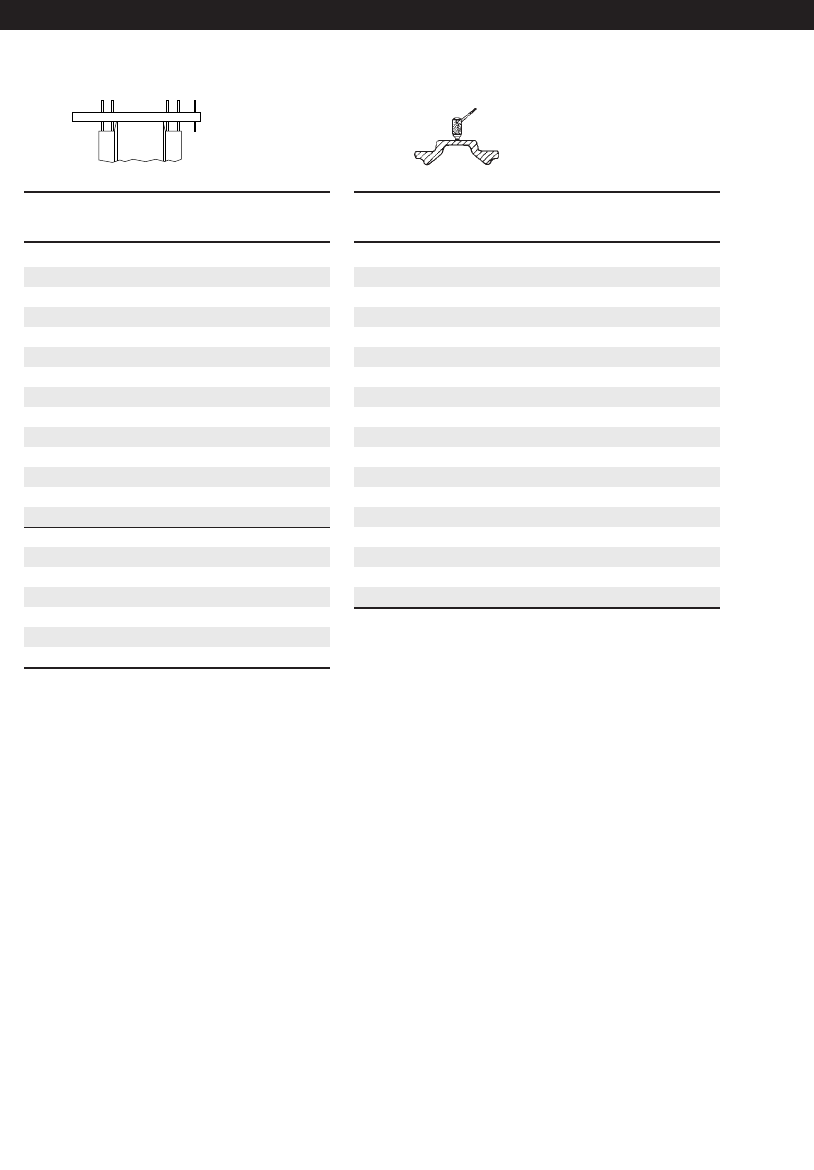

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.78 (20.0) 0 0.36 (9.1) 0.00 (0.0)

0.80 (20.5) 12 0.34 (8.6) 0.02 (0.5)

0.82 (21.0) 24 0.32 (8.1) 0.04 (1.0)

0.84 (21.5) 36 0.30 (7.6) 0.06 (1.5)

0.86 (22.0) 48 0.28 (7.1) 0.08 (2.0)

0.88 (22.5) 60 0.26 (6.6) 0.10 (2.5)

0.90 (23.0) 72 0.24 (6.1) 0.12 (3.0)

0.92 (23.5) 82 0.22 (5.6) 0.14 (3.5)

0.94 (24.0) 85 0.20 (5.1) 0.16 (4.0)

0.96 (24.5) 88 0.18 (4.6) 0.18 (4.5)

0.98 (25.0) 91 0.16 (4.1) 0.20 (5.0)

1.00 (25.5) 94 0.14 (3.6) 0.22 (5.5)

1.02 (26.0) 97 0.12 (3.0) 0.24 (6.0)

1.04 (26.5) 100 0.10 (2.5) 0.26 (6.5)

1.06 (27.0) 103 0.08 (2.0) 0.28 (7.0)

1.08 (27.5) 106 0.06 (1.5) 0.30 (7.5)

1.10 (28.0) 109 0.04 (1.0) 0.32 (8.0)

1.12 (28.5) 112 0.02 (0.5) 0.34 (8.5)

1.14 (29.0) 115

NOTE: Ultrasonic measurement is to determine

1.16 (29.5) 118

flange wear only.

1.18 (30.0) 121

Flange width: 3.31" (34 mm)

Undercarriage Code: 104, 130, 331, 350

320

D5, 955, 951, 561 — 6.91" (175.5 mm)

Low Sprocket Machines

05.Low(246-325) 7/11/03 3:52 PM Page 320
