Caterpillar Custom Track Service Handbook Page 375

Service Handbook

Page of 826

/ 826

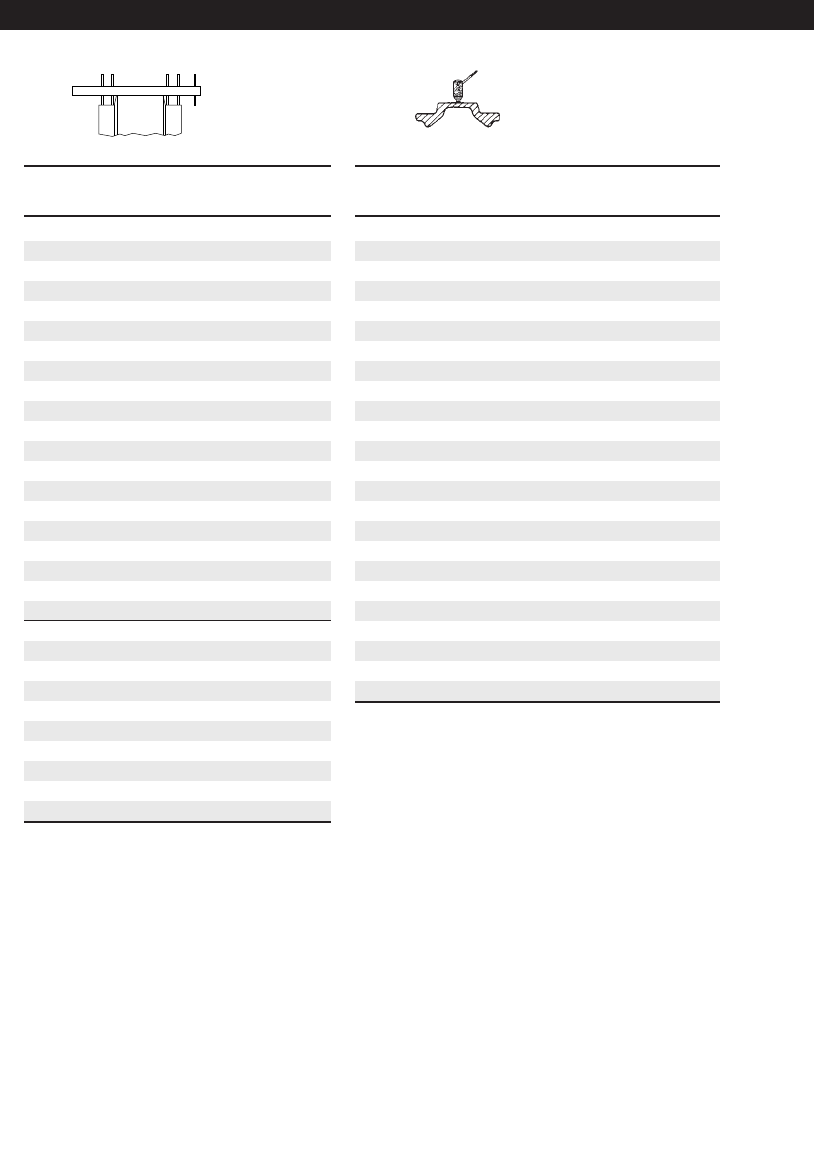

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.94 (24.0) 0 0.48 (12.2) 0.00 (0.0)

0.96 (24.5) 9 0.46 (11.7) 0.02 (0.5)

0.98 (25.0) 18 0.44 (11.2) 0.04 (1.0)

1.00 (25.5) 27 0.42 (10.7) 0.06 (1.5)

1.02 (26.0) 36 0.40 (10.2) 0.08 (2.0)

1.04 (26.5) 45 0.38 (9.7) 0.10 (2.5)

1.06 (27.0) 54 0.36 (9.1) 0.12 (3.0)

1.08 (27.5) 63 0.34 (8.6) 0.14 (3.5)

1.10 (28.0) 72 0.32 (8.1) 0.16 (4.0)

1.12 (28.5) 80 0.30 (7.6) 0.18 (4.5)

1.14 (29.0) 82 0.28 (7.1) 0.20 (5.0)

1.16 (29.5) 84 0.26 (6.6) 0.22 (5.5)

1.18 (30.0) 86 0.24 (6.1) 0.24 (6.0)

1.20 (30.5) 88 0.22 (5.6) 0.26 (6.5)

1.22 (31.0) 90 0.20 (5.1) 0.28 (7.0)

1.24 (31.5) 92 0.18 (4.6) 0.30 (7.5)

1.26 (32.0) 94 0.16 (4.1) 0.32 (8.0)

1.28 (32.5) 96 0.14 (3.6) 0.34 (8.5)

1.30 (33.0) 98 0.12 (3.0) 0.36 (9.0)

1.32 (33.5) 100 0.10 (2.5) 0.38 (9.5)

1.34 (34.0) 102 0.08 (2.0) 0.40 (10.0)

1.36 (34.5) 104 0.06 (1.5) 0.42 (10.5)

1.38 (35.0) 106 0.04 (1.0) 0.44 (11.0)

1.40 (35.5) 108 0.02 (0.5) 0.46 (11.5)

1.42 (36.0) 110

NOTE: Ultrasonic measurement is to determine

1.44 (36.5) 112

flange wear only.

1.46 (37.0) 114

1.48 (37.5) 116

1.50 (38.0) 118

1.52 (38.5) 120

Flange width: 4.75" (120.7 mm)

Undercarriage Code: 175, 390

374

D8, 983 — 9.00" (228.6 mm)

Low Sprocket Machines

07.Low(348-387) 7/14/03 7:30 AM Page 374
