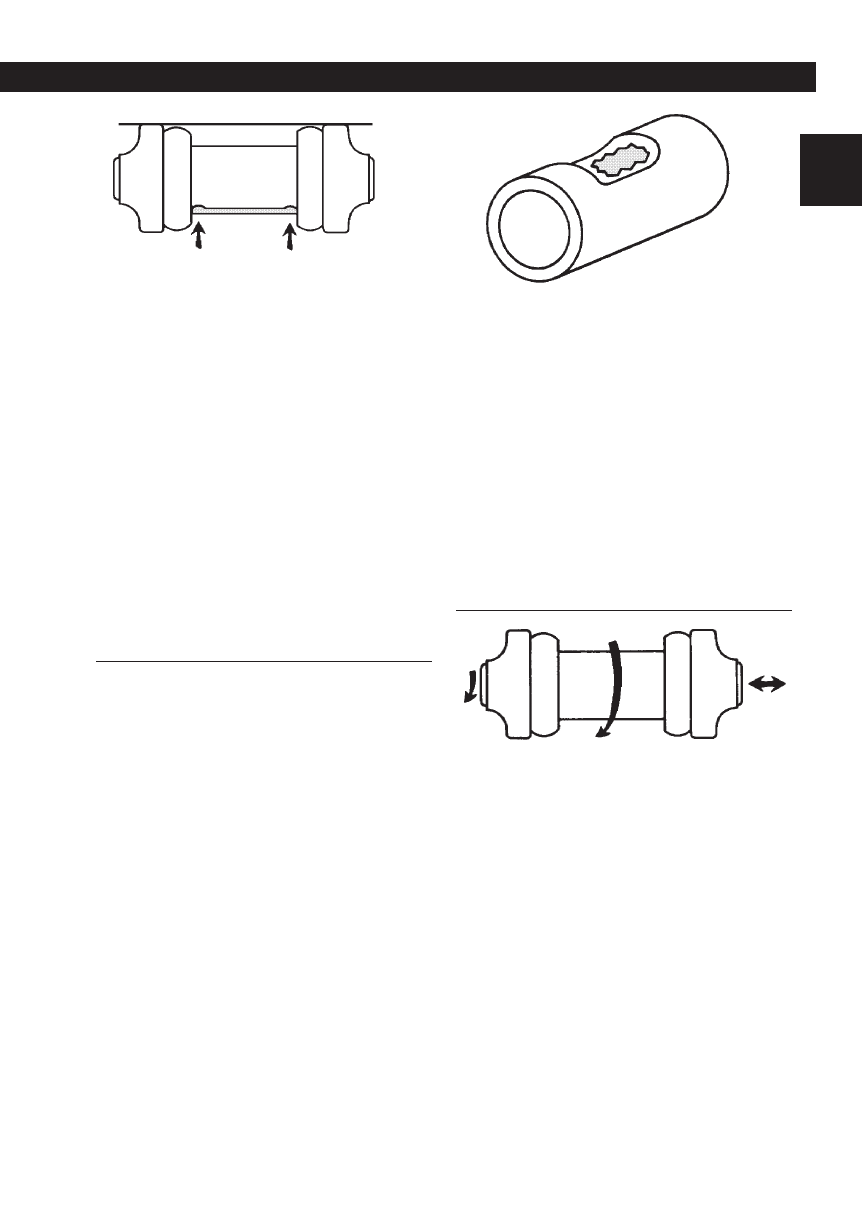

Roller Flange Wear

CAUSES: Track Rollers inner flanges

and/or carrier roller flanges contacting

bushing due to one or more of (a) links (b)

carrier rollers or (c) track rollers being

well past 100 percent worn.

ACCELERATORS: All load variables.

EFFECT: Causes bushing to be prema-

turely worn to limit.

REMEDIES: (1) Turn bushing on or before

100 percent worn in these positions. (2)

Rebuild, swap or replace carrier rollers

shells or roller shells.

NOTE: Refer to pages 66 through 69 for

related discussion on sprocket wear patterns.

Sealed and Lubricated Track

Bushings Structural Problems

The destruction limitation of track bushings

is usually due to (1) wall cracking (breaking

out in the severe case) or (2) loose bushing

retention in the link. In the case of Sealed

and Lubricated Track, either of these will

result in a dry joint (lubricant loss), and in

most cases impair parts reusability.

Bushing Cracks

(Through the wall)

CAUSES: Exceeding wear limit for respec-

tive degree of impact or other criteria.

ACCELERATORS: Same as “Vertical

Position” wear pattern.

EFFECT: (1) Loss of lubricant and result-

ing internal wear. (2) Makes bushing non-

reusable in wet joint and may not be

reusable at all if a piece is broken out of a

dry joint.

REMEDIES: Re-evaluate decision to run

past wear limit.

Bushing (and/or Pin) Loose in Link

CAUSES: Loss of press-fit into link bore.

ACCELERATORS: (1) Severe repeated

impacts yield or crack link bore. (2) Link

bore broached by improper press align-

ment at reassembly time.

EFFECT: (1) Loss of lubricant. (2) Pin,

Bushing and Links not reusable in wet or

dry joint.

REMEDIES: (1) Reduce or eliminate con-

trollable variables which accelerate impact.

(2) Control track press alignment capability.

General Information

SEALED & LUBRICATED TRACK PINS & BUSHINGS
