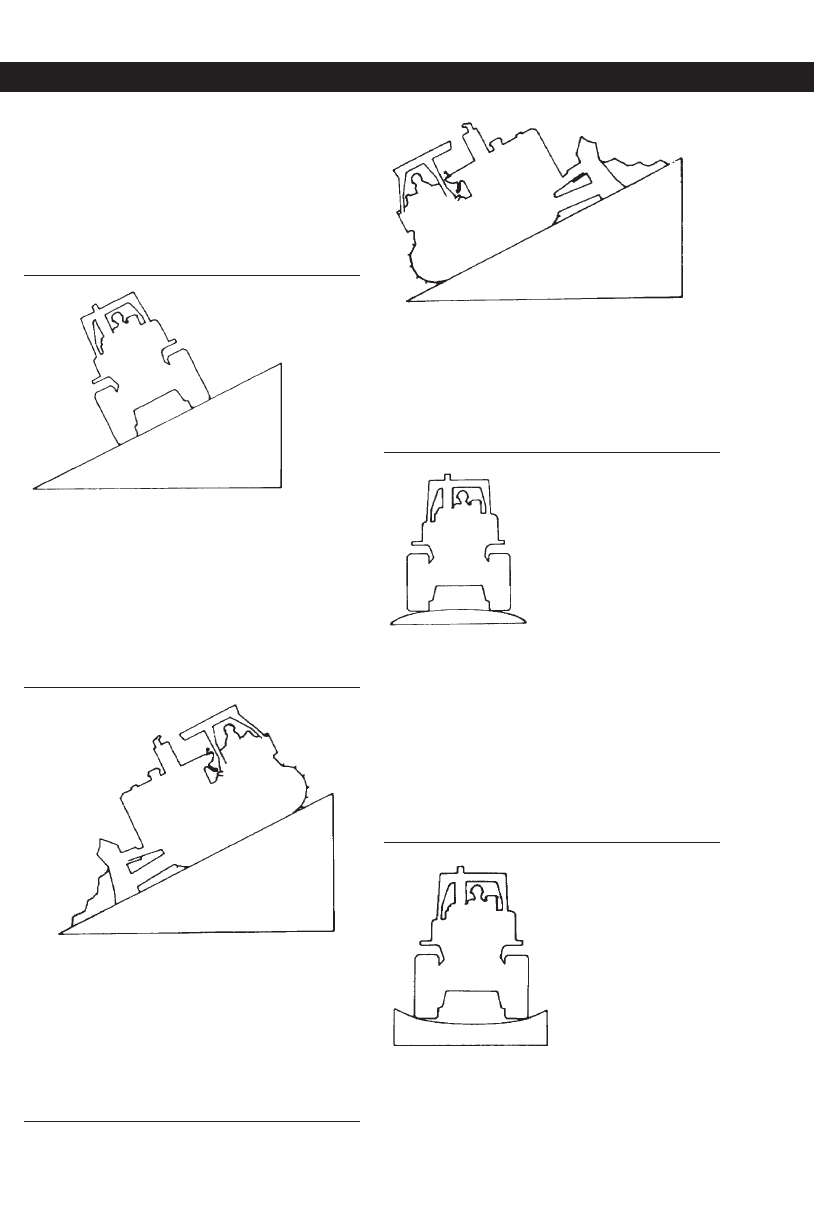

Terrain Conditions

All application effects are influenced by

the terrain on which the work is being

done. The most common effects are

described here regardless of the degree of

impact, or the operating condition.

Working on Sidehill

Shifts weight balance to the downhill side

of the machine; this increases the wear

rate on the components on the downhill

side of the machine. This increases wear

on rail sides, roller and idler flanges,

bushing ends, and grouser ends.

Working Downhill

Shifts weight balance forward causing rel-

atively higher wear rate on front track and

carrier rollers. Due to design of track,

working in forward minimizes rate of

bushing and sprocket wear.

Working Uphill

Shifts weight balance to the rear causing

relatively higher wear on rear rollers and

increasing forward drive side sprocket and

bushing wear.

Working on a Crown

The inner components carry heavier loads.

This results in increased wear on inner

links, rollers, idler treads and grouser ends.

In extreme cases, the inner bushing-to-

sprocket contact surfaces also may experi-

ence greater wear.

Working in a Depression

Causes loads to be carried by outer (or

outboard) components, increasing wear

rates on outer links, roller and idler treads,

grouser ends and the outer bushing-

sprocket contact surfaces in extreme cases.

UNDERFOOT CONDITIONS

General Information
