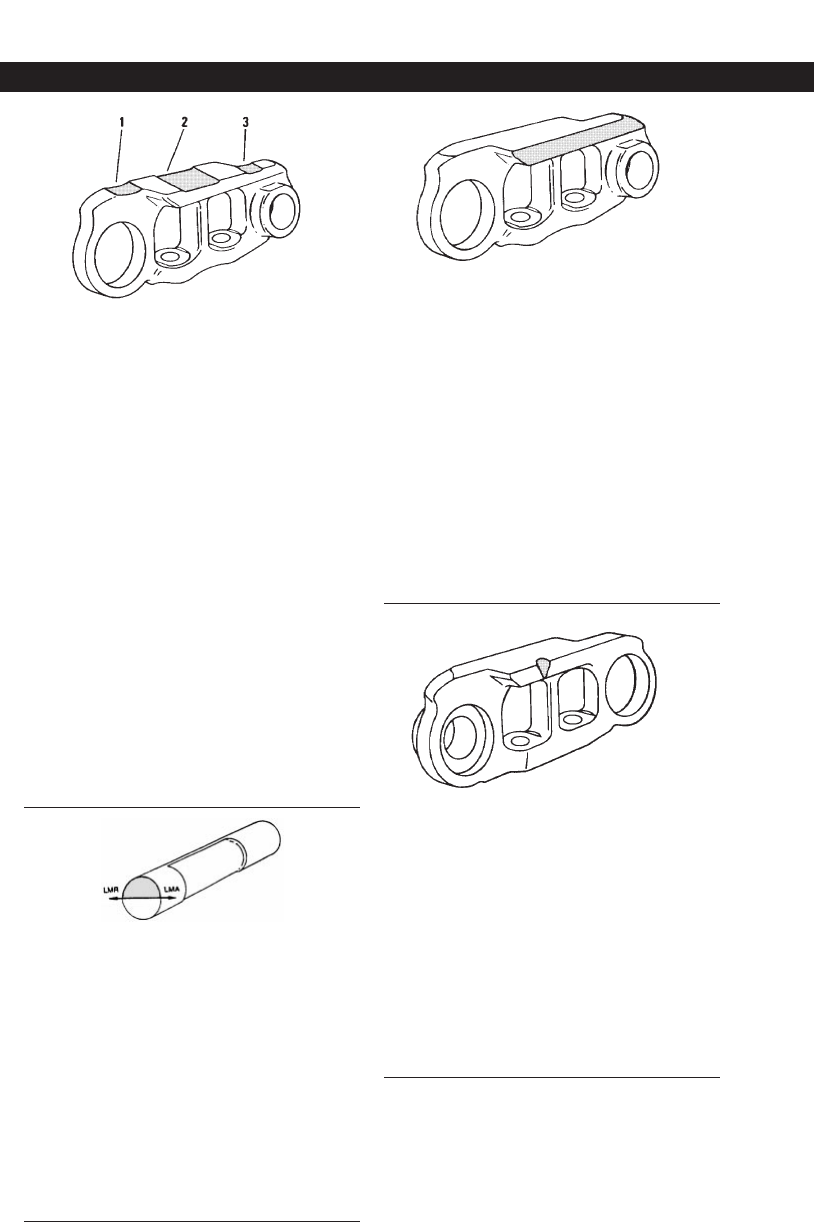

Uneven (Scalloping) Wear

on Rail Top

CAUSES: No. 1 & 3: Faster wear rate due to

reduced contact with rollers at narrower link

overlap area (also see Face Wear on page 31).

CAUSES: No. 2: Sliding wear due to reduced

contact area with idler at center of link rail.

ACCELERATORS: Same as Rail (Top)

Wear above, particularly tight track.

EFFECT: No. 1 & 3: Wear limit over pin

boss reached prematurely.

No. 1, 2 & 3: Reduces rebuildability and

causes vibration in extreme cases. Counter-

weighting machines will reduce wear. A

1/4" difference will cause a ride problem.

REMEDIES: Same as Rail Top Wear

above. Sealed and Lubricated Track will

have less wear in areas No. 1 & 3 due to no

pitch extension. Better balance will reduce

vibration and potential cracking in cab.

Pin Boss Side Wear

CAUSES: Sliding contact with guiding

and/or roller guards plus abrasives (may

be seen at either or both ends of pin —

usually more severe on outboard side).

ACCELERATORS: Uneven terrain and

side hill operation. Too-wide shoes, worn

rolling component flange, misalignment and

snaky track are main controllable variables.

REMEDIES: Eliminate or reduce control-

lable accelerator variables, particularly

snaky track by turning pins and bushings.

Rail Side Wear

(inside and/or outside)

CAUSES: Rolling and sliding contact

with roller and idler flanges.

ACCELERATED BY: Same as “Rail Top

Wear” plus uneven terrain, turning, side

hill operation, misalignment, too wide

shoes and snakiness of unsealed or Sealed

Track.

EFFECT: Reduces rail wear life to service

limit and rebuildability.

REMEDIES: Reduce or eliminate control-

lable accelerators, particularly snaky track,

tight track and too wide shoes.

Rail Inside Gouged

CAUSES: Sprocket tooth tip interfering

due to snaky track and/or misalignment of

track or sprocket (see sprocket wear).

ACCELERATORS: Side hill or uneven

terrain, turning, too wide shoes.

EFFECT: Reduced rebuildability of links

and reusability of sprocket segments if

severe.

REMEDIES: Correct controllable causes

and accelerators.
