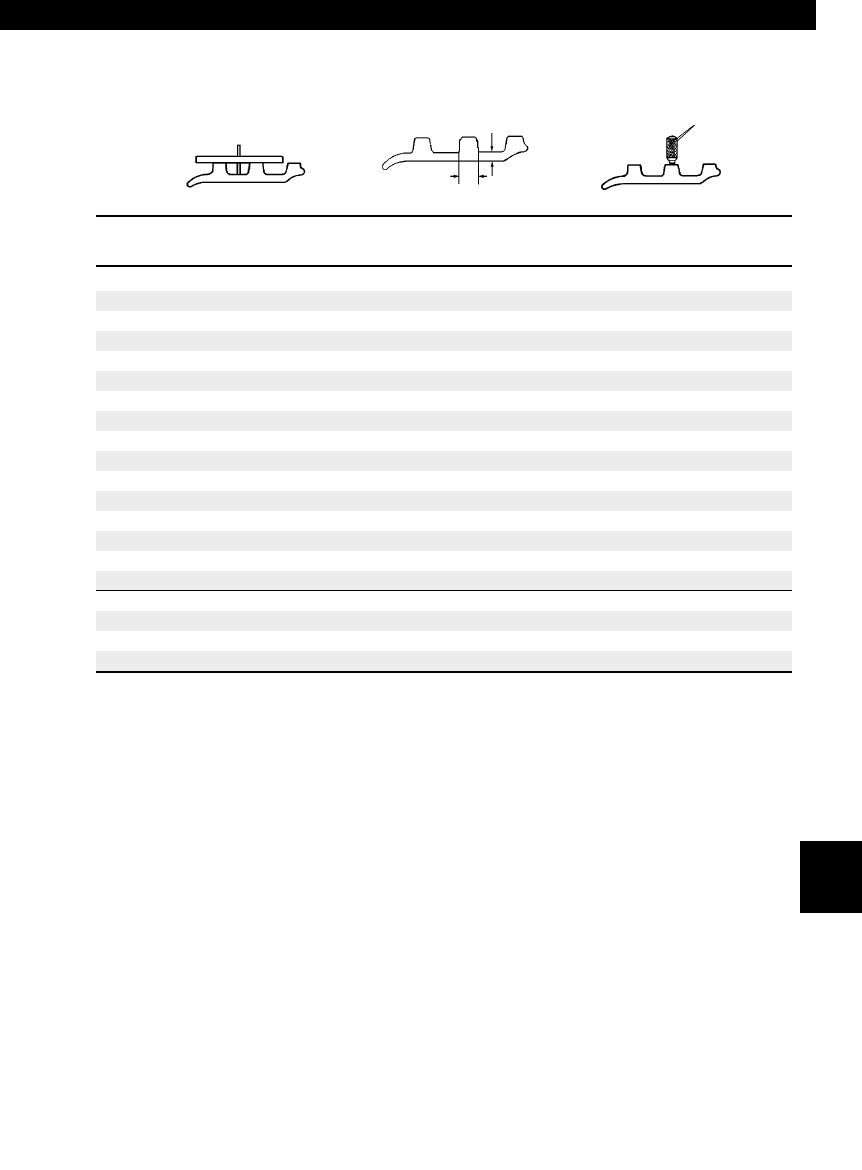

Track Shoes

Triple Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.00 (25.5) 0 1.35 (34.3)

0.95 (24.0) 7 1.30 (33.0)

0.90 (23.0) 14 1.25 (31.8)

0.85 (21.5) 21 1.20 (30.5)

0.80 (20.5) 28 1.15 (29.2)

0.75 (19.0) 35 1.10 (27.9)

0.70 (18.0) 42 1.05 (26.7)

0.65 (16.5) 49 1.00 (25.4)

0.60 (15.0) 56 0.95 (24.1)

0.55 (14.0) 63 0.90 (22.9)

0.50 (12.5) 70 0.85 (21.6)

0.45 (11.5) 76 0.80 (20.3)

0.40 (10.0) 82 0.75 (19.1)

0.35 (9.0) 88 0.70 (17.8)

0.30 (7.5) 94 0.65 (16.5)

0.25 (6.5) 100 0.60 (15.2)

0.20 (5.0) 106 0.55 (14.0)

0.15 (4.0) 112 0.50 (12.7)

0.10 (2.5) 118 0.45 (11.4)

0.05 (1.5) 124 0.40 (10.2)

Undercarriage Code: 560

739

EL180, E180 — 6.91" (175.5 mm)

Excavators

.35" (9 mm)

.75" (19 mm)
