Caterpillar Custom Track Service Handbook Page 777

Service Handbook

Page of 826

/ 826

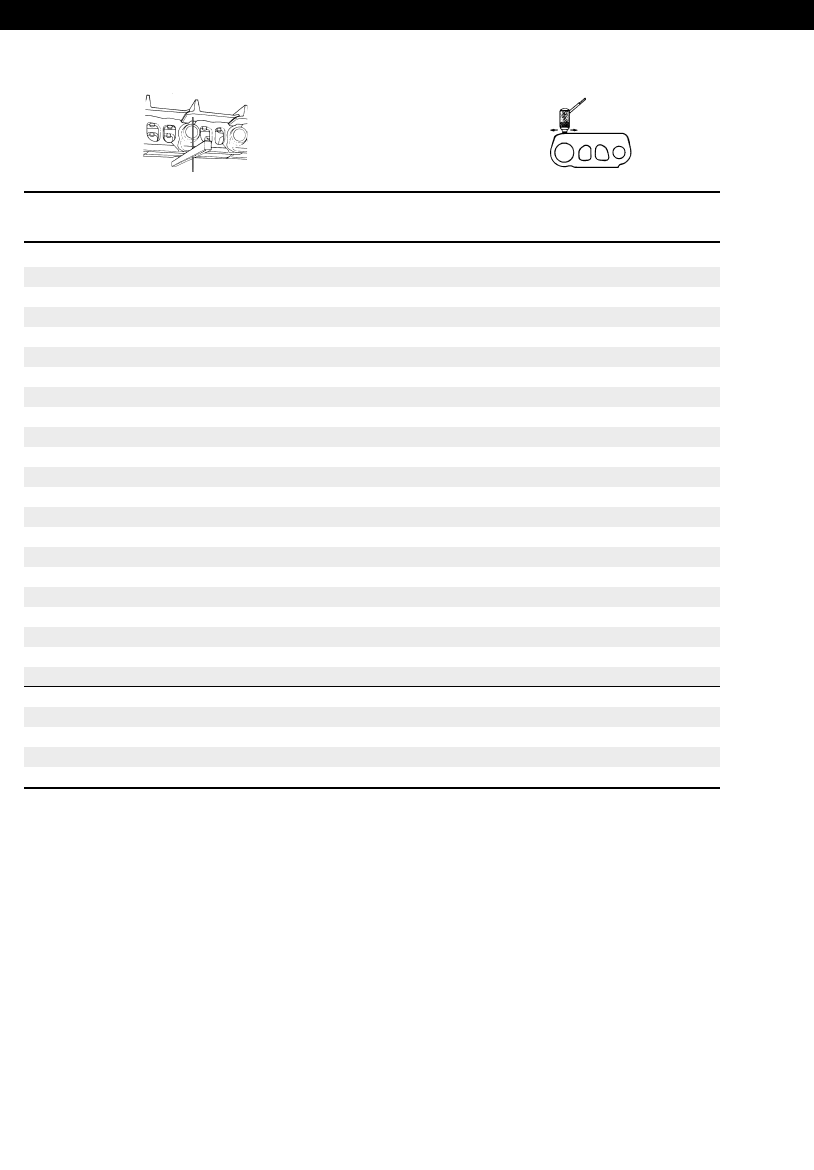

Track Links

969944 & 46

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

5.08 (129.0) 0 1.35 (34.3)

5.06 (128.5) 5 1.33 (33.8)

5.04 (128.0) 10 1.31 (33.3)

5.02 (127.5) 15 1.29 (32.8)

5.00 (127.0) 20 1.27 (32.3)

4.98 (126.5) 25 1.25 (31.8)

4.96 (126.0) 30 1.23 (31.2)

4.94 (125.5) 35 1.21 (30.7)

4.92 (125.0) 40 1.19 (30.2)

4.90 (124.5) 45 1.17 (29.7)

4.88 (124.0) 50 1.15 (29.2)

4.86 (123.5) 55 1.13 (28.7)

4.84 (123.0) 60 1.11 (28.2)

4.82 (122.5) 65 1.09 (27.7)

4.80 (122.0) 70 1.07 (27.2)

4.78 (121.5) 75 1.05 (26.7)

4.76 (121.0) 80 1.03 (26.2)

4.74 (120.5) 84 1.01 (25.7)

4.72 (120.0) 88 0.99 (25.1)

4.70 (119.5) 92 0.97 (24.6)

4.68 (119.0) 96 0.95 (24.1)

4.66 (118.5) 100 0.93 (23.6)

4.64 (118.0) 104 0.91 (23.1)

4.62 (117.5) 108 0.89 (22.6)

4.60 (117.0) 112 0.87 (22.1)

4.58 (116.5) 116 0.85 (21.6)

4.56 (116.0) 120 0.83 (21.1)

Undercarriage Code: 625

776

E450 — 8.50" (215.9 mm)

Excavators

12.Exc.(710-791) 7/14/03 8:34 AM Page 776
