Caterpillar Custom Track Service Handbook Page 766

Service Handbook

Page of 826

/ 826

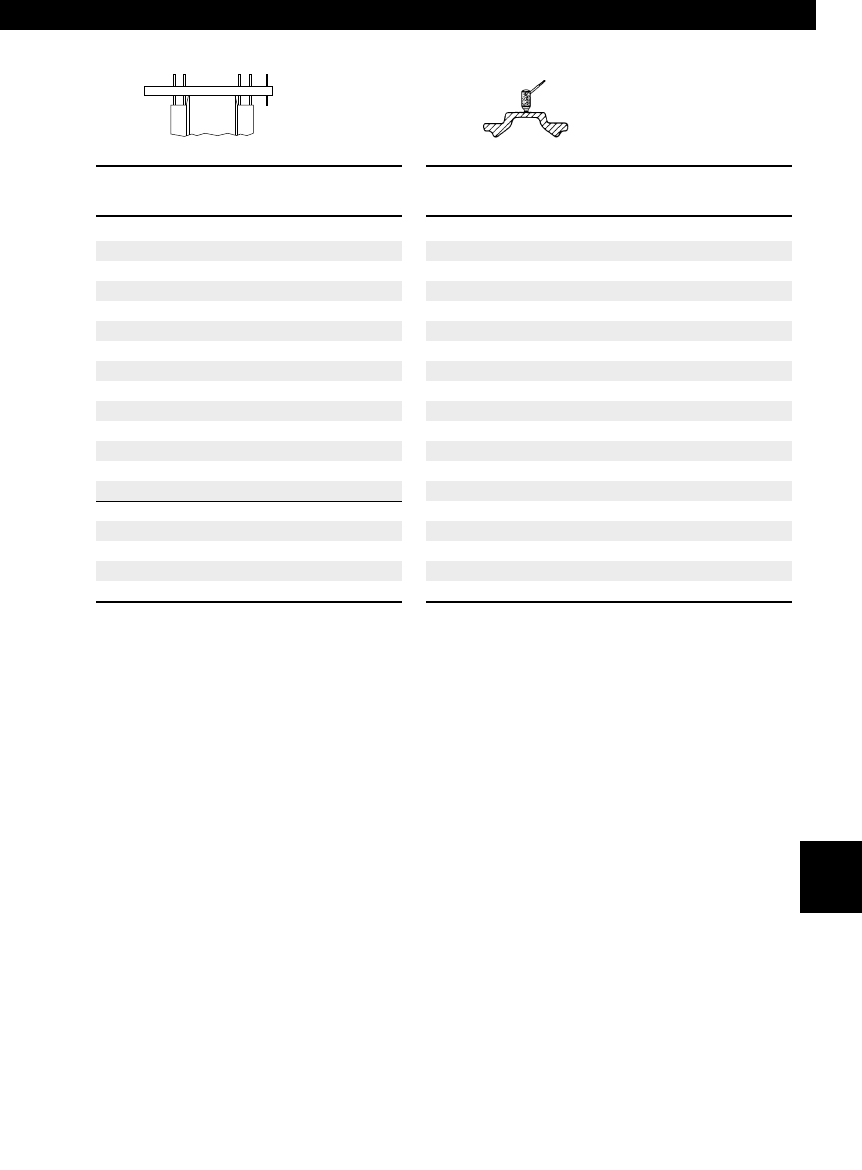

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.88 (22.5) 0 0.82 (20.8) 0.00 (0.0)

0.90 (23.0) 12 0.80 (20.3) 0.02 (0.5)

0.92 (23.5) 24 0.78 (19.8) 0.04 (1.0)

0.94 (24.0) 36 0.76 (19.3) 0.06 (1.5)

0.96 (24.5) 48 0.74 (18.8) 0.08 (2.0)

0.98 (25.0) 60 0.72 (18.3) 0.10 (2.5)

1.00 (25.5) 72 0.70 (17.8) 0.12 (3.0)

1.02 (26.0) 76 0.68 (17.3) 0.14 (3.5)

1.04 (26.5) 80 0.66 (16.8) 0.16 (4.0)

1.06 (27.0) 84 0.64 (16.3) 0.18 (4.5)

1.08 (27.5) 88 0.62 (15.7) 0.20 (5.0)

1.10 (28.0) 92 0.60 (15.2) 0.22 (5.5)

1.12 (28.5) 96 0.58 (14.7) 0.24 (6.0)

1.14 (29.0) 100 0.56 (14.2) 0.26 (6.5)

1.16 (29.5) 104 0.54 (13.7) 0.28 (7.0)

1.18 (30.0) 108 0.52 (13.2) 0.30 (7.5)

1.20 (30.5) 112 0.50 (12.7) 0.32 (8.0)

1.22 (31.0) 116 0.48 (12.2) 0.34 (8.5)

1.24 (31.5) 120 0.46 (11.7) 0.36 (9.0)

Flange width: 2.69" (68.3 mm) NOTE: Ultrasonic measurement is to determine flange

wear only.

Undercarriage Code: 607, 608

765

E300B, EL300B, EL300 — 8.00" (203.2 mm)

Excavators

12.Exc.(710-791) 7/14/03 8:34 AM Page 765
