Caterpillar Custom Track Service Handbook Page 235

Service Handbook

Page of 826

/ 826

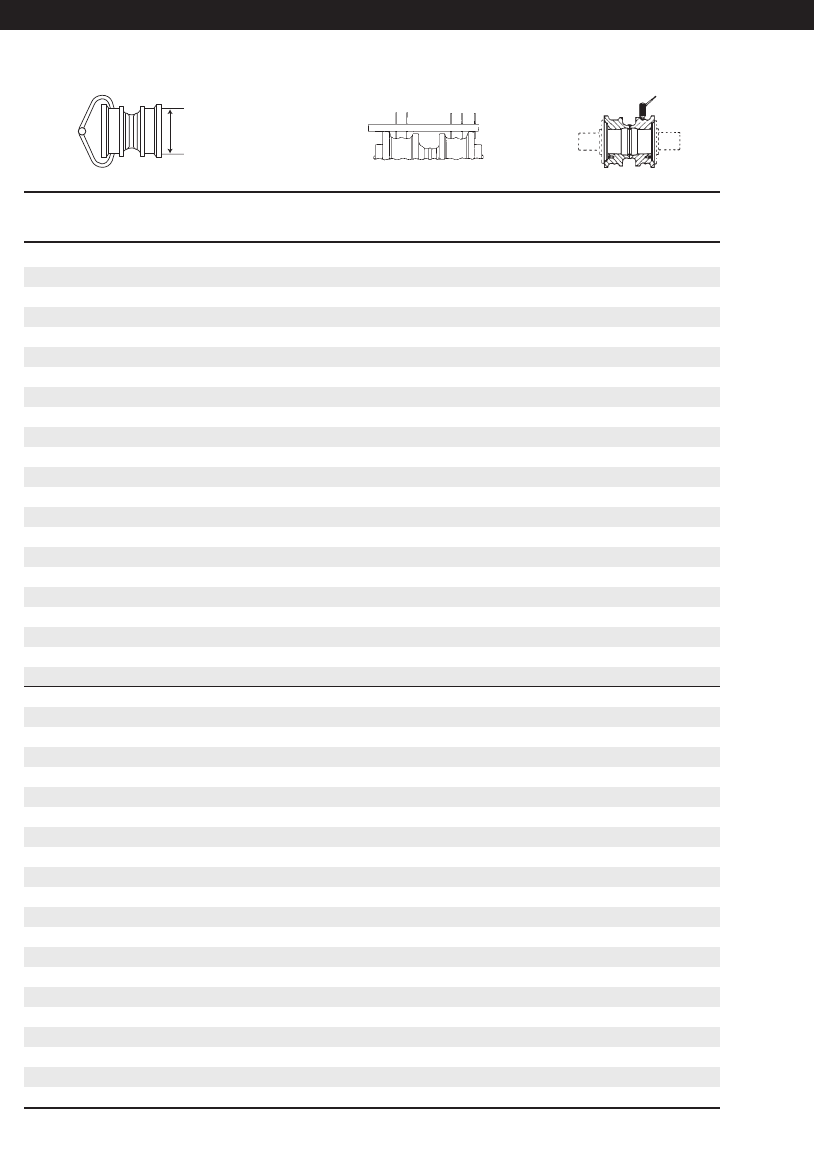

Track Rollers

Double Flange

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

10.90 (277.0) 0 0.73 (18.5) 2.64 (67.1)

10.82 (275.0) 6 0.77 (19.5) 2.60 (66.0)

10.74 (273.0) 12 0.81 (20.5) 2.56 (65.0)

10.66 (271.0) 18 0.85 (21.5) 2.52 (64.0)

10.58 (268.5) 24 0.89 (22.5) 2.48 (63.0)

10.50 (266.5) 30 0.93 (23.5) 2.44 (62.0)

10.42 (264.5) 36 0.97 (24.5) 2.40 (61.0)

10.34 (262.5) 42 1.01 (25.5) 2.36 (59.9)

10.26 (260.5) 48 1.05 (26.5) 2.32 (58.9)

10.18 (258.5) 52 1.09 (27.5) 2.28 (57.9)

10.10 (256.5) 56 1.13 (28.5) 2.24 (56.9)

10.02 (254.5) 60 1.17 (29.5) 2.20 (55.9)

9.94 (252.5) 64 1.21 (30.5) 2.16 (54.9)

9.86 (250.5) 68 1.25 (32.0) 2.12 (53.8)

9.78 (248.5) 72 1.29 (33.0) 2.08 (52.8)

9.70 (246.5) 76 1.33 (34.0) 2.04 (51.8)

9.62 (244.5) 80 1.37 (35.0) 2.00 (50.8)

9.54 (242.5) 84 1.41 (36.0) 1.96 (49.8)

9.46 (240.5) 88 1.45 (37.0) 1.92 (48.8)

9.38 (238.5) 92 1.49 (38.0) 1.88 (47.8)

9.30 (236.0) 96 1.53 (39.0) 1.84 (46.7)

9.22 (234.0) 100 1.57 (40.0) 1.80 (45.7)

9.14 (232.0) 104 1.61 (41.0) 1.76 (44.7)

9.06 (230.0) 108 1.65 (42.0) 1.72 (43.7)

8.98 (228.0) 112 1.69 (43.0) 1.68 (42.7)

8.90 (226.0) 116 1.73 (44.0) 1.64 (41.7)

8.82 (224.0) 120 1.77 (45.0) 1.60 (40.6)

8.74 (222.0) 124 1.81 (46.0) 1.56 (39.6)

8.66 (220.0) 128 1.85 (47.0) 1.52 (38.6)

8.58 (218.0) 132 1.89 (48.0) 1.48 (37.6)

8.50 (216.0) 136 1.93 (49.0) 1.44 (36.6)

8.42 (214.0) 140 1.97 (50.0) 1.40 (35.6)

8.34 (212.0) 144 2.01 (51.0) 1.36 (34.5)

8.26 (210.0) 148 2.05 (52.0) 1.32 (33.5)

8.18 (208.0) 152 2.09 (53.0) 1.28 (32.5)

8.10 (205.5) 156 2.13 (54.0) 1.24 (31.5)

8.02 (203.5) 160 2.17 (55.0) 1.20 (30.5)

7.94 (201.5) 164 2.21 (56.0) 1.16 (29.5)

7.86 (199.5) 168 2.25 (57.0) 1.12 (28.4)

7.78 (197.5) 172 2.29 (58.0) 1.08 (27.4)

7.70 (195.5) 176 2.33 (59.0) 1.04 (26.4)

7.62 (193.5) 180 2.37 (60.0) 1.00 (25.4)

7.54 (191.5) 184 2.41 (61.0) 0.96 (24.4)

Flange diameter is 12.36" (314 mm)

Undercarriage Code: 207

234

D10 — 10.25" (260.4 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 234
