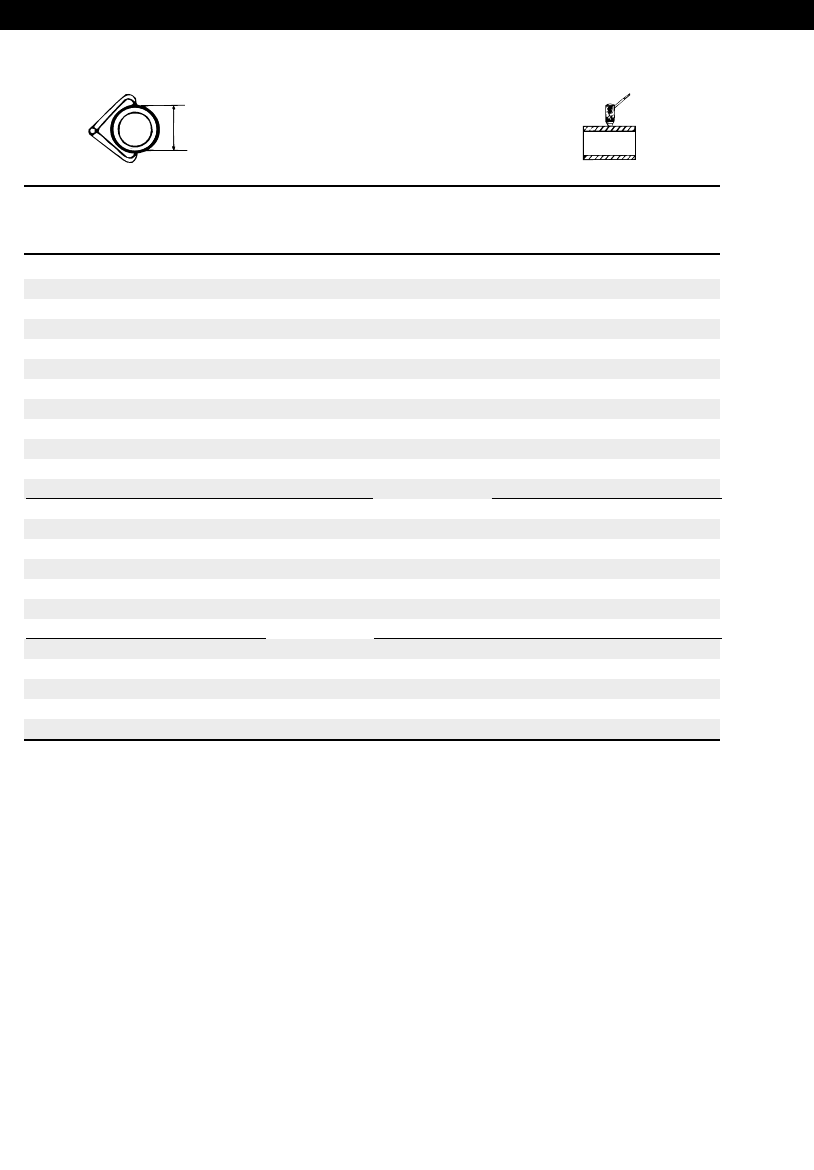

Bushings for Sealed Track

External Wear

Allowable Wear

Caliper Lesser Greater Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

2.32 (58.9) 0 0 0.40 (10.2)

2.31 (58.7) 10 7 0.39 (9.9)

2.30 (58.4) 20 14 0.38 (9.7)

2.29 (58.2) 30 21 0.37 (9.4)

2.28 (57.9) 40 28 0.36 (9.1)

2.27 (57.7) 50 35 0.35 (8.9)

2.26 (57.4) 60 42 0.34 (8.6)

2.25 (57.2) 70 49 0.33 (8.4)

2.24 (56.9) 80 56 0.32 (8.1)

2.23 (56.6) 90 63 0.31 (7.9)

2.22 (56.4) 95 68 0.30 (7.6)

2.21 (56.1) 100 72 0.29 (7.4)

2.20 (55.9) 105 76 0.28 (7.1)

2.19 (55.6) 110 80 0.27 (6.9)

2.18 (55.4) 115 84 0.26 (6.6)

2.17 (55.1) 120 88 0.25 (6.4)

2.16 (54.9) 92 0.24 (6.1)

2.15 (54.6) 96 0.23 (5.8)

2.14 (54.4) 100 0.22 (5.6)

2.13 (54.1) 104 0.21 (5.3)

2.12 (53.8) 108 0.20 (5.1)

2.11 (53.6) 112 0.19 (4.8)

2.10 (53.3) 116 0.18 (4.6)

2.09 (53.1) 120 0.17 (4.3)

Undercarriage Code: 605, 606

770

E300 — 7.50" (190 mm)

Excavators

12.Exc.(710-791) 7/14/03 8:34 AM Page 770
