Caterpillar Custom Track Service Handbook Page 268

Service Handbook

Page of 826

/ 826

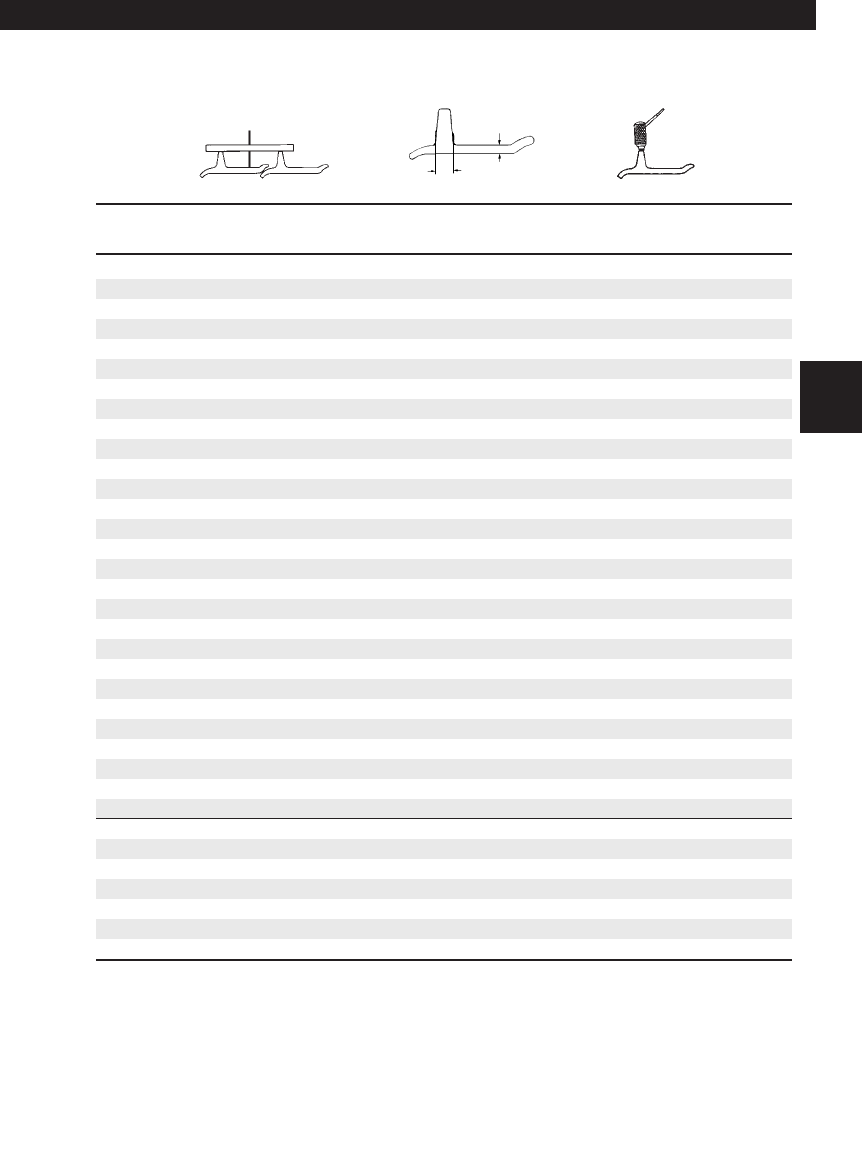

Track Shoes

Extreme Service

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.10 (53.5) 0 2.50 (63.5)

2.05 (52.0) 4 2.45 (62.2)

2.00 (51.0) 8 2.40 (61.0)

1.95 (49.5) 12 2.35 (59.7)

1.90 (48.5) 16 2.30 (58.4)

1.85 (47.0) 20 2.25 (57.2)

1.80 (45.5) 24 2.20 (55.9)

1.75 (44.5) 28 2.15 (54.6)

1.70 (43.0) 32 2.10 (53.3)

1.65 (42.0) 36 2.05 (52.1)

1.60 (40.5) 40 2.00 (50.8)

1.55 (39.5) 44 1.95 (49.5)

1.50 (38.0) 48 1.90 (48.3)

1.45 (37.0) 52 1.85 (47.0)

1.40 (35.5) 56 1.80 (45.7)

1.35 (34.5) 60 1.75 (44.5)

1.30 (33.0) 64 1.70 (43.2)

1.25 (32.0) 68 1.65 (41.9)

1.20 (30.5) 72 1.60 (40.6)

1.15 (29.0) 76 1.55 (39.4)

1.10 (28.0) 79 1.50 (38.1)

1.05 (26.5) 82 1.45 (36.8)

1.00 (25.5) 85 1.40 (35.6)

0.95 (24.0) 88 1.35 (34.3)

0.90 (23.0) 91 1.30 (33.0)

0.85 (21.5) 94 1.25 (31.8)

0.80 (20.5) 97 1.20 (30.5)

0.75 (19.0) 100 1.15 (29.2)

0.70 (18.0) 103 1.10 (27.9)

0.65 (16.5) 106 1.05 (26.7)

0.60 (15.0) 109 1.00 (25.4)

0.55 (14.0) 112 0.95 (24.1)

0.50 (12.5) 115 0.90 (22.9)

0.45 (11.5) 118 0.85 (21.6)

0.40 (10.0) 121 0.80 (20.3)

Undercarriage Code: 102, 1021, 119, 1191, 302, 3021, 303, 3031, 306, 3061

267

D3, 931, 933, 935, D4B, D4C — 6.125" (155.6 mm)

Low Sprocket Machines

.39" (10 mm)

.83" (21 mm)
