Idlers

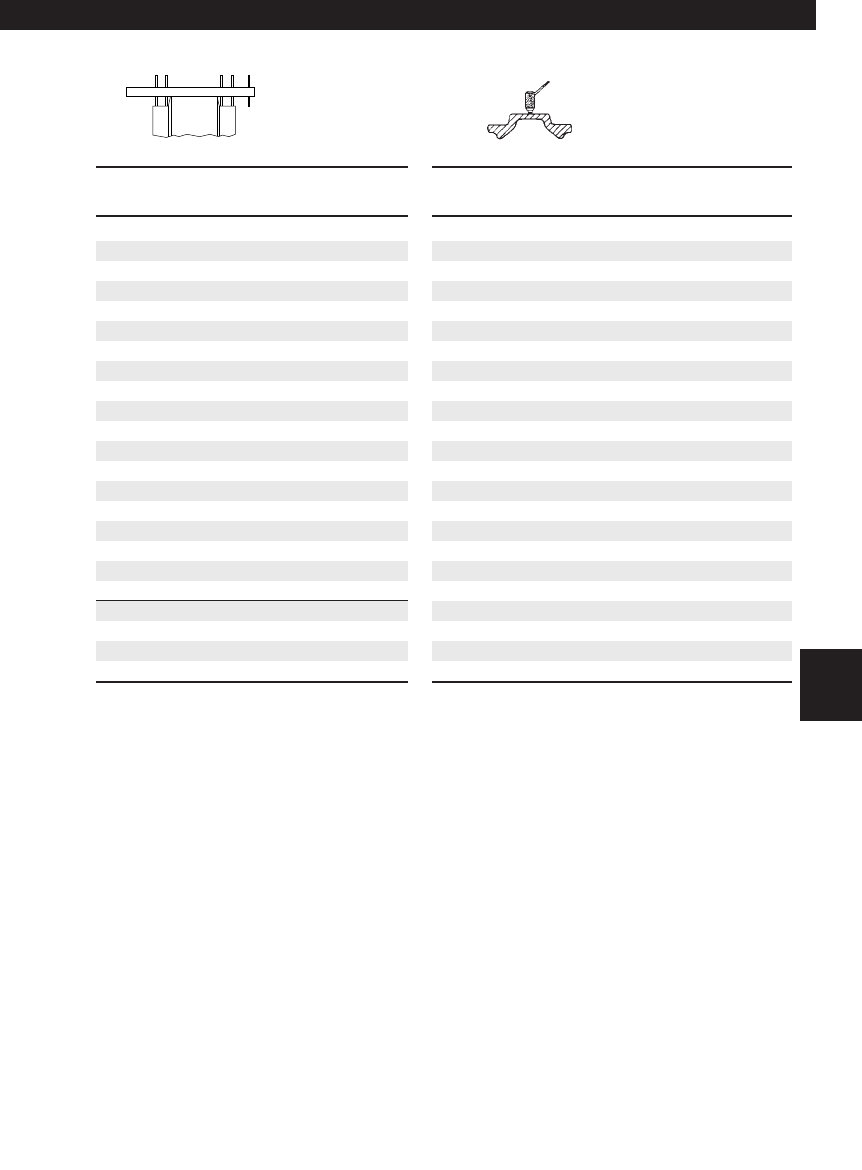

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.78 (20.0) 0 0.48 (12.2) 0.00 (0.0)

0.80 (20.5) 7 0.46 (11.7) 0.02 (0.5)

0.82 (21.0) 14 0.44 (11.2) 0.04 (1.0)

0.84 (21.5) 21 0.42 (10.7) 0.06 (1.5)

0.86 (22.0) 28 0.40 (10.2) 0.08 (2.0)

0.88 (22.5) 35 0.38 (9.7) 0.10 (2.5)

0.90 (23.0) 40 0.36 (9.1) 0.12 (3.0)

0.92 (23.5) 45 0.34 (8.6) 0.14 (3.5)

0.94 (24.0) 50 0.32 (8.1) 0.16 (4.0)

0.96 (24.5) 55 0.30 (7.6) 0.18 (4.5)

0.98 (25.0) 60 0.28 (7.1) 0.20 (5.0)

1.00 (25.5) 65 0.26 (6.6) 0.22 (5.5)

1.02 (26.0) 70 0.24 (6.1) 0.24 (6.0)

1.04 (26.5) 75 0.22 (5.6) 0.26 (6.5)

1.06 (27.0) 80 0.20 (5.1) 0.28 (7.0)

1.08 (27.5) 85 0.18 (4.6) 0.30 (7.5)

1.10 (28.0) 90 0.16 (4.1) 0.32 (8.0)

1.12 (28.5) 95 0.14 (3.6) 0.34 (8.5)

1.14 (29.0) 100 0.12 (3.0) 0.36 (9.0)

1.16 (29.5) 105 0.10 (2.5) 0.38 (9.5)

1.18 (30.0) 110 0.08 (2.0) 0.40 (10.0)

1.20 (30.5) 115 0.06 (1.5) 0.42 (10.5)

1.22 (31.0) 120 0.04 (1.0) 0.44 (11.0)

Undercarriage Code: 609, 6091

553

330 — 8.50" (215.9 mm)

Excavators

Flange width: 4.02" (102 mm) NOTE: Ultrasonic measurement is to determine flange

wear only. Use ultrasonic only on fabricated idlers.

10.Exc.(488-607) 7/14/03 7:32 AM Page 553
