Caterpillar Custom Track Service Handbook Page 545

Service Handbook

Page of 826

/ 826

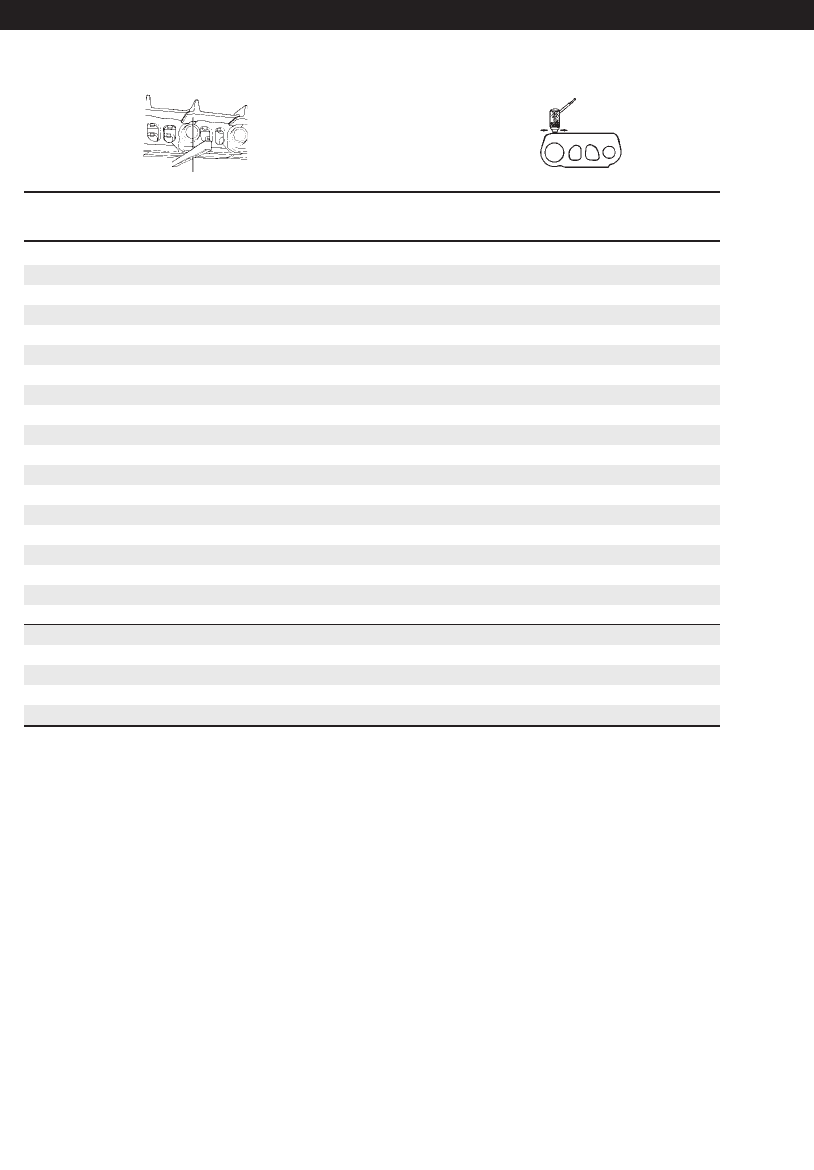

Track Links

6Y2589 & 90

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

4.88 (124.0) 0 1.36 (34.5)

4.86 (123.5) 7 1.34 (34.0)

4.84 (123.0) 14 1.32 (33.5)

4.82 (122.5) 21 1.30 (33.0)

4.80 (122.0) 28 1.28 (32.5)

4.78 (121.5) 35 1.26 (32.0)

4.76 (121.0) 42 1.24 (31.5)

4.74 (120.5) 49 1.22 (31.0)

4.72 (120.0) 56 1.20 (30.5)

4.70 (119.5) 63 1.18 (30.0)

4.68 (119.0) 68 1.16 (29.5)

4.66 (118.5) 72 1.14 (29.0)

4.64 (118.0) 76 1.12 (28.4)

4.62 (117.5) 80 1.10 (27.9)

4.60 (117.0) 84 1.08 (27.4)

4.58 (116.5) 88 1.06 (26.9)

4.56 (116.0) 92 1.04 (26.4)

4.54 (115.5) 96 1.02 (25.9)

4.52 (115.0) 100 1.00 (25.4)

4.50 (114.5) 104 0.98 (24.9)

4.48 (114.0) 108 0.96 (24.4)

4.46 (113.5) 112 0.94 (23.9)

4.44 (113.0) 116 0.92 (23.4)

4.42 (112.5) 120 0.90 (22.9)

Undercarriage Code: 609, 6091

544

330 — 8.50" (215.9 mm)

Excavators

10.Exc.(488-607) 7/14/03 7:32 AM Page 544
