Caterpillar Custom Track Service Handbook Page 187

Service Handbook

Page of 826

/ 826

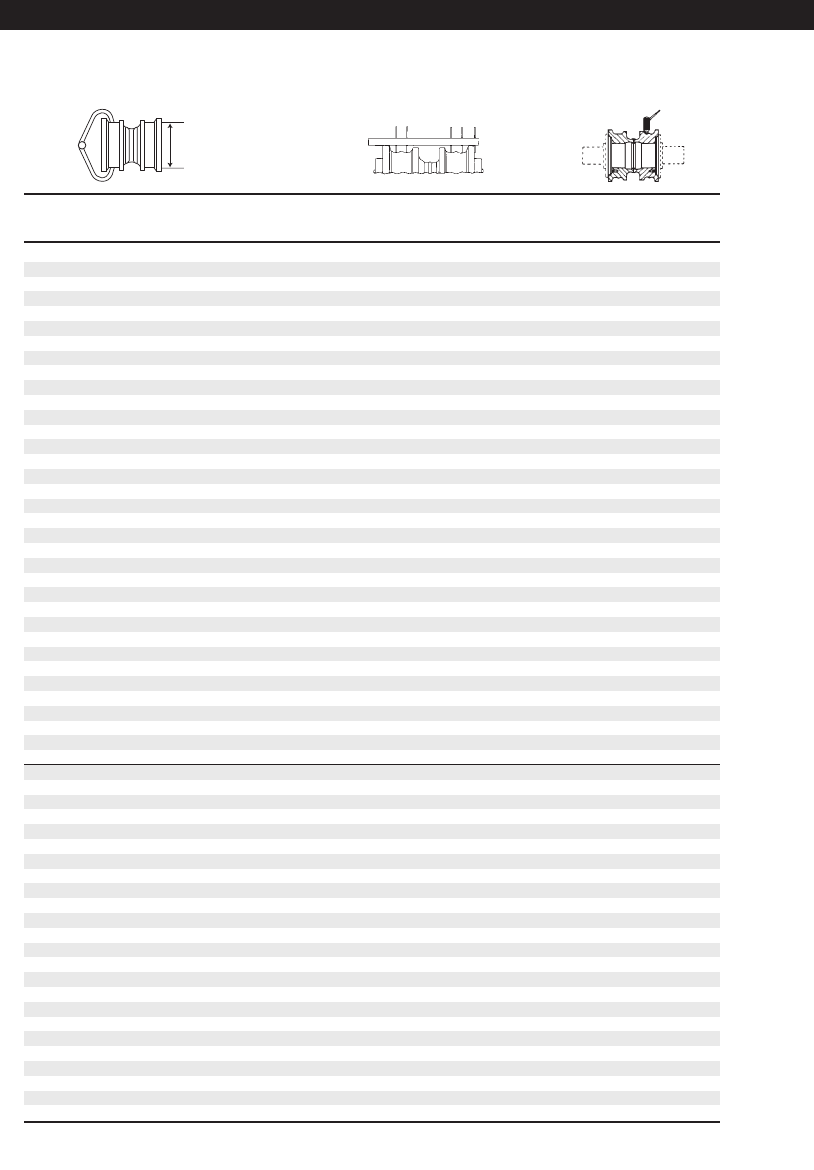

Track Rollers with Retainers

Use with Sealed & Lubricated Track

9G2417 & 18 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.74 (222.0) 0 0.65 (16.5) 1.99 (50.5)

8.70 (221.0) 4 0.67 (17.0) 1.97 (50.0)

8.66 (220.0) 8 0.69 (17.5) 1.95 (49.5)

8.62 (219.0) 12 0.71 (18.0) 1.93 (49.0)

8.58 (218.0) 16 0.73 (18.5) 1.91 (48.5)

8.54 (217.0) 20 0.75 (19.0) 1.89 (48.0)

8.50 (216.0) 24 0.77 (19.5) 1.87 (47.5)

8.46 (215.0) 28 0.79 (20.0) 1.85 (47.0)

8.42 (214.0) 32 0.81 (20.5) 1.83 (46.5)

8.38 (213.0) 36 0.83 (21.0) 1.81 (46.0)

8.34 (212.0) 40 0.85 (21.5) 1.79 (45.5)

8.30 (211.0) 44 0.87 (22.0) 1.77 (45.0)

8.26 (210.0) 48 0.89 (22.5) 1.75 (44.5)

8.22 (209.0) 52 0.91 (23.0) 1.73 (43.9)

8.18 (208.0) 56 0.93 (23.5) 1.71 (43.4)

8.14 (207.0) 60 0.95 (24.0) 1.69 (42.9)

8.10 (205.5) 64 0.97 (24.5) 1.67 (42.4)

8.06 (204.5) 66 0.99 (25.0) 1.65 (41.9)

8.02 (203.5) 68 1.01 (25.5) 1.63 (41.4)

7.98 (202.5) 70 1.03 (26.0) 1.61 (40.9)

7.94 (201.5) 72 1.05 (26.5) 1.59 (40.4)

7.90 (200.5) 74 1.07 (27.0) 1.57 (39.9)

7.86 (199.5) 76 1.09 (27.5) 1.55 (39.4)

7.82 (198.5) 78 1.11 (28.0) 1.53 (38.9)

7.78 (197.5) 80 1.13 (28.5) 1.51 (38.4)

7.74 (196.5) 82 1.15 (29.0) 1.49 (37.8)

7.70 (195.5) 84 1.17 (29.5) 1.47 (37.3)

7.66 (194.5) 86 1.19 (30.0) 1.45 (36.8)

7.62 (193.5) 88 1.21 (30.5) 1.43 (36.3)

7.58 (192.5) 90 1.23 (31.0) 1.41 (35.8)

7.54 (191.5) 92 1.25 (32.0) 1.39 (35.3)

7.50 (190.5) 94 1.27 (32.5) 1.37 (34.8)

7.46 (189.5) 96 1.29 (33.0) 1.35 (34.3)

7.42 (188.5) 98 1.31 (33.5) 1.33 (33.8)

7.38 (187.5) 100 1.33 (34.0) 1.31 (33.3)

7.34 (186.5) 102 1.35 (34.5) 1.29 (32.8)

7.30 (185.5) 104 1.37 (35.0) 1.27 (32.3)

7.26 (184.5) 106 1.39 (35.5) 1.25 (31.8)

7.22 (183.5) 108 1.41 (36.0) 1.23 (31.2)

7.18 (182.5) 110 1.43 (36.5) 1.21 (30.7)

7.14 (181.5) 112 1.45 (37.0) 1.19 (30.2)

7.10 (180.5) 114 1.47 (37.5) 1.17 (29.7)

7.06 (179.5) 116 1.49 (38.0) 1.15 (29.2)

7.02 (178.5) 118 1.51 (38.5) 1.13 (28.7)

6.98 (177.5) 120 1.53 (39.0) 1.11 (28.2)

6.94 (176.5) 122 1.55 (39.5) 1.09 (27.7)

6.90 (175.5) 124 1.57 (40.0) 1.07 (27.2)

6.86 (174.0) 126 1.59 (40.5) 1.05 (26.7)

6.82 (173.0) 128 1.61 (41.0) 1.03 (26.2)

6.78 (172.0) 130 1.63 (41.5) 1.01 (25.7)

6.74 (171.0) 132 1.65 (42.0) 0.99 (25.1)

6.70 (170.0) 134 1.67 (42.5) 0.97 (24.6)

6.66 (169.0) 136 1.69 (43.0) 0.95 (24.1)

6.62 (168.0) 138 1.71 (43.5) 0.93 (23.6)

6.58 (167.0) 140 1.73 (44.0) 0.91 (23.1)

6.54 (166.0) 142 1.75 (44.5) 0.89 (22.6)

6.50 (165.0) 144 1.77 (45.0) 0.87 (22.1)

6.46 (164.0) 146 1.79 (45.5) 0.85 (21.6)

6.42 (163.0) 148 1.81 (46.0) 0.83 (21.1)

Flange diameter is 10.04" (255 mm)

Undercarriage Code: 164

186

D7H, D7R, 572R — 8.50" (215.9 mm)

Elevated Sprocket Machines
