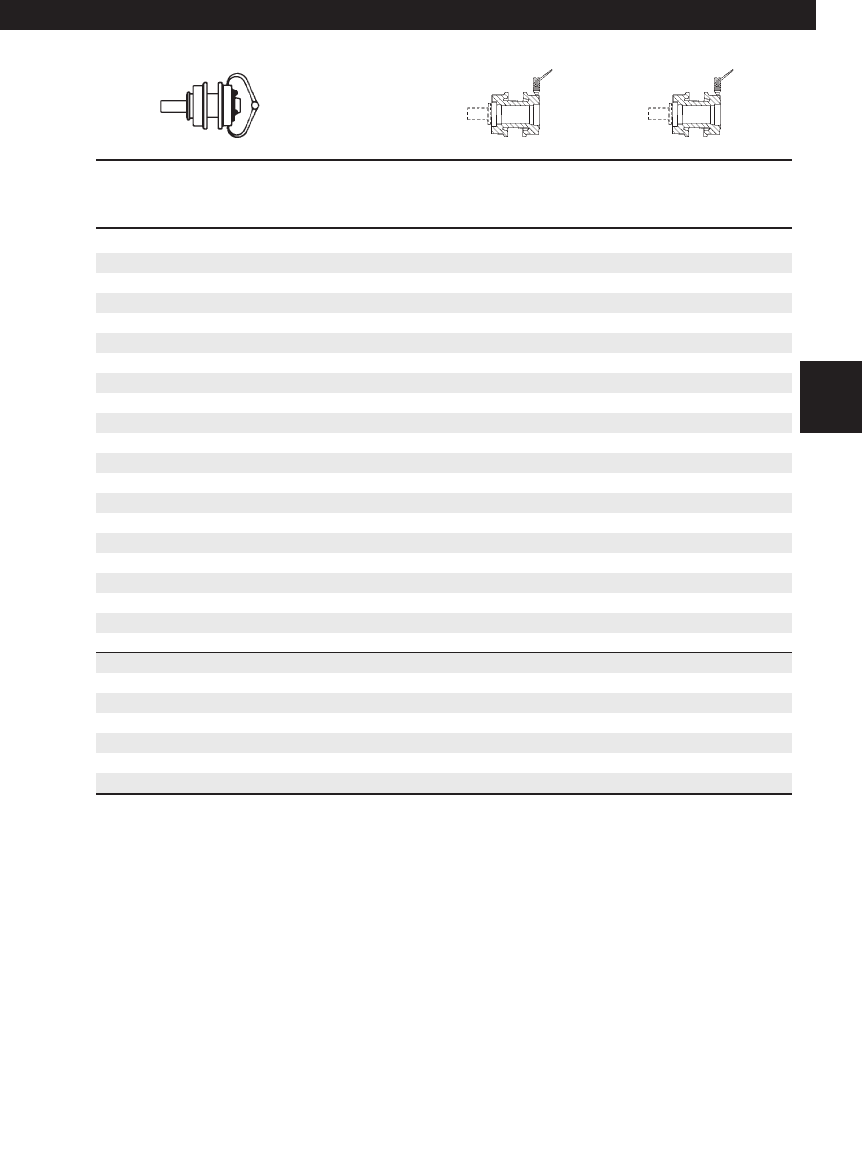

Carrier Rollers

Ultrasonic Ultrasonic

Caliper Three end cap bolts Four end cap bolts

Inches (mm) % Worn Inches (mm) Inches (mm)

7.50 (190.5) 0 1.92 (48.8) 1.44 (36.5)

7.46 (189.5) 5 1.90 (48.3) 1.42 (35.9)

7.42 (188.5) 10 1.88 (47.8) 1.40 (35.4)

7.38 (187.5) 15 1.86 (47.2) 1.38 (34.9)

7.34 (186.5) 20 1.84 (46.7) 1.36 (34.4)

7.30 (185.5) 25 1.82 (46.2) 1.34 (33.9)

7.26 (184.5) 30 1.80 (45.7) 1.32 (33.4)

7.22 (183.5) 35 1.78 (45.2) 1.30 (32.9)

7.18 (182.5) 40 1.76 (44.7) 1.28 (32.4)

7.14 (181.5) 45 1.74 (44.2) 1.26 (31.9)

7.10 (180.5) 50 1.72 (43.7) 1.24 (31.4)

7.06 (179.5) 55 1.70 (43.2) 1.22 (30.9)

7.02 (178.5) 60 1.68 (42.7) 1.20 (30.4)

6.98 (177.5) 65 1.66 (42.2) 1.18 (29.8)

6.94 (176.5) 70 1.64 (41.7) 1.16 (29.3)

6.90 (175.5) 75 1.62 (41.1) 1.14 (28.8)

6.86 (174.0) 80 1.60 (40.6) 1.12 (28.3)

6.82 (173.0) 85 1.58 (40.1) 1.10 (27.8)

6.78 (172.0) 90 1.56 (39.6) 1.08 (27.3)

6.74 (171.0) 95 1.54 (39.1) 1.06 (26.8)

6.70 (170.0) 100 1.52 (38.6) 1.04 (26.3)

6.66 (169.0) 103 1.50 (38.1) 1.02 (25.8)

6.62 (168.0) 106 1.48 (37.6) 1.00 (25.3)

6.58 (167.0) 109 1.46 (37.1) 0.98 (24.8)

6.54 (166.0) 112 1.44 (36.6) 0.96 (24.3)

6.50 (165.0) 115 1.42 (36.1) 0.94 (23.8)

6.46 (164.0) 118 1.40 (35.6) 0.92 (23.2)

6.42 (163.0) 121 1.38 (35.1) 0.90 (22.7)

Undercarriage Code: 175, 390

375

D8, 983 — 9.00" (228.6 mm)

Low Sprocket Machines

07.Low(348-387) 7/14/03 7:30 AM Page 375
