Caterpillar Custom Track Service Handbook Page 691

Service Handbook

Page of 826

/ 826

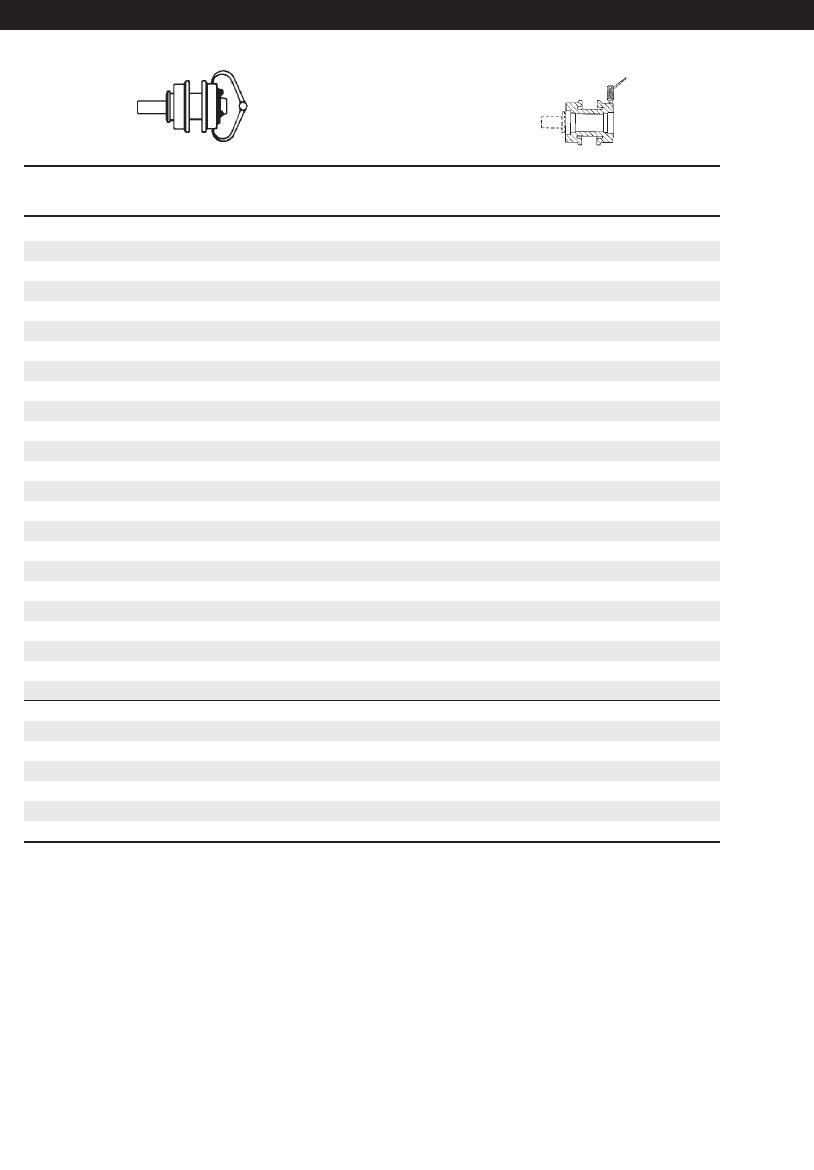

Carrier Rollers

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

7.38 (187.5) 0 1.86 (47.2)

7.34 (186.5) 5 1.84 (46.7)

7.30 (185.5) 10 1.82 (46.2)

7.26 (184.5) 15 1.80 (45.7)

7.22 (183.5) 20 1.78 (45.2)

7.18 (182.5) 25 1.76 (44.7)

7.14 (181.5) 30 1.74 (44.2)

7.10 (180.5) 35 1.72 (43.7)

7.06 (179.5) 40 1.70 (43.2)

7.02 (178.5) 45 1.68 (42.7)

6.98 (177.5) 50 1.66 (42.2)

6.94 (176.5) 55 1.64 (41.7)

6.90 (175.5) 60 1.62 (41.1)

6.86 (174.0) 65 1.60 (40.6)

6.82 (173.0) 70 1.58 (40.1)

6.78 (172.0) 75 1.56 (39.6)

6.74 (171.0) 79 1.54 (39.1)

6.70 (170.0) 82 1.52 (38.6)

6.66 (169.0) 85 1.50 (38.1)

6.62 (168.0) 88 1.48 (37.6)

6.58 (167.0) 91 1.46 (37.1)

6.54 (166.0) 94 1.44 (36.6)

6.50 (165.0) 97 1.42 (36.1)

6.46 (164.0) 100 1.40 (35.6)

6.42 (163.0) 103 1.38 (35.1)

6.38 (162.0) 106 1.36 (34.5)

6.34 (161.0) 109 1.34 (34.0)

6.30 (160.0) 112 1.32 (33.5)

6.26 (159.0) 115 1.30 (33.0)

6.22 (158.0) 118 1.28 (32.5)

6.18 (157.0) 121 1.26 (32.0)

Undercarriage Code: 480

690

235 — 8.00" (203.2 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 690
