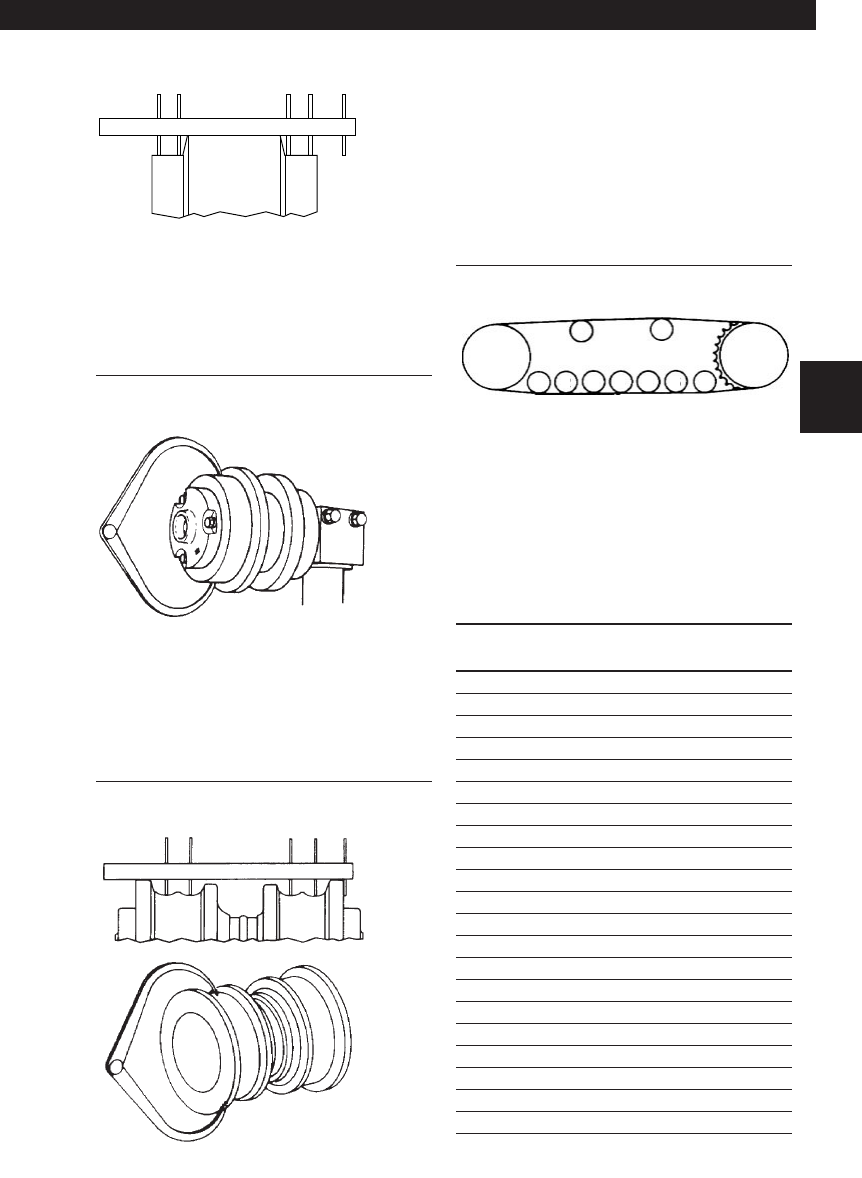

Idlers

See pages 56 through 58 for detailed idler

information.

Measurement — Use the depth gauge to

measure idlers.

Carrier Rollers

See pages 59 through 60 for detailed carrier

roller information.

Measurement — Use the caliper or the

Ultrasonic Wear Indicator to measure

carrier rollers.

Track Rollers

See pages 61 through 65 for detailed track

roller information.

Measurement — Track rollers can be

measured with a depth gauge, a caliper or

an Ultrasonic Wear Indicator. The wear

charts include both measurements. For

instructions on how to make either mea-

surement see page 61.

Roller Flange Sequence

From the chart which follows, you will

note that the rear roller (the roller nearest

the sprocket) is usually a single flange

roller. If a double flange roller were used

as the rear roller, interference could occur

between the inner flange and the sprocket

teeth. Therefore, a double flange roller

should not usually be placed in the rear

position.

Rollers Roller Position

Model Per Side F 234567

D2 4 SDDS

D3 7 DDSSDSS

D3 5 SDSDS

D3 LGP 6 S D S S D S

D4NC 4 S D D S

D4, D4D, D4E 5 S D S D S

D4C, D4G 5 S D S D S

D5, D5B 6 S D D S D S

D5 LGP 7 S D D S D D S

D5C, D5G 6 S D S S D S

D5C, D5G 5 D D S D S

D6 6 SDDDDS

D6 LGP 7 DDSDSDS

D6B, D6NC 6 S DDDDS

D6C, D6D 6 D S D S D S

D7NC (8.00'') 5 S D S D S

D7 6 DSDSDS

D7 LGP 7 DDSDSDS

D7D, D7E, D7F, D7G 6 D S D S D S

D8 7 DDSSDDS

D8 6 DSDSDS

continues on next page

Idler

Sprocket

2 3 4

253

COMPONENTS
