Caterpillar Custom Track Service Handbook Page 238

Service Handbook

Page of 826

/ 826

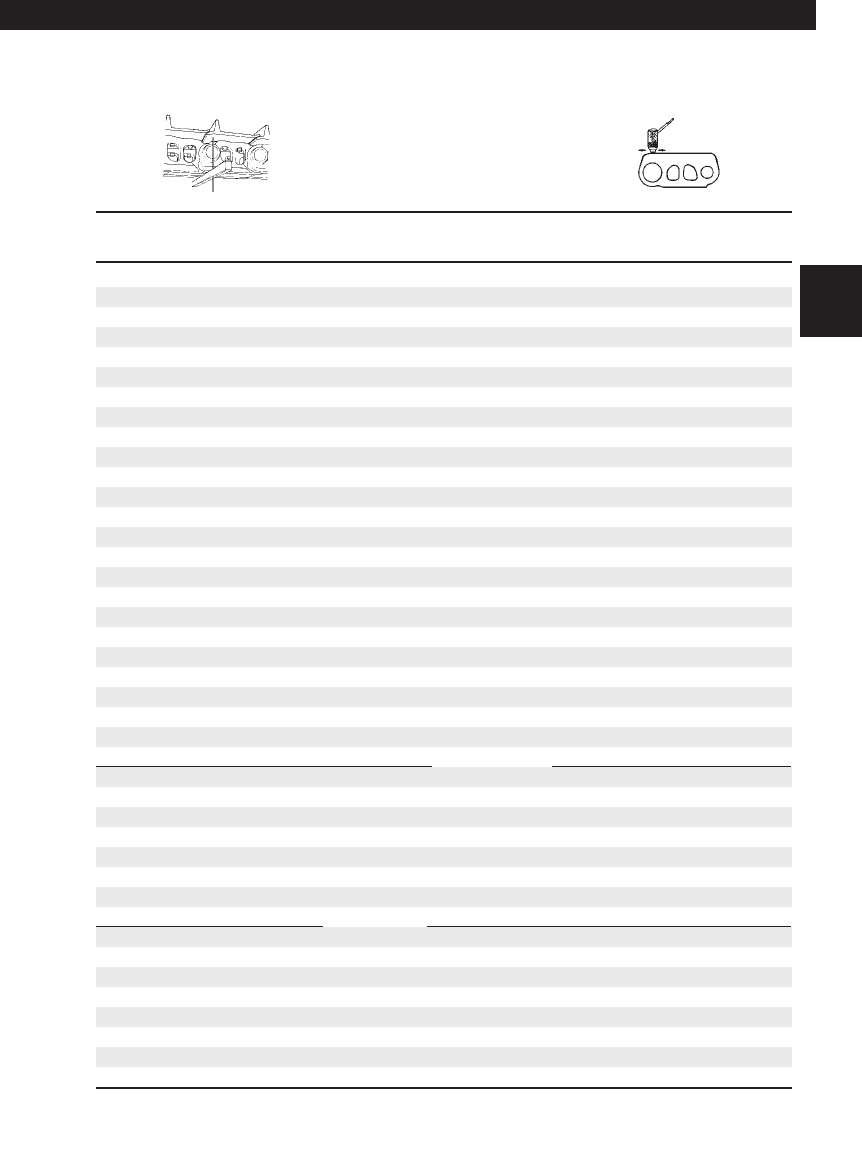

Track Links

6T8049 & 50

Standard Link

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

7.79 (198.0) 0 0 2.24 (56.9)

7.77 (197.5) 5 4 2.22 (56.4)

7.75 (197.0) 10 8 2.20 (55.9)

7.73 (196.5) 15 12 2.18 (55.4)

7.71 (196.0) 20 16 2.16 (54.9)

7.69 (195.5) 25 20 2.14 (54.4)

7.67 (195.0) 30 24 2.12 (53.8)

7.65 (194.5) 35 28 2.10 (53.3)

7.63 (194.0) 40 32 2.08 (52.8)

7.61 (193.5) 45 36 2.06 (52.3)

7.59 (193.0) 50 40 2.04 (51.8)

7.57 (192.5) 55 44 2.02 (51.3)

7.55 (192.0) 60 48 2.00 (50.8)

7.53 (191.5) 64 52 1.98 (50.3)

7.51 (191.0) 68 55 1.96 (49.8)

7.49 (190.0) 71 58 1.94 (49.3)

7.47 (189.5) 74 60 1.92 (48.8)

7.45 (189.0) 77 63 1.90 (48.3)

7.43 (188.5) 81 65 1.88 (47.8)

7.41 (188.0) 84 68 1.86 (47.2)

7.39 (187.5) 87 70 1.84 (46.7)

7.37 (187.0) 90 73 1.82 (46.2)

7.35 (186.5) 94 75 1.80 (45.7)

7.33 (186.0) 97 78 1.78 (45.2)

7.31 (185.5) 100 80 1.76 (44.7)

7.29 (185.0) 103 83 1.74 (44.2)

7.27 (184.5) 107 85 1.72 (43.7)

7.25 (184.0) 110 88 1.70 (43.2)

7.23 (183.5) 113 90 1.68 (42.7)

7.21 (183.0) 116 93 1.66 (42.2)

7.19 (182.5) 120 95 1.64 (41.7)

7.17 (182.0) 98 1.62 (41.1)

7.15 (181.5) 100 1.60 (40.6)

7.13 (181.0) 103 1.58 (40.1)

7.11 (180.5) 105 1.56 (39.6)

7.09 (180.0) 108 1.54 (39.1)

7.07 (179.5) 110 1.52 (38.6)

7.05 (179.0) 113 1.50 (38.1)

7.03 (178.5) 115 1.48 (37.6)

7.01 (178.0) 118 1.46 (37.1)

6.99 (177.5) 120 1.44 (36.6)

Undercarriage Code: 220, 221

237

D11N, D11R — 12.50" (317.5 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 237
