Caterpillar Custom Track Service Handbook Page 117

Service Handbook

Page of 826

/ 826

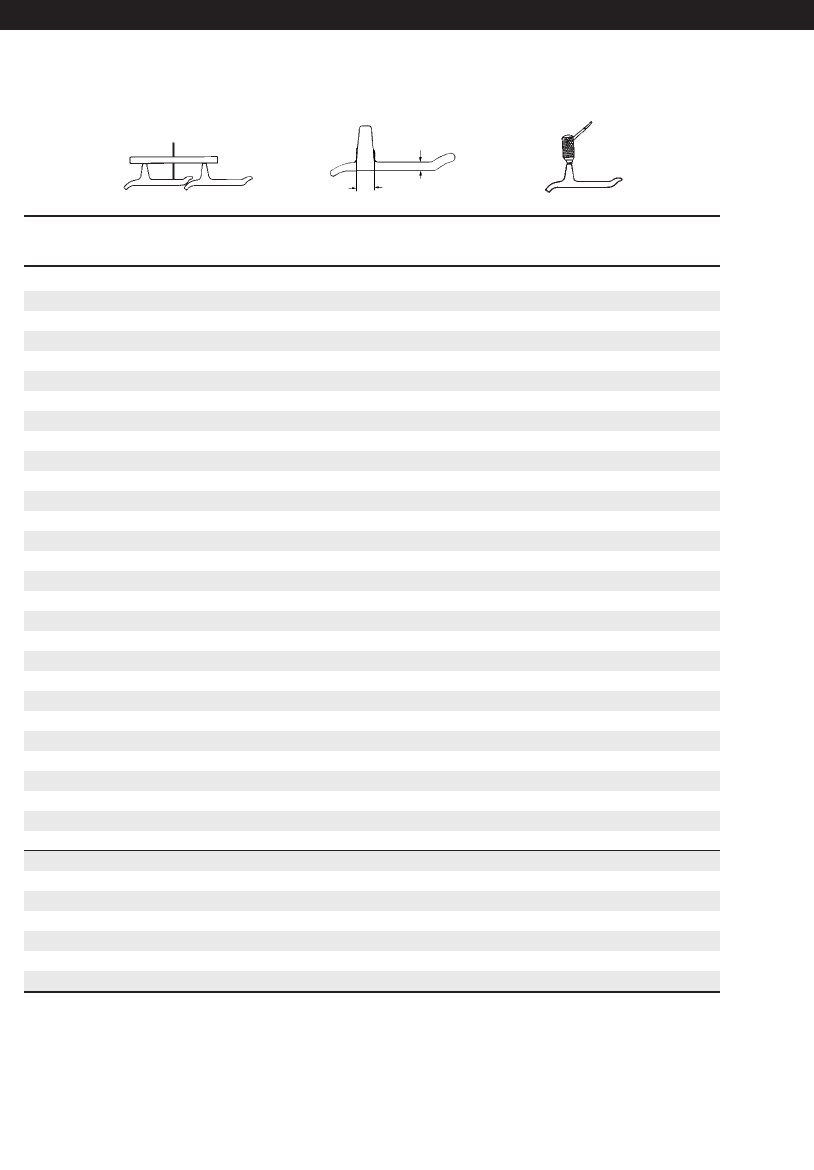

Track Shoes

Extreme Service

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.25 (57.0) 0 2.75 (69.9)

2.20 (56.0) 4 2.70 (68.6)

2.15 (54.5) 8 2.65 (67.4)

2.10 (53.5) 12 2.60 (66.1)

2.05 (52.0) 16 2.55 (64.8)

2.00 (51.0) 20 2.50 (63.6)

1.95 (49.5) 24 2.45 (62.3)

1.90 (48.5) 28 2.40 (61.0)

1.85 (47.0) 32 2.35 (59.7)

1.80 (45.5) 36 2.30 (58.5)

1.75 (44.5) 40 2.25 (57.2)

1.70 (43.0) 44 2.20 (55.9)

1.65 (42.0) 48 2.15 (54.7)

1.60 (40.5) 52 2.10 (53.4)

1.55 (39.5) 56 2.05 (52.1)

1.50 (38.0) 60 2.00 (50.9)

1.45 (37.0) 64 1.95 (49.6)

1.40 (35.5) 67 1.90 (48.3)

1.35 (34.5) 70 1.85 (47.0)

1.30 (33.0) 73 1.80 (45.8)

1.25 (32.0) 76 1.75 (44.5)

1.20 (30.5) 79 1.70 (43.2)

1.15 (29.0) 82 1.65 (42.0)

1.10 (28.0) 85 1.60 (40.7)

1.05 (26.5) 88 1.55 (39.4)

1.00 (25.5) 91 1.50 (38.2)

0.95 (24.0) 94 1.45 (36.9)

0.90 (23.0) 97 1.40 (35.6)

0.85 (21.5) 100 1.35 (34.3)

0.80 (20.5) 103 1.30 (33.1)

0.75 (19.0) 106 1.25 (31.8)

0.70 (18.0) 109 1.20 (30.5)

0.65 (16.5) 112 1.15 (29.3)

0.60 (15.0) 115 1.10 (28.0)

0.55 (14.0) 118 1.05 (26.7)

0.50 (12.5) 121 1.00 (25.5)

Undercarriage Code:

110, 11002, 1101, 11012, 1108, 111, 1121,

1122, 120, 12002, 1201, 12012, 1208, 121,

124, 1248, 12482, 125, 1251, 128, 129, 1291

116

D4H, D5M, D5N, 561H, 561M, 561N — 6.75" (171.5 mm)

Elevated Sprocket Machines

.50" (12.7 mm)

.91" (23 mm)

02.Elev.(110-145) 7/11/03 3:43 PM Page 116
