Caterpillar Custom Track Service Handbook Page 317

Service Handbook

Page of 826

/ 826

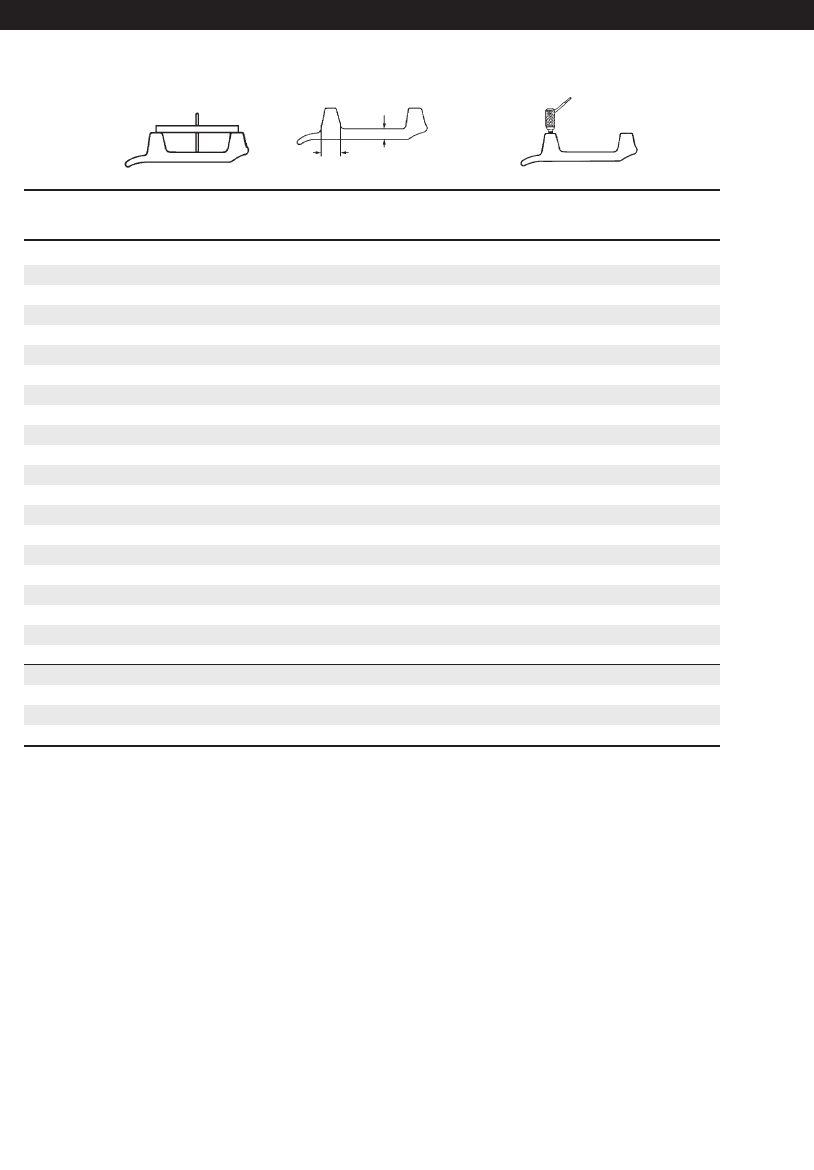

Track Shoes

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.50 (38.0) 0 1.99 (50.5)

1.45 (37.0) 5 1.94 (49.2)

1.40 (35.5) 10 1.89 (48.0)

1.35 (34.5) 15 1.84 (46.7)

1.30 (33.0) 20 1.79 (45.4)

1.25 (32.0) 25 1.74 (44.2)

1.20 (30.5) 30 1.69 (42.9)

1.15 (29.0) 35 1.64 (41.6)

1.10 (28.0) 40 1.59 (40.3)

1.05 (26.5) 45 1.54 (39.1)

1.00 (25.5) 50 1.49 (37.8)

0.95 (24.0) 55 1.44 (36.5)

0.90 (23.0) 60 1.39 (35.3)

0.85 (21.5) 65 1.34 (34.0)

0.80 (20.5) 70 1.29 (32.7)

0.75 (19.0) 75 1.24 (31.5)

0.70 (18.0) 80 1.19 (30.2)

0.65 (16.5) 85 1.14 (28.9)

0.60 (15.0) 90 1.09 (27.6)

0.55 (14.0) 95 1.04 (26.4)

0.50 (12.5) 100 0.99 (25.1)

0.45 (11.5) 105 0.94 (23.8)

0.40 (10.0) 110 0.89 (22.6)

0.35 (9.0) 115 0.84 (21.3)

0.30 (7.5) 120 0.79 (20.0)

Undercarriage Code: 104, 105, 130, 131, 331, 332, 350

316

D5, 955, 951, 561 — 6.91" (175.5 mm)

Low Sprocket Machines

.51" (13 mm)

1.02" (26 mm)

05.Low(246-325) 7/11/03 3:52 PM Page 316
