Caterpillar Custom Track Service Handbook Page 708

Service Handbook

Page of 826

/ 826

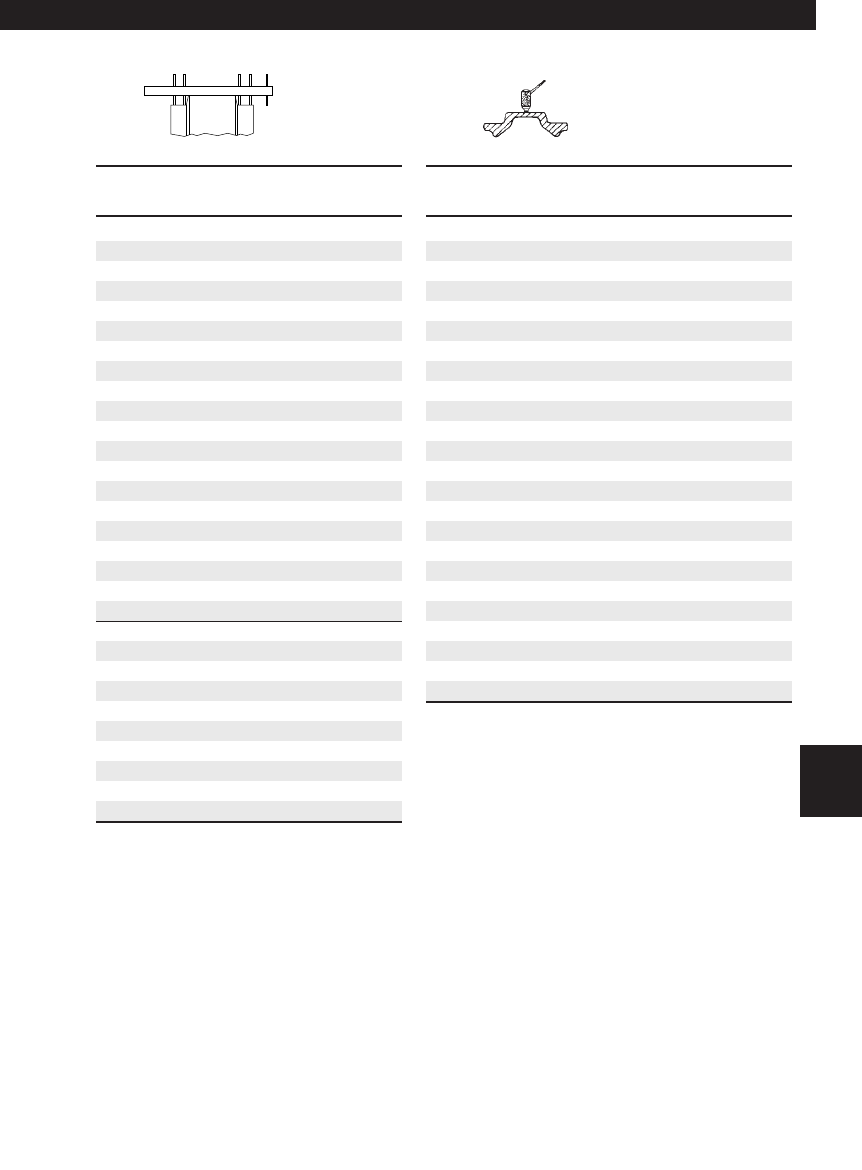

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.94 (24.0) 0 0.48 (12.2) 0.00 (0.0)

0.96 (24.5) 9 0.46 (11.7) 0.02 (0.5)

0.98 (25.0) 18 0.44 (11.2) 0.04 (1.0)

1.00 (25.5) 27 0.42 (10.7) 0.06 (1.5)

1.02 (26.0) 36 0.40 (10.2) 0.08 (2.0)

1.04 (26.5) 45 0.38 (9.7) 0.10 (2.5)

1.06 (27.0) 54 0.36 (9.1) 0.12 (3.0)

1.08 (27.5) 63 0.34 (8.6) 0.14 (3.5)

1.10 (28.0) 72 0.32 (8.1) 0.16 (4.0)

1.12 (28.5) 80 0.30 (7.6) 0.18 (4.5)

1.14 (29.0) 82 0.28 (7.1) 0.20 (5.0)

1.16 (29.5) 84 0.26 (6.6) 0.22 (5.5)

1.18 (30.0) 86 0.24 (6.1) 0.24 (6.0)

1.20 (30.5) 88 0.22 (5.6) 0.26 (6.5)

1.22 (31.0) 90 0.20 (5.1) 0.28 (7.0)

1.24 (31.5) 92 0.18 (4.6) 0.30 (7.5)

1.26 (32.0) 94 0.16 (4.1) 0.32 (8.0)

1.28 (32.5) 96 0.14 (3.6) 0.34 (8.5)

1.30 (33.0) 98 0.12 (3.0) 0.36 (9.0)

1.32 (33.5) 100 0.10 (2.5) 0.38 (9.5)

1.34 (34.0) 103 0.08 (2.0) 0.40 (10.0)

1.36 (34.5) 104 0.06 (1.5) 0.42 (10.5)

1.38 (35.0) 106 0.04 (1.0) 0.44 (11.0)

1.40 (35.5) 108 0.02 (0.5) 0.46 (11.5)

1.42 (36.0) 110

NOTE: Ultrasonic measurement is to determine

1.44 (36.5) 112

flange wear only.

1.46 (37.0) 114

1.48 (37.5) 116

1.50 (38.0) 118

1.52 (38.5) 120

Flange width: 4.75" (120.7 mm)

Undercarriage Code: 490

707

245 — 9.00" (228.6 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 707
