Caterpillar Custom Track Service Handbook Page 525

Service Handbook

Page of 826

/ 826

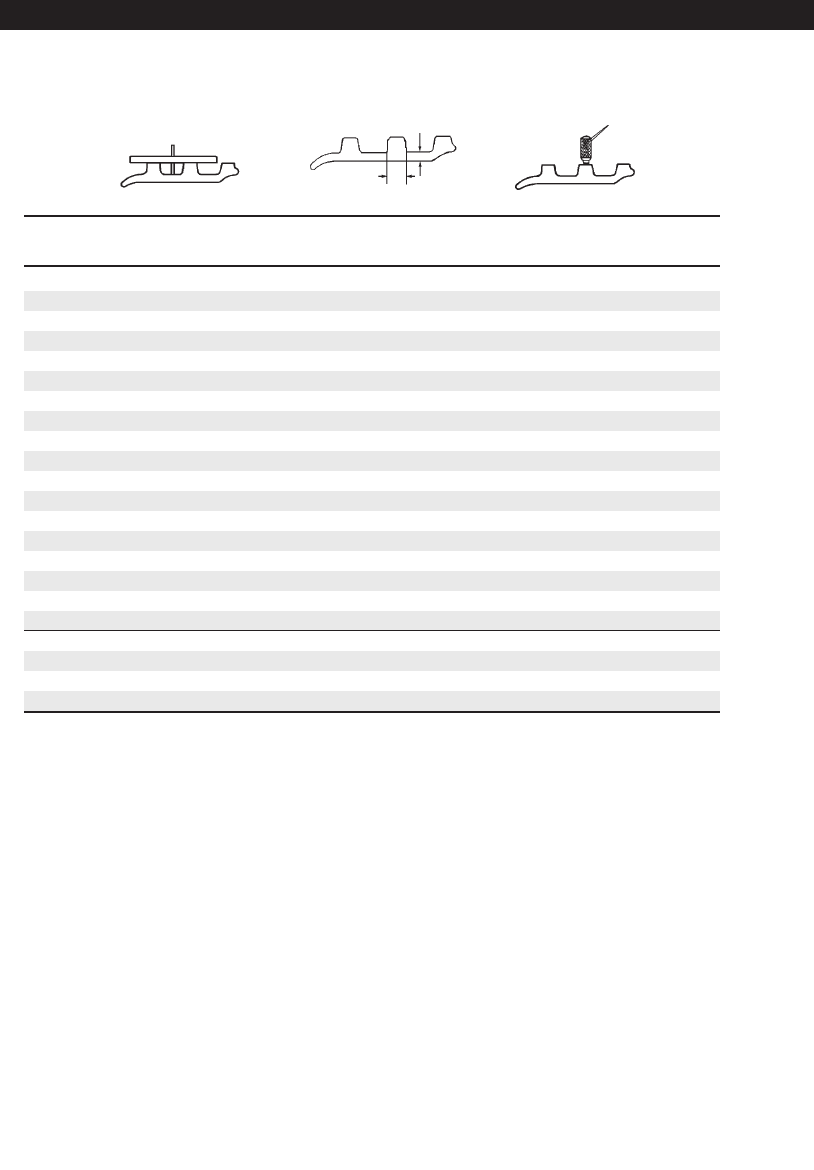

Track Shoes

Extreme Service Triple Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.10 (28.0) 0 1.60 (40.6)

1.05 (26.5) 6 1.55 (39.4)

1.00 (25.5) 12 1.50 (38.1)

0.95 (24.0) 18 1.45 (36.8)

0.90 (23.0) 24 1.40 (35.6)

0.85 (21.5) 30 1.35 (34.3)

0.80 (20.5) 36 1.30 (33.0)

0.75 (19.0) 42 1.25 (31.8)

0.70 (18.0) 48 1.20 (30.5)

0.65 (16.5) 54 1.15 (29.2)

0.60 (15.0) 60 1.10 (27.9)

0.55 (14.0) 66 1.05 (26.7)

0.50 (12.5) 72 1.00 (25.4)

0.45 (11.5) 78 0.95 (24.1)

0.40 (10.0) 84 0.90 (22.9)

0.35 (9.0) 90 0.85 (21.6)

0.30 (7.5) 95 0.80 (20.3)

0.25 (6.5) 100 0.75 (19.1)

0.20 (5.0) 105 0.70 (17.8)

0.15 (4.0) 110 0.65 (16.5)

0.10 (2.5) 115 0.60 (15.2)

0.05 (1.5) 120 0.55 (14.0)

Undercarriage Code: 546, 5461, 547, 5471, 566, 5661, 567, 578, 5781

524

315, 317, 318, 320, 322 — 7.50" (190 mm)

Excavators

.49" (12.5 mm)

.79" (20 mm)

10.Exc.(488-607) 7/14/03 7:32 AM Page 524
