Caterpillar Custom Track Service Handbook Page 395

Service Handbook

Page of 826

/ 826

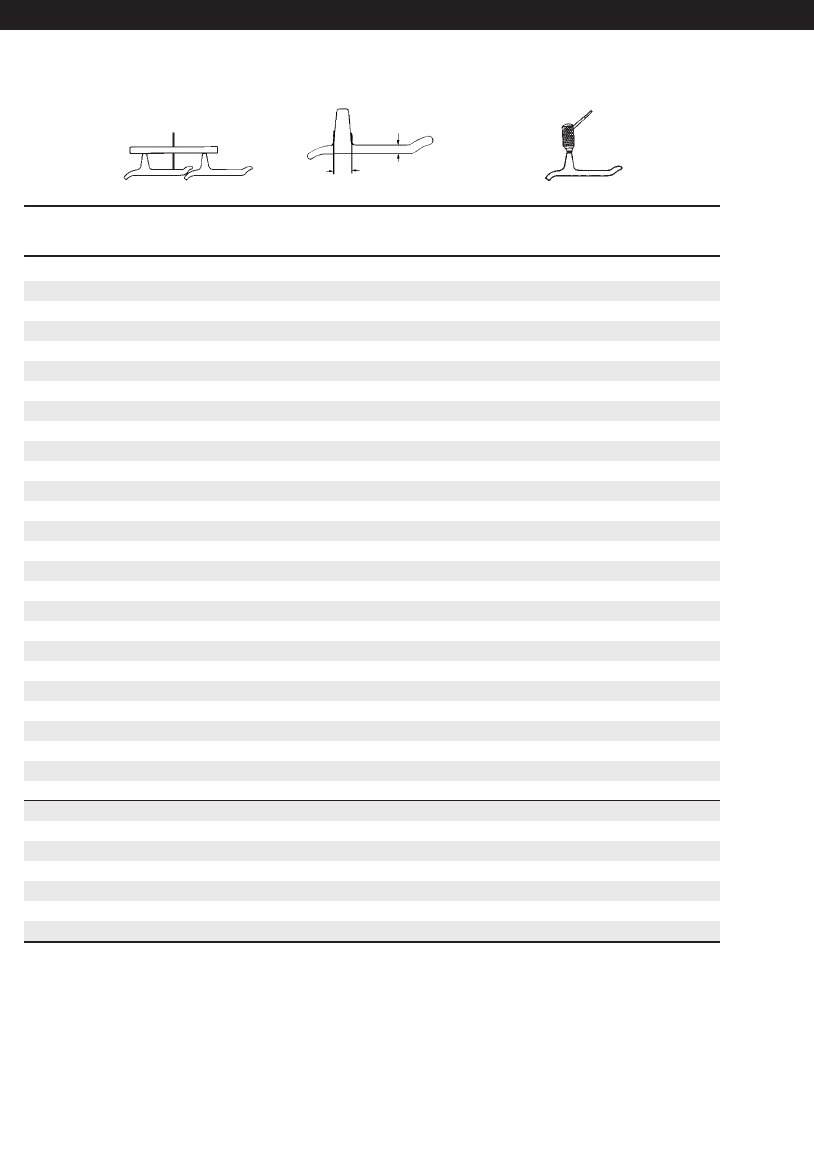

Track Shoes

Moderate Service

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.15 (54.5) 0 2.60 (66.0)

2.10 (53.5) 4 2.55 (64.8)

2.05 (52.0) 8 2.50 (63.5)

2.00 (51.0) 12 2.45 (62.2)

1.95 (49.5) 16 2.40 (61.0)

1.90 (48.5) 20 2.35 (59.7)

1.85 (47.0) 24 2.30 (58.4)

1.80 (45.5) 28 2.25 (57.2)

1.75 (44.5) 32 2.20 (55.9)

1.70 (43.0) 36 2.15 (54.6)

1.65 (42.0) 40 2.10 (53.3)

1.60 (40.5) 44 2.05 (52.1)

1.55 (39.5) 48 2.00 (50.8)

1.50 (38.0) 52 1.95 (49.5)

1.45 (37.0) 56 1.90 (48.3)

1.40 (35.5) 60 1.85 (47.0)

1.35 (34.5) 64 1.80 (45.7)

1.30 (33.0) 68 1.75 (44.5)

1.25 (32.0) 72 1.70 (43.2)

1.20 (30.5) 76 1.65 (41.9)

1.15 (29.0) 80 1.60 (40.6)

1.10 (28.0) 84 1.55 (39.4)

1.05 (26.5) 88 1.50 (38.1)

1.00 (25.5) 91 1.45 (36.8)

0.95 (24.0) 94 1.40 (35.6)

0.90 (23.0) 97 1.35 (34.3)

0.85 (21.5) 100 1.30 (33.0)

0.80 (20.5) 103 1.25 (31.8)

0.75 (19.0) 106 1.20 (30.5)

0.70 (18.0) 109 1.15 (29.2)

0.65 (16.5) 112 1.10 (27.9)

0.60 (15.0) 115 1.05 (26.7)

0.55 (14.0) 118 1.00 (25.4)

0.50 (12.5) 121 0.95 (24.1)

Undercarriage Code: 1315

394

D5B — 6.91" (175.5 mm)

Cat Classic Undercarriage

.45" (11.5 mm)

.98" (25 mm)

08.Classic(388-425) 7/14/03 7:31 AM Page 394
