Rollers Roller Position

Model Per Side F 2 3 45678910

D4H, D4H XL, 7 S DS DS DS

D4H LGP

D5M, D5M XL,

D5M XR,

D5M LGP, D5N,

D5N XL

D4H LGP 8 S DS DDS DS

D5M LGP,

D5N LGP

D5H 6 S DS S DS

D5H XL, 7 S DS DS DS

D5H TSK

D6M, D6N

D5H LGP 8 S DS DDS DS

D6M LGP,

D6N LGP

D6H, D6R 6 S DS DS S

D6H XL, D6H XR 7 S DS DS DS

D6R XL, D6R XR,

D6R XW

D6H LGP, 8 S DS DDS DS

D6R LGP

D7H, D7H LGP 7 S DS DSDS

D7R, D7R LGP

D7H XR, D7R XR 8 S DS DDS DS

D8L*, D8N*, D8R* 8 S S D DDDSS

D9L*, D9N*, D9R* 8 S S D DDDSS

D10*, D10N*, D10R*8 S SD DDDSS

D11N*, D11R* 8 S SD DDDSS

561H, 561M, 561N 7 S DS DS DS

572R 7 S DS DS DS

578* 10 S S D DDDDDSS

583R* 7 DDS S DDS

589* 10 S S D DDDDDSS

517, 527 7 S DS DS DS

517, 527 8 S DS DDS DS

*Machines where single flange rollers are larger than

double flange rollers.

Sprockets

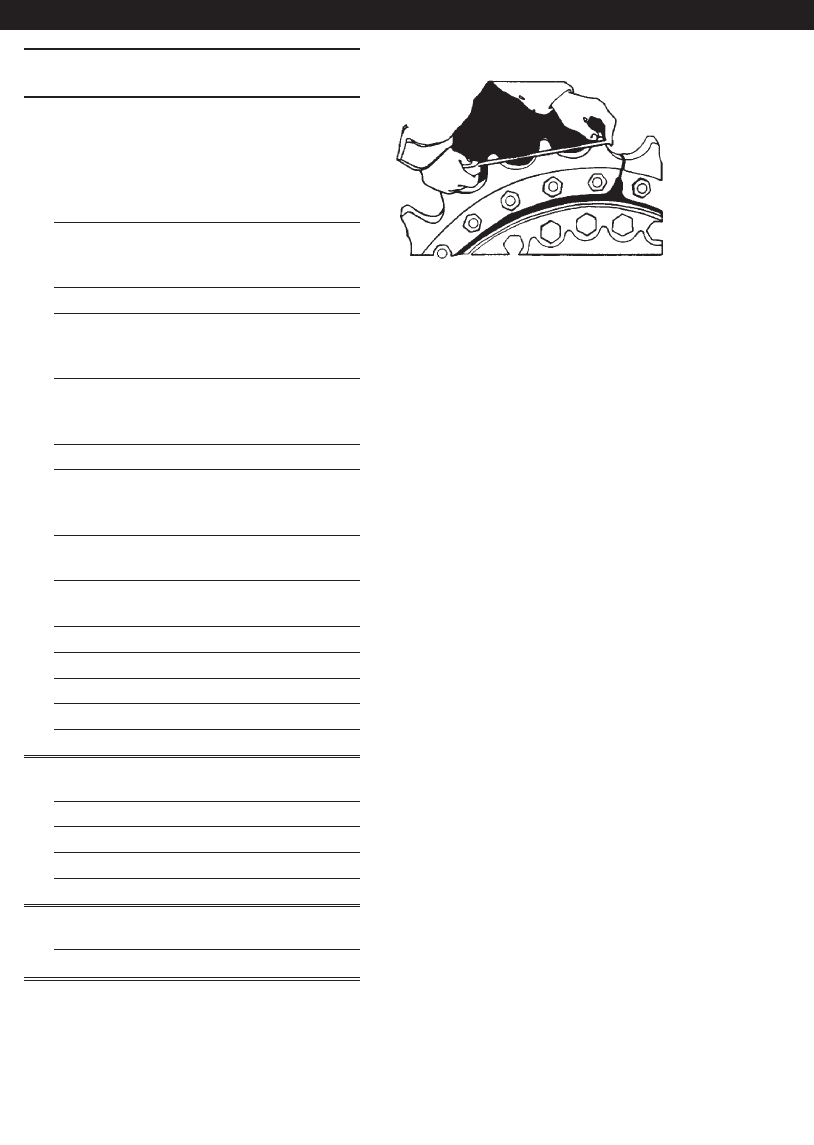

Measurement — To determine the

sprocket segment percent worn, measure

the minimum distance between a drive

side on the original tooth and the opposite

drive side of a sprocket tooth located three

teeth away. It is important to note that the

distance measured should be between

teeth on the same segment. Avoid measur-

ing between teeth on different segments as

this may yield an incorrect measurement.

Wear Patterns — The sprockets on these

machines are elevated, reducing the

effects of abrasives, packing and virtually

eliminates impact. Wear patterns exhibited

on these sprockets are similar, but not identi-

cal, to those seen on low sprocket machines.

Segment replacement is recommended at

bushing turn time to reduce back-side

bushing wear rate.

During early hour operation of elevated

sprocket tractors, contact (scrubbing) between

the track link and the side of the sprocket

segment can occur. Experience has shown

that this scrubbing is common and usually

subsides after about 200 hours of operation.

Extensive investigation indicates that the

stack up of tolerances in the components

of the roller frame and the final drive result

in the tendency for the track to favor one

side or the other of the sprocket.

Sprocket scrubbing has been observed on

many machines operating in a variety of

applications. Custom Track Services

(CTS) data showed no detrimental effect

on the wear life of the undercarriage

caused by sprocket scrubbing. A similar

type of contact (scrubbing) may also be

observed on the track guides.

104

COMPONENTS

Elevated Sprocket Machines

Track-Type TractorsPipelayersTrack

Skidders

02.1.Elev.(94-109) 7/11/03 3:42 PM Page 104
