Track Rollers

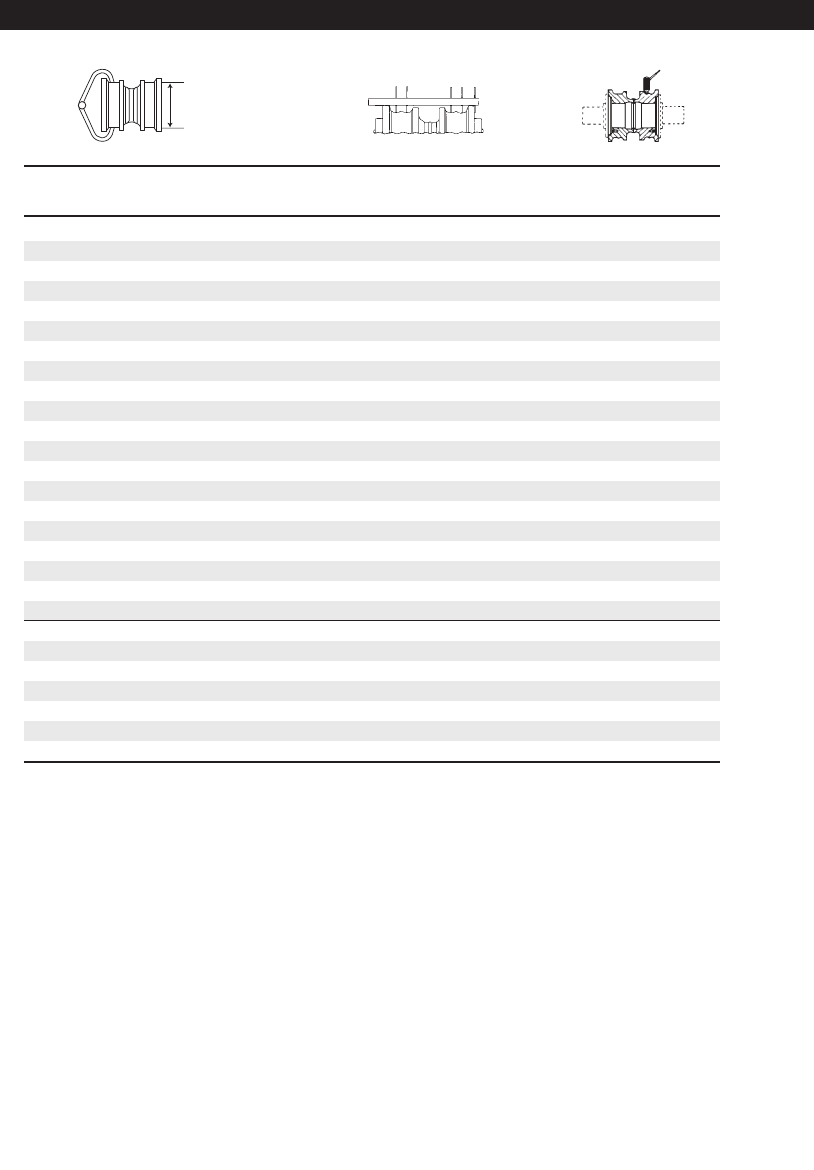

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.01 (203.5) 0 0.65 (16.5) 1.65 (41.9)

7.97 (202.5) 6 0.67 (17.0) 1.63 (41.4)

7.93 (201.5) 12 0.69 (17.5) 1.61 (40.9)

7.89 (200.5) 18 0.71 (18.0) 1.59 (40.4)

7.85 (199.5) 24 0.73 (18.5) 1.57 (39.9)

7.81 (198.5) 30 0.75 (19.0) 1.55 (39.4)

7.77 (197.5) 36 0.77 (19.5) 1.53 (38.9)

7.73 (196.5) 42 0.79 (20.0) 1.51 (38.4)

7.69 (195.5) 48 0.81 (20.5) 1.49 (37.8)

7.65 (194.5) 54 0.83 (21.0) 1.47 (37.3)

7.61 (193.5) 60 0.85 (21.5) 1.45 (36.8)

7.57 (192.5) 66 0.87 (22.0) 1.43 (36.3)

7.53 (191.5) 72 0.89 (22.5) 1.41 (35.8)

7.49 (190.0) 78 0.91 (23.0) 1.39 (35.3)

7.45 (189.0) 84 0.93 (23.5) 1.37 (34.8)

7.41 (188.0) 88 0.95 (24.0) 1.35 (34.3)

7.37 (187.0) 91 0.97 (24.5) 1.33 (33.8)

7.33 (186.0) 94 0.99 (25.0) 1.31 (33.3)

7.29 (185.0) 97 1.01 (25.5) 1.29 (32.8)

7.25 (184.0) 100 1.03 (26.0) 1.27 (32.3)

7.21 (183.0) 103 1.05 (26.5) 1.25 (31.8)

7.17 (182.0) 106 1.07 (27.0) 1.23 (31.2)

7.13 (181.0) 109 1.09 (27.5) 1.21 (30.7)

7.09 (180.0) 112 1.11 (28.0) 1.19 (30.2)

7.05 (179.0) 115 1.13 (28.5) 1.17 (29.7)

7.01 (178.0) 118 1.15 (29.0) 1.15 (29.2)

6.97 (177.0) 121 1.17 (29.5) 1.13 (28.7)

Flange diameter is 9.31" (236.5 mm)

Undercarriage Code: 1315

398

D5B — 6.91" (175.5 mm)

Cat Classic Undercarriage

08.Classic(388-425) 7/14/03 7:31 AM Page 398
