Caterpillar Custom Track Service Handbook Page 675

Service Handbook

Page of 826

/ 826

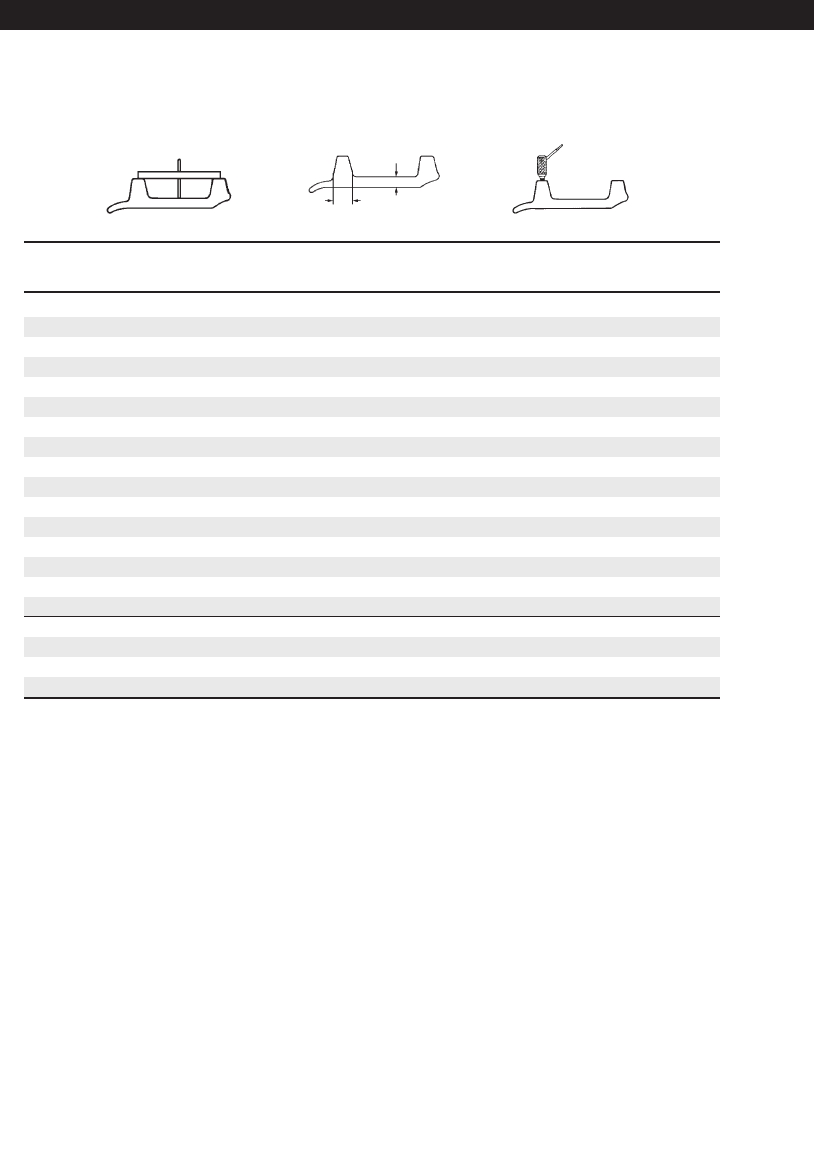

Track Shoes

Double Grouser

Former

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.50 (38.0) 0 2.10 (53.3)

1.45 (37.0) 7 2.05 (52.1)

1.40 (35.5) 14 2.00 (50.8)

1.35 (34.5) 21 1.95 (49.5)

1.30 (33.0) 28 1.90 (48.3)

1.25 (32.0) 35 1.85 (47.0)

1.20 (30.5) 42 1.80 (45.7)

1.15 (29.0) 49 1.75 (44.5)

1.10 (28.0) 56 1.70 (43.2)

1.05 (26.5) 63 1.65 (41.9)

1.00 (25.5) 70 1.60 (40.6)

0.95 (24.0) 76 1.55 (39.4)

0.90 (23.0) 82 1.50 (38.1)

0.85 (21.5) 88 1.45 (36.8)

0.80 (20.5) 94 1.40 (35.6)

0.75 (19.0) 100 1.35 (34.3)

0.70 (18.0) 106 1.30 (33.0)

0.65 (16.5) 112 1.25 (31.8)

0.60 (15.0) 118 1.20 (30.5)

0.55 (14.0) 124 1.15 (29.2)

Undercarriage Code: 481, 482, 483, 484

674

235, LL235 — 8.50" (215.9 mm)

Excavators

.62" (15.5 mm)

1.44" (36.5 mm)

11.Exc.(608-709) 7/14/03 7:33 AM Page 674
