Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 92

Systems Operation Troubleshooting Testing and Adjusting
92 KENR8601
Troubleshooting Section
(Table 18, contd)
Diagnostic Code
s
(1)
CID No. / FMI No.
Description
CID 1168 - Dead Bu
s Sensor:
FMI 3 Voltage above normal
FMI 4 Voltag e below normal
CID 1169 - AC Transformer Box Sensor:
FMI 2 Incorrect signal
CID 1170 - Bus Transformer Box Sensor:
FMI 2 Incorrect siga
nl
FMI 4 Voltag e below normal
FMI 8 Abnormal signal
CID 1178 - Pressure Sensor For Machine Overload
Warning:
FMI 3 Voltage above normal
(1)
For troubleshooting, refer to the procedure with the same CID
And FMI No.
(2)
Parallelling Applications Only

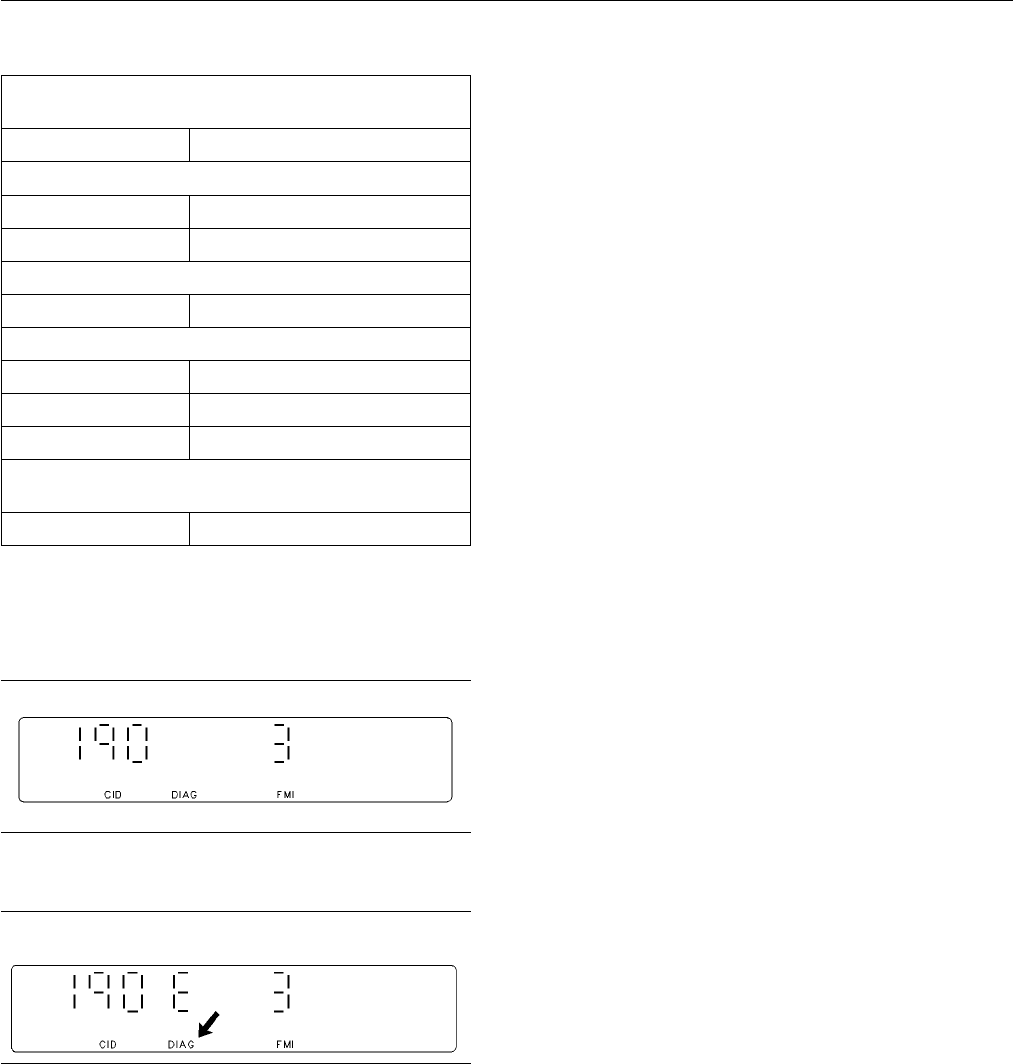

Example
g00615969
Illustration 57
Upper Display Showing A CID 190 FMI 3 Diagnostic Code
g00608337
Illustration 58
Upper Display Showing A CID 190 E FMI 3 Diagnostic Code
The “E” in the example shown in illustratio n 58
indicates that on EUI engines, the engine ECM has
generated the diagnostic code. The EMCP II+P will
display all diagnostic codes from the engine ECM.
This assists the operator in diagnosing problems with
the EUI engine. Refer to Troubleshooting, RENR9348
or Troubleshoo ting, RE NR9 968 for m ore information.
i02897294
GSC CID 0100 - FMI 02
SMCS Code: 1924-035
Conditions Which Generate This Code:
This diagnostic code is for the pressure sensor
(engine oil).
The eng ine ECM mon itors t he engine oil pressure in
order to protect the eng ine in case of a problem with
the oil pressure. The oil pressure s ensor is mounted
on an oil gallery on the engine. The exact location
of the engine oil pressure sensor varies depending
on the engine model. The GSC+P monitors the oil
pressure that is read by the engine ECM.
The possible causes of this d iagnostic code are listed
below:
•
There is an open in the circuit for the CAT data
link. The open is between the engine ECM and the
GSC+P.
•
There is a short or a failure in the oil pressure
sensor that is connected to the engine ECM.
The GSC+P issues a CID 0100 FMI 02 in order to
show that the G SC+P is unable to receive any valid
data about the oil pressure from the engine EC M.
The sensor is connected to the engine ECM. The
engine ECM sends data about the oil pressure
totheGSC+PviatheCATdatalink.Referto
Troubleshooting, RENR9348 or System Operation
Testing and Adjusting, RENR9968 for more
information on t he oil pressure sensor for the engine
ECM.
System Response:
Note: The GSC+P is usually programmed to treat
a problem wit h the oil pressure sensor as an alarm
fault. Setpoint P04 is 0. If the GSC+P is programmed
to treat a problem with the oil pressure sensor
as a shutdown fault, setpoint P04 is 1. If setpoint
P04 is programmed to 1, the diagnostic codes are
automatically shown on the upper display.
VERIFY THE DIAGNOSTIC COD E.
View the diagnostic code that is displayed on the
upper display panel of the EMCP II+P. Determine if
the diagnostic code is originatin g from the Eng ine
ECM.
