Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 160

Systems Operation Troubleshooting Testing and Adjusting
160 KENR8601
Troubleshooting Section
Te st Step 2. CHECK THE EMERGENCY
STOP INDICATOR.
Note: The following procedure will create diagnostic
codes. Clear these created diagnostic codes after
troubleshooting is complete.
A. The ECS rem ains in the STOP position.
B. Disconnect the harness connector from the
GSC+P.
C. Temporarily install a jumper from pin “39” of
the G SC+P to “BATT- ”. This simula tes the
OFF/RESET position of the ECS.
D. Check the operation of the emergency stop
indicator.
Expected Result:
The emergency stop indicator should be OFF.
Results:
•
OK – The problem is with the ESPB or the related
wiring.
Repair: Troubleshoot the circuit. Refer to the
Generator Set Wiring Diagram. Refer to Testing
And Adjusting, “Schematics and Wiring Diagrams”.
Repair failed components or replace failed
components, if necessary. Repair the wiring or
replace the wiring, if necessary.
STOP.
•
NOT OK – The emergency stop indicator is
FLASHING.
Repair: The GSC+P may have failed. It is unlikely
that the GSC+P has failed. Exit this procedure and
perform this entire procedure again. If the problem
remains, replace the GSC+P. Refer to Testing And
Adjusting, “EMCP Electronic Control (Generator
Set) - Replace”.
STOP.
i02893433
Indicator for High Water
Temperature
SMCS C ode: 4490-035-IND
Reference: The engine E lectronic Control Module
(ECM) monitors the coolant temperature on C32
engines. The Electronic Control S ystem (ECS) for
the engine sends the information to the GSC+P. For
troubleshooting, refer to System Operation Testing
and Adjusting, RENR9968 or Troubleshooting,
RENR9348.
Results:
•
–STOP.
i02897098
Indicator for Low Coolant
Level
SMCS C ode: 4490-035-IND
System Operation Description:
g01442536
Illustration 86

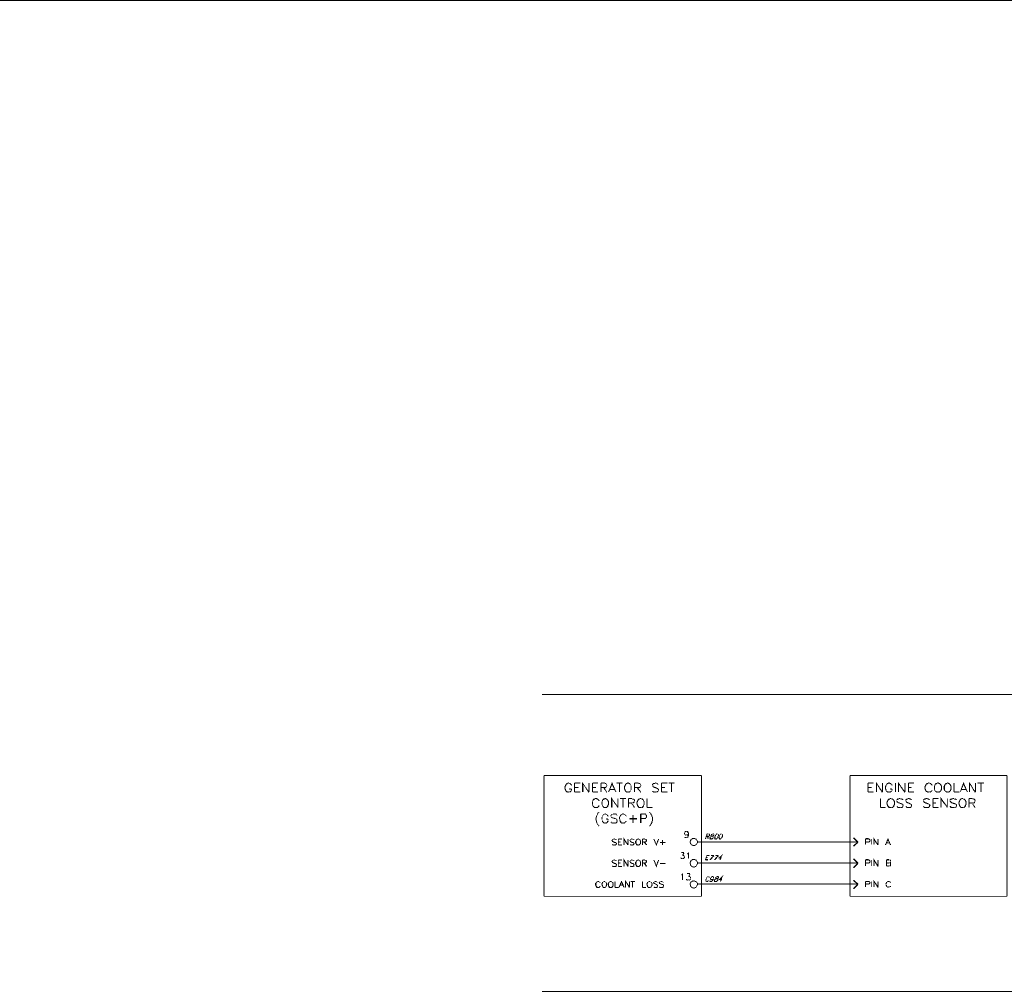

System Schematic For Engine Coolant Loss Sensor (ECLS)
In order to find the cause of a low level shutdown,
perform this procedure.
Tes t Step 1. CHECK THE COOLA NT
LEVEL.
A. Check the level of the engine coolant. Refer to
the Operation And Maintenance Manual for the
engine.
Expected Result:
The coolant level should be at the proper level.
The coolant level should be above the probe of the
coolant los s sensor.
