Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 13

Systems Operation Troubleshooting Testing and Adjusting
KENR8601 13
Systems Operation Section
•
Total reactive energy output (kVARHr)
Note: All real power values are signed with a “+” or a
“−”. A negative value indicates rev erse power.
Note: Real power phase A, B, and C as well as
power factor phase A, B, and C are not shown when
setpoint P032 is set to 1 for delta generator sets.

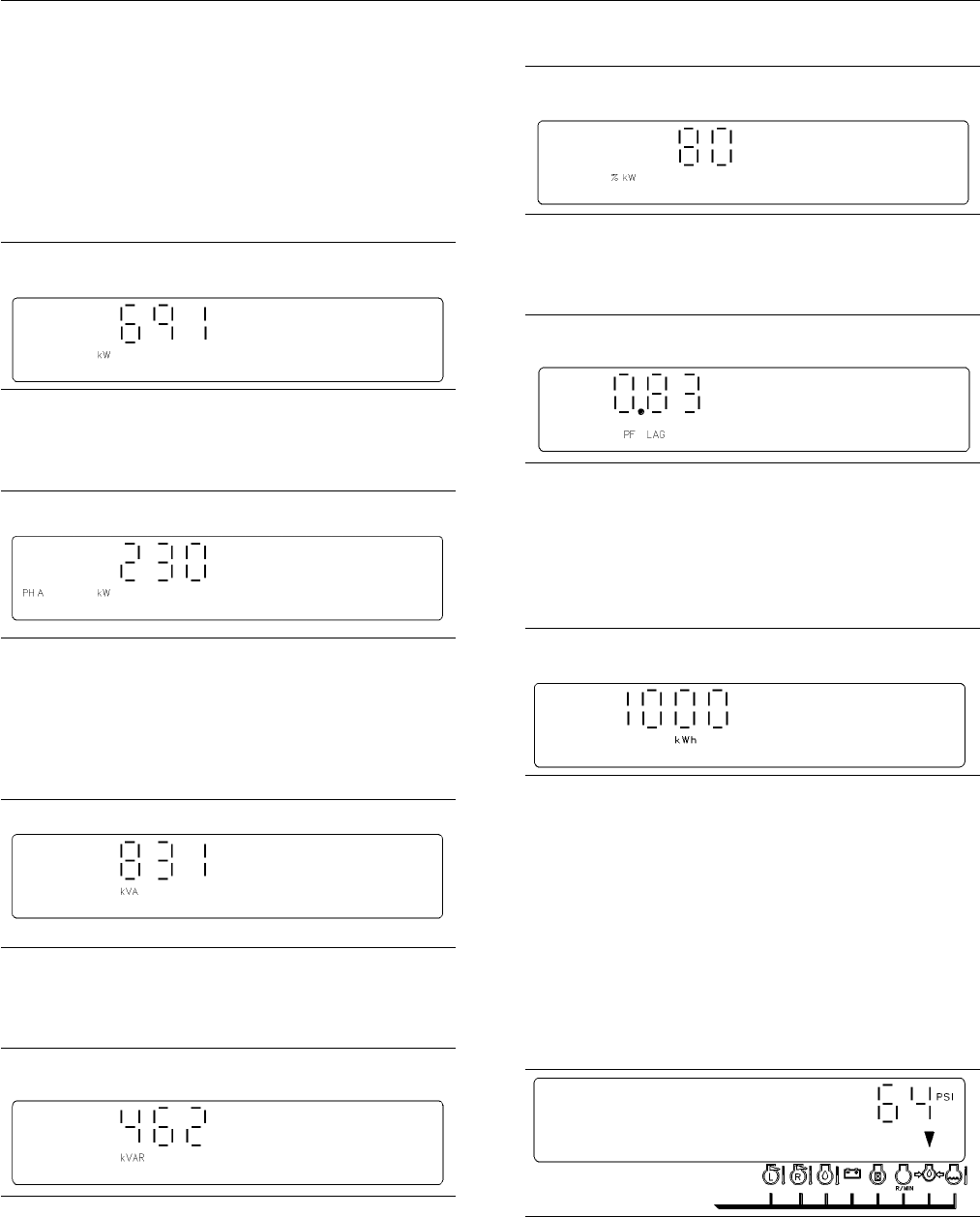

g00394559
Illustration
15
Lower Display Showing:
691 kW, total real power of generator output
g00394561
Illustration 16
Lower Display Showing:
230 kW, real power of phase A
Note: Phase B and phase C can be viewed in a
similar m anner.
g00394562
Illustration 17
Lower Display
Showing:
831 kVA, total apparent power.
g00394563
Illustration 18
Lower Display Showing:
462 KVAR, total reactive power of generator output.
g00394565
Illustration 1
9
Lower Display Sho wing:
80 %kW, percentag e of rated power of generator output
g00394566
Illustration 20
Lower Display Sho wing:
.83 PF, average pow er factor of generator output
Note: You may view the power factor for the
individual phases in a similar manner.
g00394567
Illustration 2
1
Lower Display Sho wing:
1000 kW/h, total energy of generator output.
Note: Total ene
rgy output that is greater than 999,999
kW/h will be shown as MW/h in two steps in order to
maintain a res olu tio n of 1 kW/h. The first ste p w ill
show MW/hm> as
a whole number up to six places.
The second step will show MW/hm> as a decimal to
three places. For example: 1,000,0 01 kW/h w ill be
shown as 1000
MW/h (first step), followed by .001
MW/h (second step).
g00579439
Illustration 22
Lower Display Sho wing:
64 psi en gine oil pressure.
The right side o f lower display (6) shows the value
of certain engine parameters. The parameters are
listed b elow.
