Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 11

Systems Operation Troubleshooting Testing and Adjusting
KENR8601 11
Systems Operation Section
Low Oil Pressure – The engine oil pressure drops
below the setpoints for low oil pressure shutdown
that are programmed into the GSC+P. There are two
low oil pressure setpoints. One setpoint is used when
the engine is at idle speed. The other setpoint is used
when the engine is at rated speed. When a low oil
pressure fault o ccurs, the low o il pressure indicator
FLASHES, and the engine is shut down. The engine
is not allowed to s tart until the fault is corrected.
Emergency Stop – The operator presses the
Emergency Sop Push Button (ESPB) on the front
panel. When an emergency stop condition occurs,
the emergency stop indicator FLASHES and the
engine is shut down. T he engine is not allowed to
start until the condition is corrected.
High Water Temperature – Th e engine coolant
temperature rises above the setpoint for high water
temperature shutdown that is programmed into
the GSC+P. When the high water temperature
fault occurs, t he h igh water temperature indicator
FLASHES. The engine is shutdown and the engine is
not allowed to start until the fault is correc te d.
Engine Overspeed – The engine speed exceeds
the setpoint for engine overspeed that is programmed
into the GSC+P. When the engine overspee d fault
occurs, the engine overspeed indicator FLASHES.
The engine is shutdown and the engine is not allowed
to start until the fault is corrected.
Overcrank – The engine does not start within the
setpoint for total cycle crank time that is programmed
into the GSC+P. When the overcrank fault occurs,
the overcrank indicator FLASHES. The engine is not
allowed to start until the fault is corrected .
Note: TheGSC+Pcanbeprogrammedtooverride
the shutdown for low oil pressure and high water
temperature faults. When the operator overrides
theshutdownfaults,theGSC+Prespondstothe
faults as though the faults are alarm faults. The
corresponding dedicated shutdown indicator is ON
CONTINUOUSLY. The corresponding dedicated
shutdown indicator will not be flashing. The engine
continues to run and the engine continues to start
instead of shutting down. When the dedicated
shutdown indicator is ON CONTINUOU SLY, t he
setpoint for shutdown has been exceeded, but the
GSC+P is programmed to override the shutdown
fault. The GSC+P does not treat the shutdown fault
as a shutdown fault. The GSC+P treats the shutdown
fault as an alarm fault. At the factory, the G S C+P
is programmed to treat a low oil pres s u re fault and
a high water temperature fault as shutdown faults.
The operator or the service technician must decide
to override these shutdown faults. If desired, the
operator or the service technician can program the
GSC+P to treat the shutdown faults as alarm faults.
Upper Display

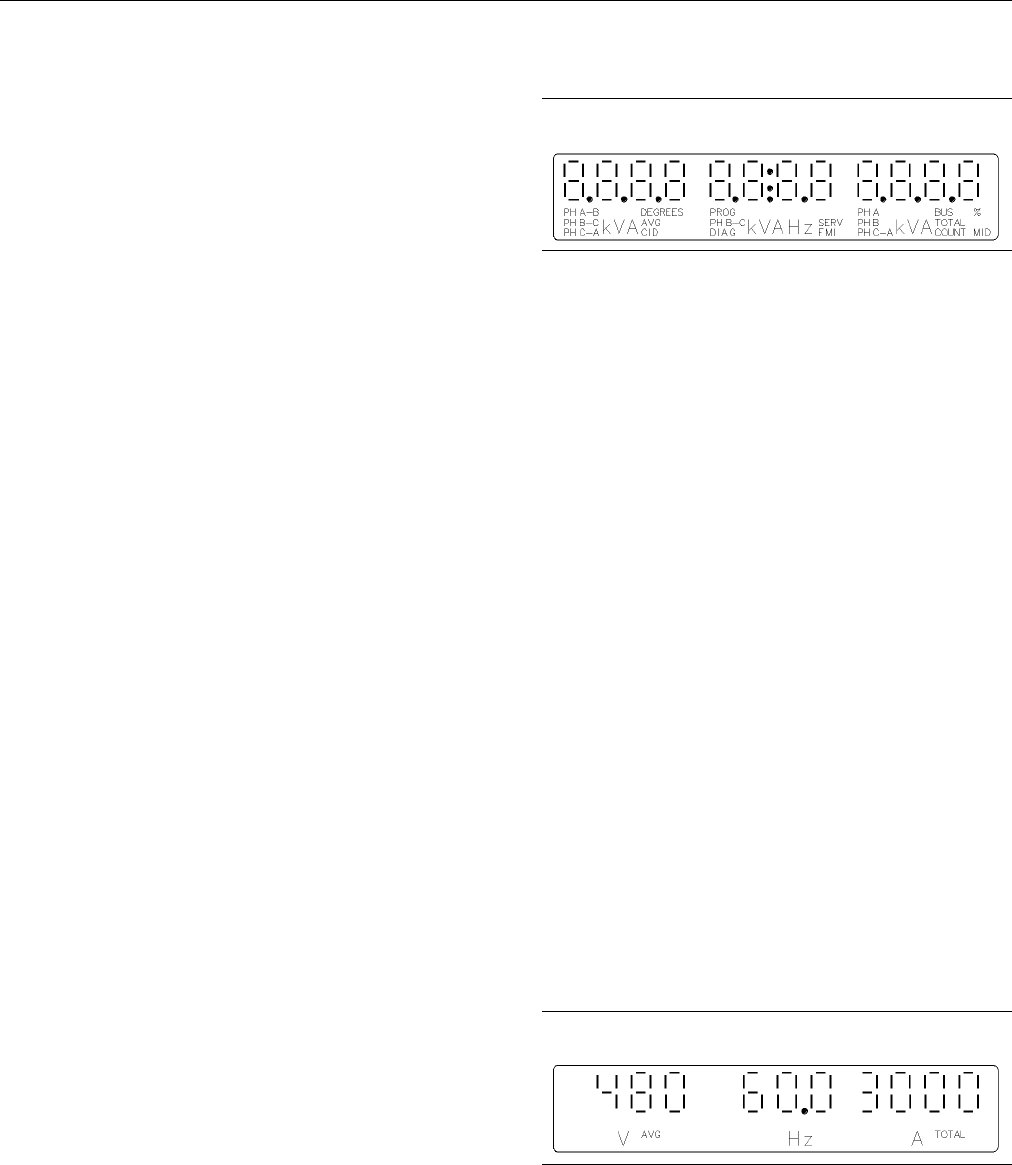

g00521435
Illustration 8
Upper D isplay (5) With All Segments
The primary function of the upper display (5) is
showing the followin g inf ormation of the g enerator
output: AC vol
tage, current, and frequency. Several
options are available on the upper display for AC
metering. These o ptions ca n b e vie wed one at a time
by pressing th
e AC Meter key on the keyp ad. Th e
options are listed below.
•
Voltage (ave
rage), generator frequency, current
(total)
•
Volta ge (lin
e-line), generator frequency, current
(line) for any one phase
•
Voltage (lin
e-line) for all three phases at once
•
Current (line) for all three phases at once
Note: When total current increases above “9999A”,
the GSC+P will show current in “kA” units.
•
Voltage (line-neutral) for all three phases at once
Note: Line-
neutral voltages are not shown when
setpoint “P032” is set to 1 (delta generator sets)
Upper displ
ay(5)isalsousedtoshowthevarious
fault codes for system faults. For mor e info rmation
on fault codes, refer to Systems Operation, “Fault
Descriptio
n”.
g00527264
Illustration 9
Upper Display Sho wing:
480 volts, average line to line voltage of all three phases
60 hertz, generator frequency
3000 amperes, total line current of all three phases
