GSC CID 0336 - FMI 02
SMCS Code: 7332-035
Conditions Which Generate This Code:
g01437916

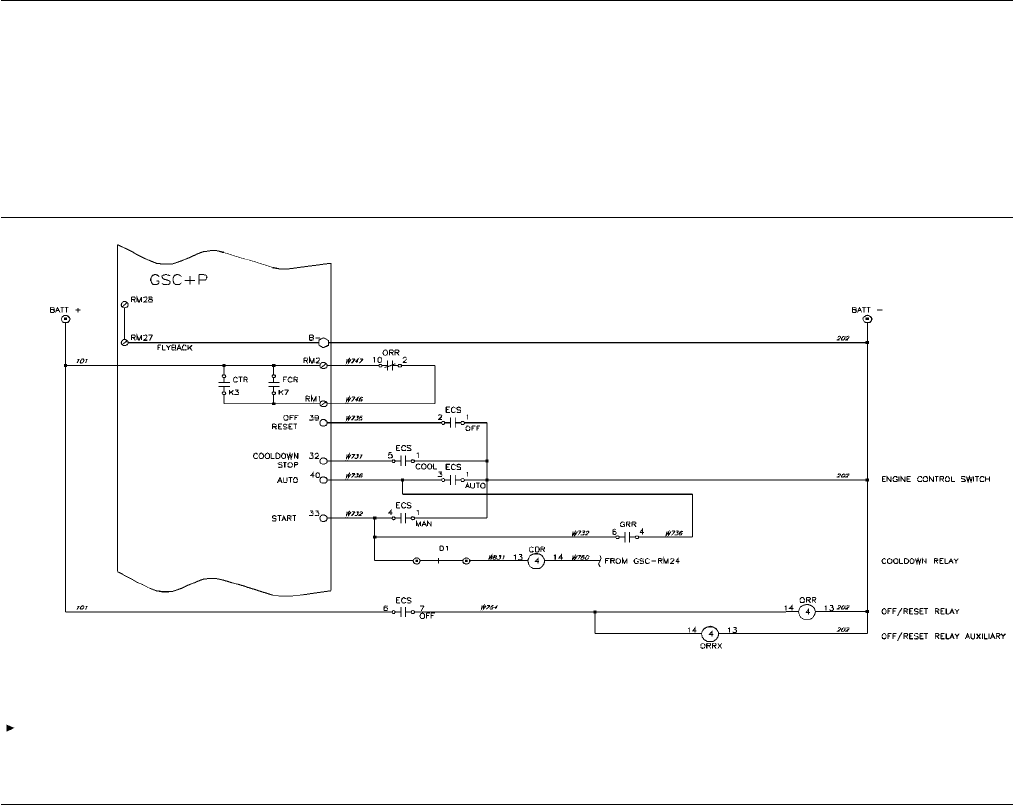

Illustration 72
Simplified schematic for The Engine Control Switch ( ECS)
The Eng in e Control Swit ch (ECS) is used by the
operator for manually controlling th e engine. The
ECS has four positions and each position connects
to a corresponding input of the GSC+P. The selected
position of the ECS connects the corresponding
input of the G SC+P to the negative battery terminal
“BATT-”. At any time, only one of these four positions
(inputs) is connected to the “BATT-”.
Each position of the ECS p laces the engine in
a different mode. The four positions and the
corresponding modes are described in the following
paragraphs.
“OFF/RESET” – The engine is shut down and
the GSC+P is reset. The upper display and fault
indicators on the left side are temporarily cleared.
“AUTO” – The engine starts and the engine runs
when the r emote start/s top initiate contact closes
the start input that is located on th e GSC+P. The
GSC+P closes the remo te start/stop initiate contact
to “BATT-”. Also, the engine starts and the en gine
runs when the Customer Communication Module
(CCM) sends a remote start command. At this time,
the GSC+P starts the engine. The engine runs
normally until the remote start/stop initiate contact
opens. Also, the engine runs normally until the CCM
sends a remote stop command. The engine enters
a cooldown period. After the cooldown period, the
engine is shut down. The G SC+P shows diagnostic
codes on the upper display and on the fault indicators
as the diagnostic c od e o ccu rs. T he G S C+P is ON
with the ECS in this p osition.
“MAN/START” – The engine starts and the
engine runs until the operator turns the ECS to the
OFF/RESET position or the COOLD OW N/STOP
position. The engine starts and the engine runs until
the GSC+P detects a shutdown fault. The GSC+P
shows diagnostic codes on the upper display and on
the fault indicators as the diagnostic code occurs.
The GSC+P is ON with the ECS in this position.
