Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 109

Systems Operation Troubleshooting Testing and Adjusting
KENR8601 109
Troubleshooting Section
•
Systems Operation, “Voltmeter/Ammeter
Programming OP 8”
STOP.
i02896489
GSC CID 0269 - FMI 03
SMCS Code: 4490-035-NS
Conditions Which Generate This Code:

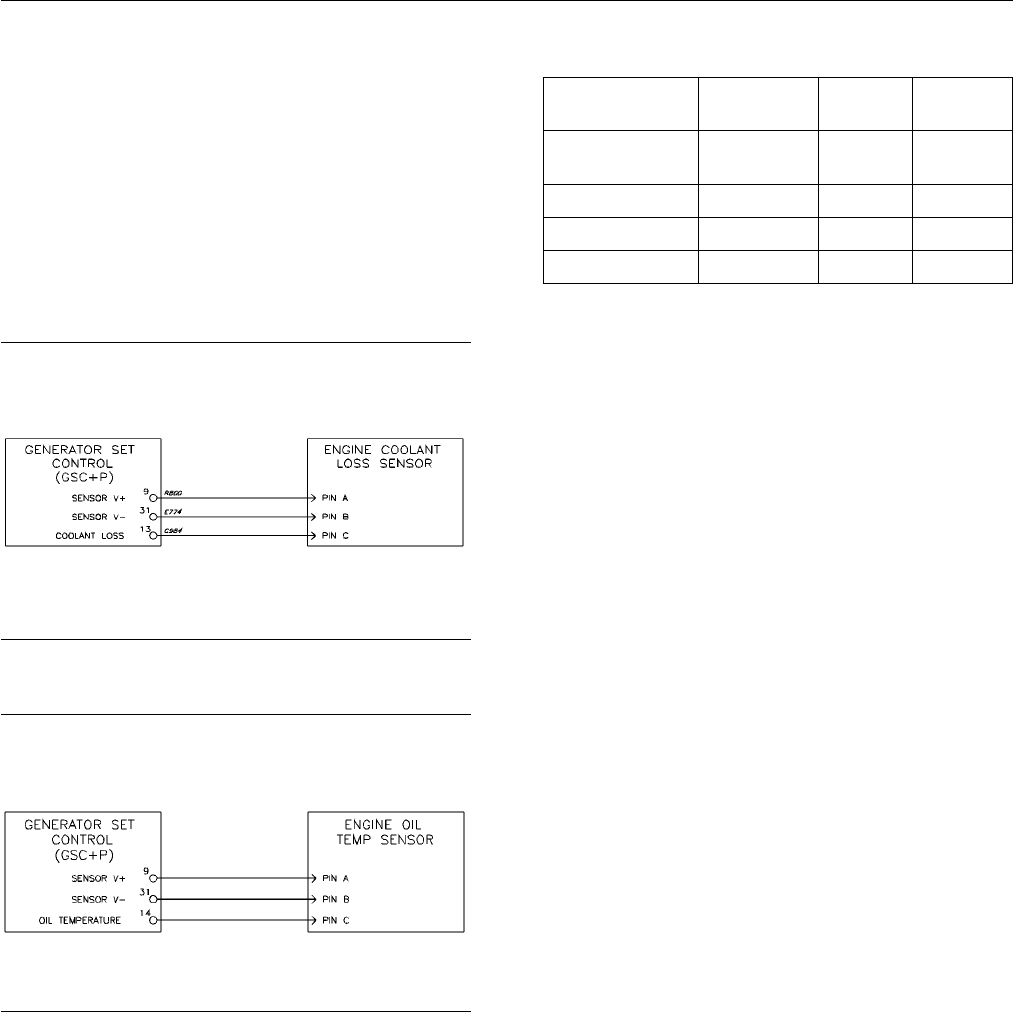

g01442559
Illustration 64
Schematic for the coolant loss sensor
g01442566
Illustration 65
Schematic f or the oil temperature sensor
The EMCP II+P has a sensor supply voltage of
8 DCV from the GSC+P that powers the engine
sensors. Th e sensors m ayvaryaccordingtothe
engine. Ref er to tabl e 21 in order to determine the
sensors that are on your engine.
Ta bl e 2 1
Sensor
MUI
Engines
EUI
Engines
PEEC
Engines
Coolant
Temperature
Yes No Yes
Oil Pressure
Yes No Yes
Coolant Loss
Yes Yes Yes
Oil Temperature
No Yes Yes
The engine oil temperature sensor is optional. The
engine coolan
t fluid level sensor is optional.
The sensor power supply functions whenever power
is applied to
the GSC+P.
The GSC+P is usually programmed in the factory.
The GSC+P dea
lswithaproblemwiththesensor
power supply CID 0269 FMI 03 as an alarm fault.
P004 = 0. If the GSC+P is programmed to shutdown,
P004 is equal
to 1 for a problem with the sensor
power supply. It is not necessary to press the “Alarm
Codes” key in order to view the CID 0269 FMI 03.
The CID 0269
FMI 03 is automatically shown on the
upper display.
Diagnostic
codes are created when the harness
connector is disconnected from the GSC+P during
these troubleshooting procedures. Clear these
created di
agnostic codes after the particular problem
is corrected and the particular diagnostic code is
cleared.
The possible cause of a CID 0269 FMI 03 happens
when the voltage of the sensor power supply is
greater t
han 8.5 DCV.
Begin performing these procedures only when
CID 0269 F
MI 03 is showing and the “DIAG”
indicator is FLASHING on the upper display. The
GSC+P treats a CID 0269 FMI 03 as an alarm
fault. Ac
tive alarm faults are shown on the upper
display when the “Alarm Codes” key is pressed and
the Engine Control Switch (ECS) is in any position
except t
he OFF/RESET position. For an inactive
diagnostic code, the problem m ay be intermittent.
To troubleshoot an inactive diagnostic code, use the
precedi
ng system schematic and Refer to Testing
And Adjusting, “Electrical Connector - Inspect”.
Clear the diagnostic code from the fault log after the
troubl
eshooting procedure is completed.
CHECK T HE GSC+P.
A. Disconnect the harness from the GSC+P.
B. Turn th
e E CS to OFF/RESET and then turn the
ECS to the STOP position.
C. Press t
he “Alarm Codes” key.
