Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 69

Systems Operation Troubleshooting Testing and Adjusting
KENR8601 69
Systems Operation Section
•
Low oil pressure shutdown
•
High coolant temperature shutdown
•
Overcrank
•
Overspeed
•
Diagnostic fault (GSC+P)
•
The Engin e Control Switch (ECS) is NOT in AUTO.
Application G uidelines
Lamp Test
When a lamp test signal is received, the CIM
activates all outputs for 10 seconds. The CIM
deactivates the outputs early if the lamp test signal
is deactivated. Two lamp test signals are possible.
When either of the following conditions are present,
the lamp test of the CIM is activated.
•
Terminal 5 is con nected to terminal 7 of electronic
control (2).
•
The GSC+P lamp test signal is receiv ed over the
data link.
Note: When terminal 6 is connected to terminal 7 of
the electronic c ontrol (2), the CIM ignores the GSC+P
lamp test signal.
Outputs
•
The relays that are on the relay board (1) are
protected by f uses. The contacts are flashed with
silver. T h e co nt acts are r at ed a t 1 amp 28 D C V.
Therelaysdraw20mAat24DCV.
•
The outputs that are from the driver of the electronic
control (2) are intended to drive the incandescent
lamps or the driver outputs are intended to drive
the relay loads. The driver outputs will consume a
maximum of 600 mA when the voltage is 15 DCV
to 45 DCV.
Specifications
•
For installation of the CIM, the maximum distanc e
that is between the electronic control (2) and the
GSC+P is 305 m (1000 ft).
•
The operating voltage range is from 15 DCV to 45
DCV. 24 DCV is the nominal voltage.
•
The CIM is capable of operating with earth ground
or operating without earth ground.
•
The terminals that are located on the electronic
control are blade type connectors (push on)
6.4 mm ( 0. 25 inch).
•
Connections that may be used by the customers at
the relay board (1) are 6-32 screw terminals.
i02899537
System Communication
Module (Customer)
SMCS Code: 1926
g00329183

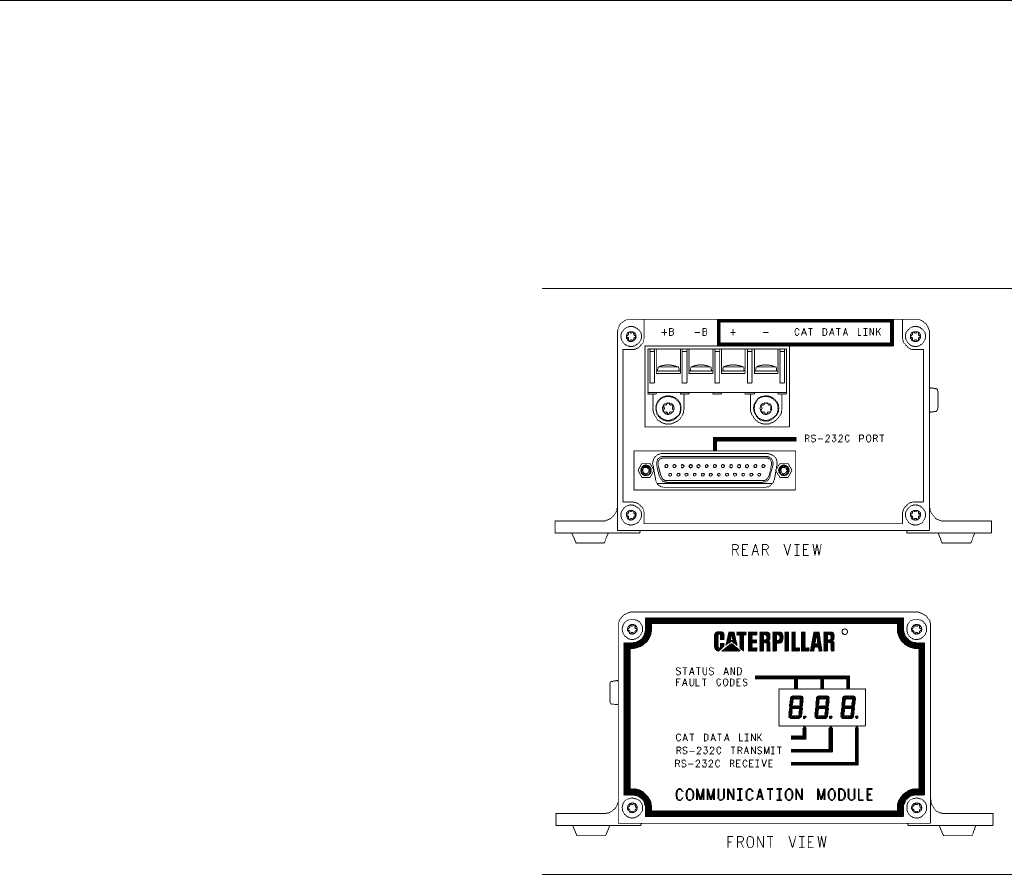

Illustration 49
Customer Communication Module (CCM)
The Customer Communication Module (CCM)
provides a commu nication link b etween the GSC+P
and the host computer of the customer. The CCM
converts data from the standard RS-232C format to
the CAT Data Link format. The CCM can also convert
data from the CAT Data Link format to the standard
RS-232C format. R S-232C cable is available at most
stores that sell electronics. Caterpillar’s 146- 848 8
RS-232C Cable is a suitable cable. The CCM allows
an operator to remotely control the same information
that is available on the GSC+P display at the host
computer.
The CCM can remotely control the following functions
whentheGSC+Pisinthenormalmodewiththe
Engine Control Switch (ECS) in the AUTO position.
•
Start the engine.
•
Stop the engine if the remote start/stop contact is
not closed.
