Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 17

Systems Operation Troubleshooting Testing and Adjusting
KENR8601 17
Systems Operation Section
i02897868
Instrument Panel
SMCS Code: 4490; 7451
g01443947

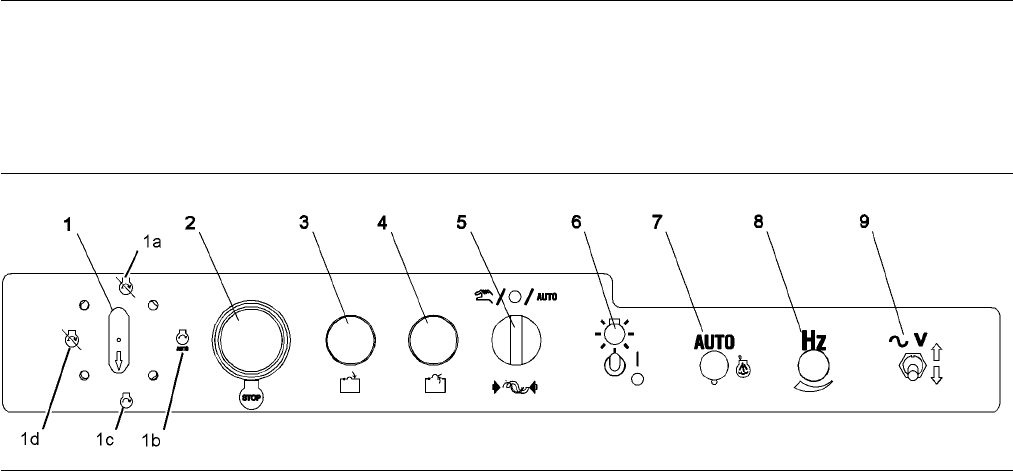

Illustration 27
Instrument Panel Switches
(1) Engine Control Switch (ECS)
(2) Emergency Stop Push button (ESTOP)
(3) Circ uit Breaker Close Push button
(CBCPB)
(4) Circuit Breaker Open Push button
(CBOPB)
(5) Paralleling Control Switch (PCS)
(6) Panel Light Switch (PLS)
(7) Ether Starting Aid Switch (ES)
(8) Speed Adjust Potentiometer (SAP)
(9) Voltage Adjust Switch (VAS)
The Engine Control Switch (ECS) (1) determines the
status of the control panel. In the AUTO position (1b),
the GSC+P allows the operator to remotely control
the generator set via customer supplied contacts.
Also, the G SC+P allows the o pe rat or to remotely
monitor the generator set via customer supplied
contacts. The GSC+P allows the engine to start
whenever the remote initiating contact is closed. The
engine shuts down after the remote initiating contacts
open.
A cooldown period for the engine is programmable
for 0 to 30 minutes. The cooldown period allows the
engine to cool before the engine shuts down. The
cooldown period for the engine is set for five minutes
at the factory. The engine starts and the engine runs
while the ECS is in the MANUAL STA RT positio n
(1c). In the COOLDOWN/STOP position (1d), the
engine shuts down after the programmed cooldown
period. In the OFF/RESET position (1a), the engine
shuts down immediately. Also, any fault indicators
arereset.AnactiveEmergencyStopPushButton
(ESTOP) will not be reset until the ESTOP button is
pulled out.
If the red ESTOP (2) is pressed, the power is
removed from the engine ECM. The operator must
pull the ESTOP (2) button out in orde r to to restart
the engine. Next the operator must turn the ECS to
OFF/RESET and then turn the E CS to the MANUAL
START.
The Circuit Breaker Close Push Button (CBCPB) (3)
is used to manually close the circuit breaker when
operating the GSC+P in the MANUAL/PARALLELING
mode. Th e CBCPB is also an illumina te d button.
The CBCPB will illuminate when the circu it breaker
is closed.
The Circuit Breaker Open P ush button (CBOPB) (4)
is used to manually open the circuit breaker. The
CBOPB is a lso an illuminated button. The CBCPB
will illuminate whe n the circuit bre ak er is o pen.
The Paralleling Control Switch (PCS) (5) controls
the paralleling operation of the generator. Refer
to Systems Operation, “Paralleling Mode” for a
description of th e paralle ling functions.
The Panel Light Switch (PLS) (6) turns ON the panel
lights and turns OFF the panel lights.
The Speed Adjust Potentiometer (SAP) (8) is used
to raise the engine s peed. The SAP is also used to
lower the engine speed.
The Voltage Adjust Switch (VAS) (9) is used to raise
the generator voltage. The VA S swi tch is also used
to lower the generator voltage.
