Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 142

Systems Operation Troubleshooting Testing and Adjusting
142 KENR8601
Troubleshooting Section
D. Measure the resistance between the wire that wa s
disconnected from pin 34 of the GSC+P and pin
10 of the kW relay.
Expected Result:
The resistance is 480 ohms ±48 ohms.
Results:
•
OK – The resistance is between 430 and 530
ohms. It is unlikely that the GSC+P has failed.
Repair: It is unlikely th at the GSC+P has failed.
The system may need to be reset. R eset the
system by turning the Engine C on trol Switch (ECS)
to the OFF/RESET position. E xit this diagnostic
code procedure and repeat the CID 0859 FMI 03
diagnostic c ode procedure again. If the cause o f
the failure is still unknown, replace the GSC+P.
Refer to Testing And A djusting, “EMCP Electronic
Control (Generator Set) - Replace”
STOP.
•
NOT OK – The resistance is les s than 430 ohms
or the resistance is greater than 530 ohms. The
resistance is NO T correct.
Repair: The kW relay is faulty or there is a short
between the wire disconnected from pin 34 of the
GSC+P and “BATT+”. Replace the kW relay or
repair the wiring.
STOP.
i02901055
GSC CID 0859 - FMI 04
SMCS Code: 4490-035
Conditions Which Generate This Code:

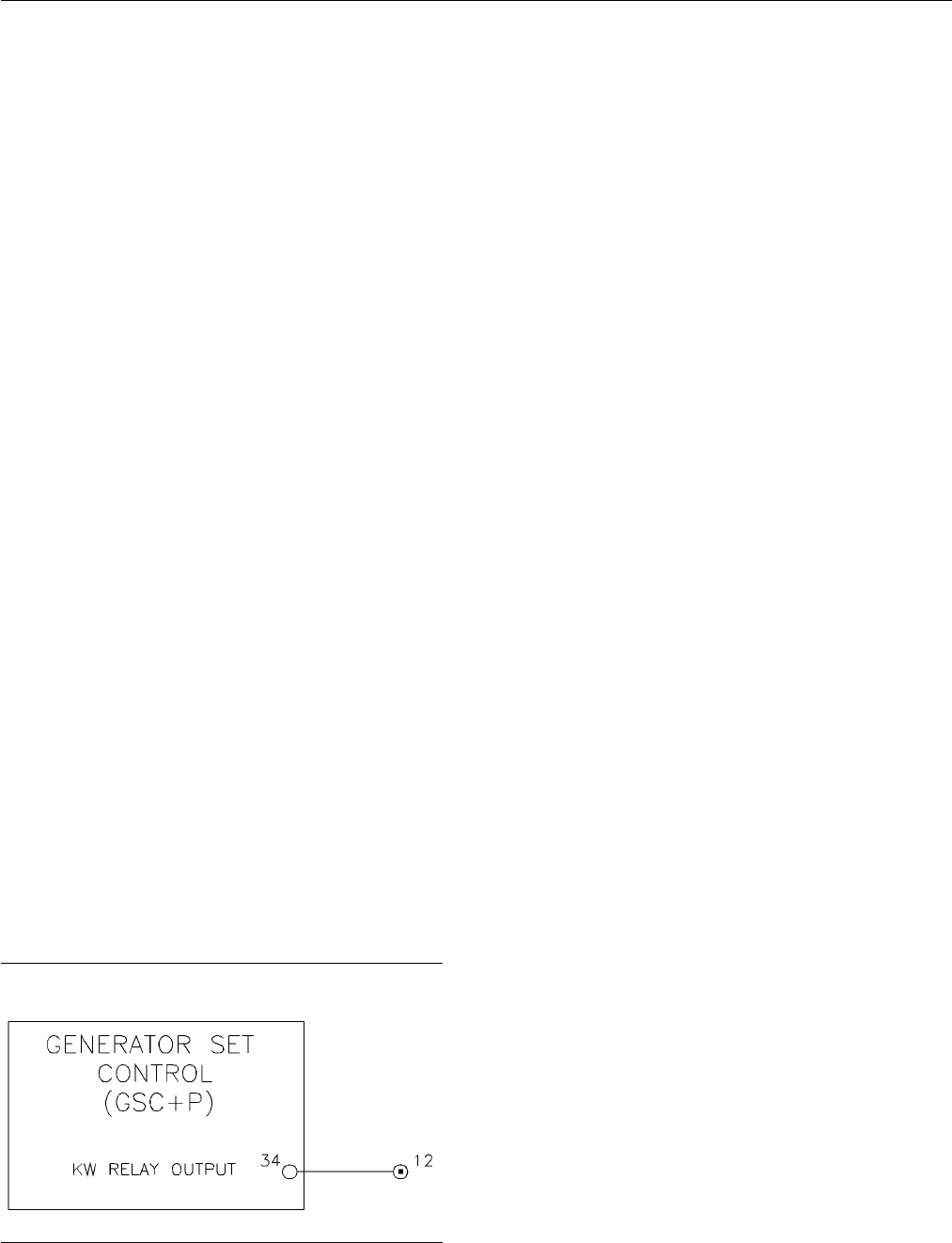

g01444276
Illustration 78
System Schematic For kW Level Output
The kW level output will be activated whenever
the total power output of the generator ex ceed
the s etpoint P139. The kW level output is the pin
34 of the GSC+P connector. This setpoint can be
programmed from 0 to 110 percent of the rated
power on the nameplate (setpoint P030). This
setpointcanbeprogrammedwithatimedelayfrom
0 to 120 seconds (setpoint P140). Refer to System
Operation, “Engine/Generator Programming OP5-0”.
Also, refer to System Operation, “Service Mode”.
Once the output is activated, the kW level output
will be deactivated when the total power output of
the generator drops below the programmed setpoint
(setpoint P141). This setpoint is different from the
activation setpoint. This setpoint can be programmed
from 0 to 110 percent of the power rating on the
nameplate of the generator. This setpoint can be
programmed with a time delay from 0 to 120 seconds.
When kW relay is disconnected from the GSC+P, the
voltage on the kW level output is approximately 5.0
DCV. When kW relay is connected to the GSC+P,
the voltage on the kW level output is approximately
0 volts. The kW level output is capable of drawing
(sinking) approximately 100 mA. Documenting and
troubleshooting any connections to this output is the
responsibility of the custome rs and the dealers.
The possible cause of a CID 0859 FMI 04 is a short
to the “BATT-” circuit of the kW level output.
TheGSC+PtreatsaCID0859FMI04asanalarm
fault.
Troubleshooting of this failure is straight forward.
The FMI 04 defines the diagnostic code as a sho rt to
“BATT-”. Use the following info rmation in order to find
the exact cause of the diagnostic code.
•
FMI information
•
The system schematic of the kW level output
•
customer’s documentation
•
dealer’s documentation
Tes t Step 1. CHECK THE GENERATOR
SET CONTROL
A. Verify that the CID 0859 FMI 04 diagnostic code
is active.
B. Disconnect the wire from pin 34 of the GSC+P.
Expected Result:
The diagnostic code becomes inactive.
