Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 124

Systems Operation Troubleshooting Testing and Adjusting
124 KENR8601
Troubleshooting Section
Te st Step 5. CHECK IF THE DIAGNOSTIC
CODE IS STILL ACTIVE
A. Clean the contacts of the harness connectors.
Refer to Testing and Adjusting, “Electrical
Connector - Inspect”.
B. Reconnect all of the harness connectors.
C. Clear all diagnostic codes from the fault log.
D. Operate the engine.
E. Determine if the diagnostic code is active.
Expected Result:
The diagnostic code is NOT active.
Results:
•
OK – The diagnostic code is NOT active.
The problem does not exist at this time. The
initial problem was probably caused by a poor
electrical connection or a short at one of the
harness connectors that was disconnected and
reconnected. Resume normal operation and watch
for a recurrence. STOP.
•
NOT OK – The diagnos tic code is active.
Repair: The problem has not been corrected. It is
unlikely that the ECS has failed. Exit this procedure
and perform this procedure again. If the cause of
the diagnostic code is not found, replace the ECS.
STOP.
i02890206
GSC CID 0441 - FMI 12
SMCS Code: 4490-035-R7
Conditions Which Generate This Code:

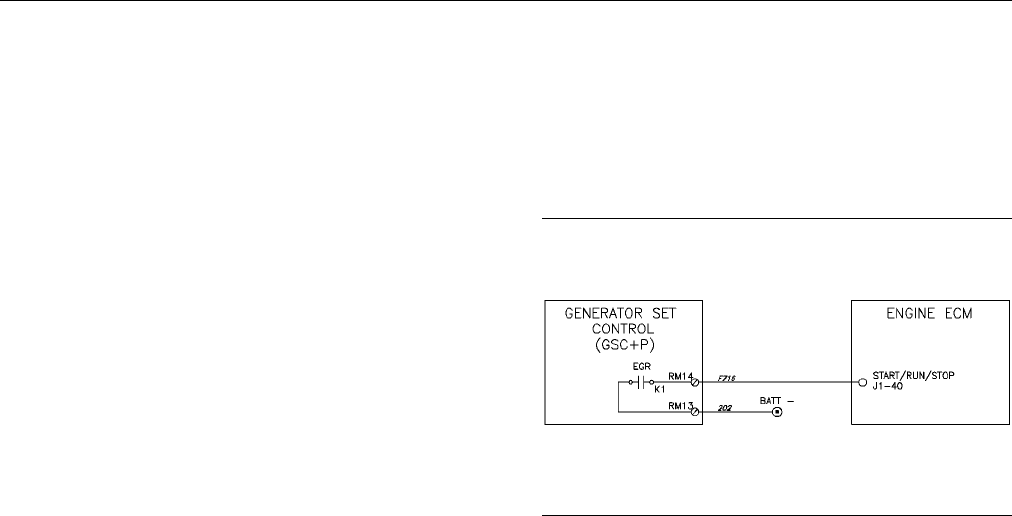

g01439320
Illustration 73
System Schematic For Electronic Governor Relay (EGR)
The GSC+ P uses the Electronic G overnor Relay
(EGR) to signal the Engine Control Module (ECM) to
begin injection. The GSC+P activates the EGR when
the engine oil pressure is greater than the setpoint
for low oil pressure shutdown at idle speed (“P014”).
Also, “K1” will be present on the lower display. This
closes the relay contacts of the EGR. The output
for the EGR is rated at 1 amp. The EGR is located
within the relay module.
Note: Whenever the GSC+P activates or the GSC+P
attempts to activate the EGR, “K1” is sho wn on the
lower display. When the EGR is not activated, “K1” is
not shown.
The possible causes of this diagnostic code are
listed:
•
The EGR has an open coil or a shorted coil.
The results to this diagnostic code are listed:
•
If CID 0441 FMI 12 occurs during the activation of
the EGR, the ECM will st op the fuel injection an d
the engine will shut down immediately.
•
If CID 0441 FMI 12 occurs and the EGR is not
activated, the engine will be unable to start.
Note: Clear the diagnostic code from the fault log
after trou bleshooting is complete. The GSC+P treats
a CID 0441 FMI 12 as an alarm fault. Press the
“Alarm Codes” key in order to display active alarm
faults. The active alarm faults will be displayed when
the Engine Control S witch (ECS) is placed in any
position except the OFF/RESETposition.
