Alarm M odule Control
(Custom)
SMCS Code: 4490
g00321237

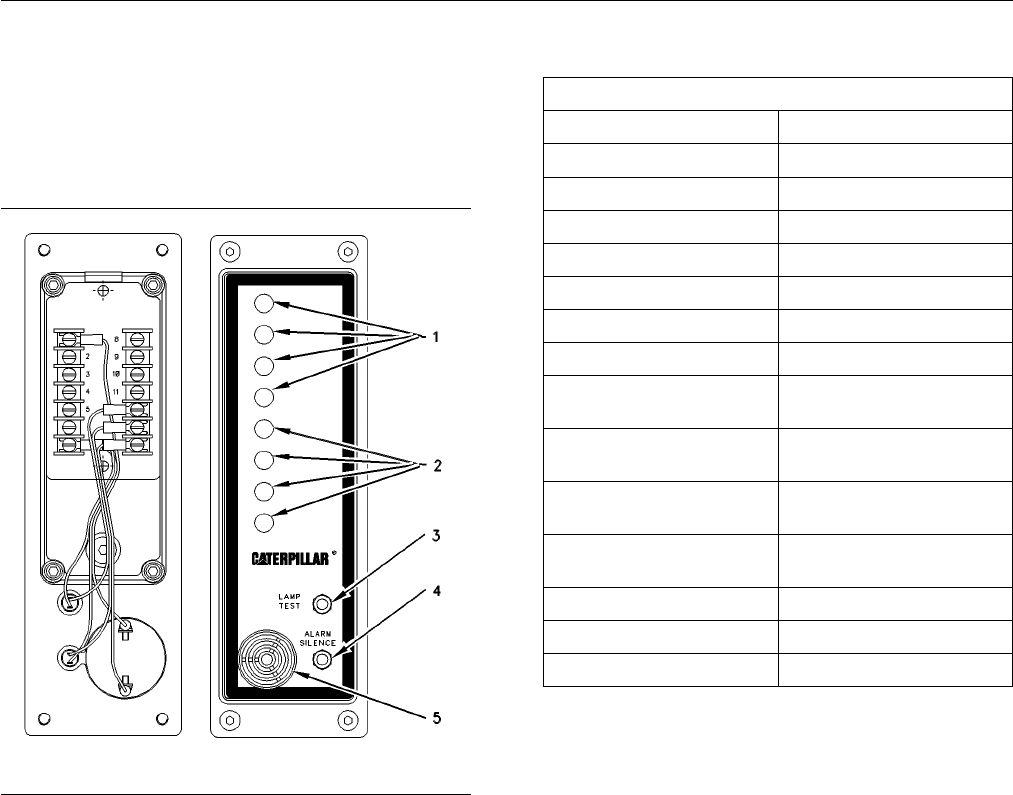

Illustration 47
Custom Alarm Module (CAM)
(1) Amber indica tors. (2) Red indicators. (3) Lamp test switch. (4)
Alarm silen ce switch. (5) Horn.
Ta bl e 1 4
Connections For Customer Alarm Module
Screw Terminal Signal Name
1
“BATT+”
2 Not Used
3
Input 5 - Indicator 5 (Red)
4
Input 6 - Indic
ator 6 (Red)
5
Input 7 - Indicator 7 (Red)
6
Input 8 - Indicator 8 (Red)
7
“BATT-”
8 Input 1 - Indicator 1
(Amber)
9 Input 2 - Indicator 2
(Amber)
10 Input 3 - Indicator 3
(Amber)
11 Input 4 - Indicator 4
(Amber)
12 Lamp Test
13
Horn Silence
14 Horn output
The CAM is an attachment that can be mounted at a
remote location. The CAM annunciates faults, alarms
or other con
ditions. Customer supplied inputs give
the CAM this info rmation.
The CAM oper
ates when the CAM is pow ered by a
24 DCV battery system or a 32 DCV battery system.
The CAM is equipped with a horn, an alarm silence
switch and a
lamp test switch. 8 switched inp u ts are
also provided for the customer to use.
Note: A bas
ic version of the CAM also exists. The
basic version does not have a horn, an alarm silence
switch or a lamp test switch. The basic CAM should
be used wit
h an existing fully equipped CAM or an
ALM.
Alarm Operation
Agivensw
itch input w ill correspond to 1 of 8
indicators on the face of the CAM. The indicators will
FLASH at a rate of 2 hertz when the corresponding
input is c
losed to the battery negative terminal.
The red indicators are used to display shutdown
conditions, and the amber indicators are used to
display
alarm conditions.
