Caterpillar Engine Tools Cat Overhaul 3512 Page 99

Operation and Maintenance Manual

Page of 420

/ 420

2590023

2590041

2590058

3-99

Engine Tools

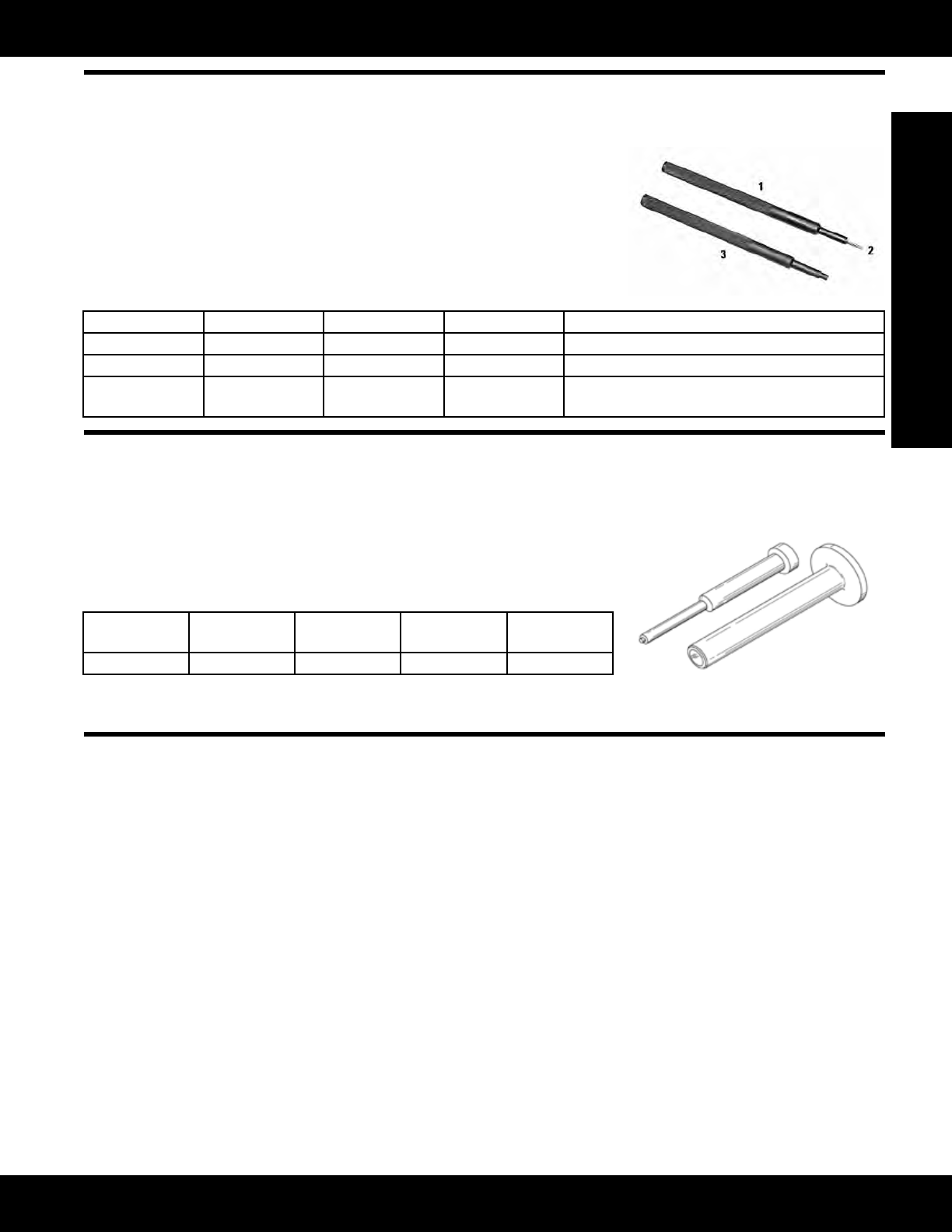

Cylinder Block and Liners

Drivers

Model: 3200

Warranty: Six Months

• Usedforinstallingpistoncoolingoricesandplugs

Item Part Number Description Model Use

2 6D-3039 Pin -- --

3 6V-7771 Driver 3208 Install piston cooling jet plugs

1 6V-7772 Driver 3204 and 3208 Springpininendofdriverhelpsholdoriceon

tooluntilitisdrivenintoplace

198-9113 Seal Installer

Essential Tool

Model: 3034 Engine

Warranty: Six Months

• Used to install rubber seal in front and rear main bearing cap

• Reduces risk of damage to seal’s metal core

Reference

3034EngineServiceManual

Part Number Description Overall Length

Diameter of

Large End

Diameter of

Small End

198-9113 Seal Installer 165 mm (6.5 in) 50.8 mm (2 in) 25.4 mm (1 in)

5P-8595 Honing Tool Group

Model: 6.25 inch Bore, 6-Cylinder Diesel Engines

Warranty: Six Months

• Used to recondition cylinder liners on 158.75 mm (6.25 in) bore, 6-cylinder diesel engines (D398, D379, D399, D353)

• WhenlaterpistonswithKeystoneringsareinstalledinearlierengines,honingoperationnecessarytoremovelinerwear

ridge and produce smooth surface

• FT1371HoldingFixtureholdscylinderlinerswhenhoning;providescradlefor3/4inch(375RPM)drill

Reference

SMHS7220, Special Instruction

(Continued)
