Engine Tools

Cooling System

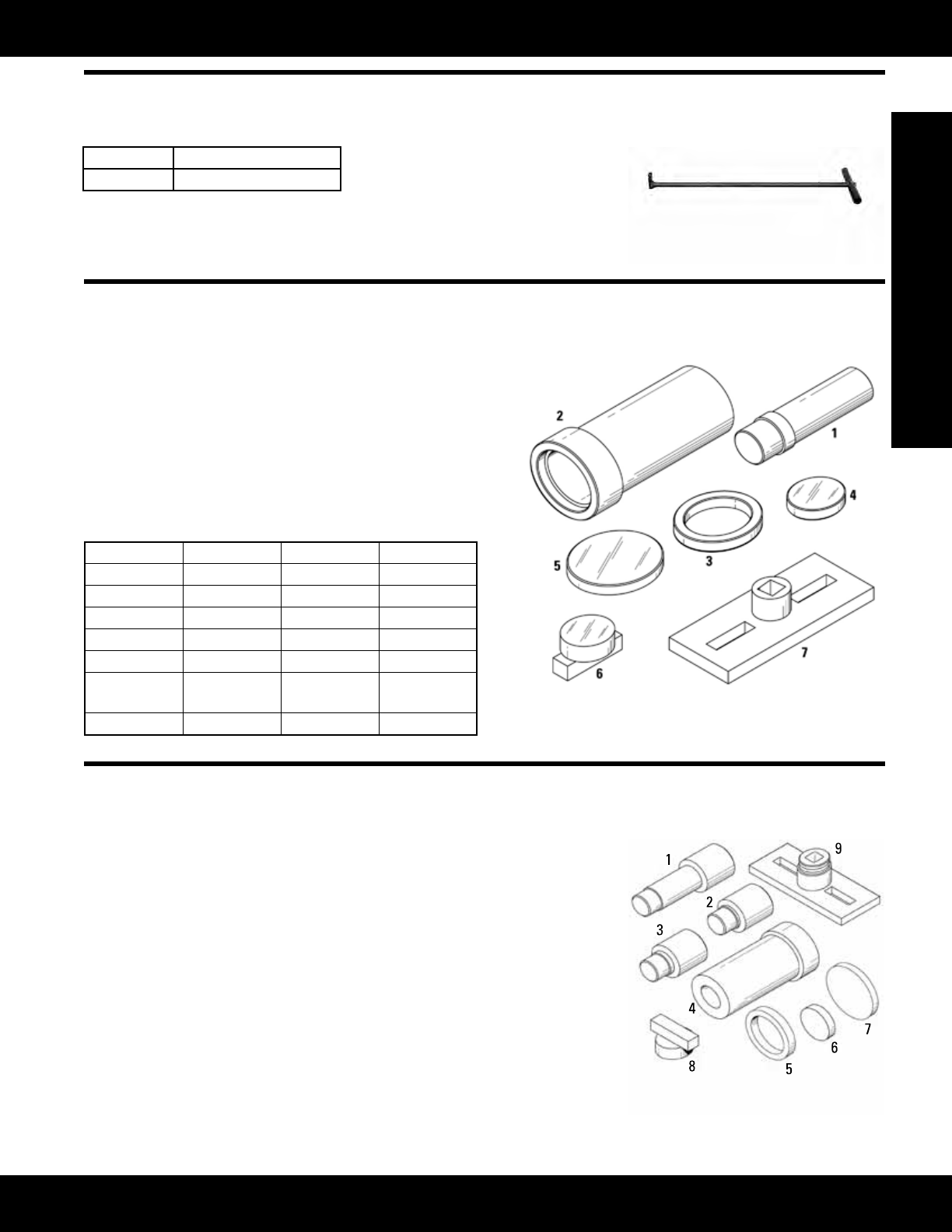

2S-9528 Blade Reversing Tool

Model: Multiple Engine Models

Warranty: Six Months

• Used to change fan blade pitch on

machinesequippedwithreversible

fan blades

Part Number Description

2S-9528 BladeReversingTool

Tooling for Variable Speed Fan Clutch on Trucks

Model: Multiple Engine Models

Warranty: None

• Providestoolingneededtodisassembleandassemble

variablespeedfanclutchon768C,769C,771C,772B,773B,

775B, 784B, 785B, 789B, and 793B Trucks

• FT2461 and FT2467 used to disassemble and assemble

6I-4427 and 123-6968 Fan Clutches

• FT2464 and FT2465 Plates used to disassemble and as-

semble 100-8105 and 129-9494 Fan Clutches which are

both replaced by 133-5969 Fan Clutch

Reference

SENR8603-01, Variable Speed Fan Clutch

Item Part No. Description Material

1 FT2461 Pressing Bar SAE 4140 steel

2 FT2462 Pressing Tube SAE 4140 steel

3 FT2463 Ring SAE 4140 steel

4 FT2464 Plate SAE 4140 steel

5 FT2465 Plate SAE 4140 steel

6 FT2466 Mounting

Plate

SAE 4140 steel

7 FT2467 Rotating Plate

Disassembly and Assembly Tooling for 200 Rockford Fan Clutch

Model: Multiple Engine Models

Warranty: None

• Used to disassemble and assemble 183-5116 (200 Series Rockford) Variable

Speed Fan Clutch on D9R (s/n ABK and ACL) and D10R (s/n 3KR and AKT) Track-

Type Tractors

• Heat treat FT2814 through FT2820 to RC 38 to 42

Reference

SENR8603-01, Variable Speed Fan Clutch

(Continued)
