Caterpillar Engine Tools Cat Overhaul 3512 Page 269

Operation and Maintenance Manual
2925031
2647708
3-269
Engine Tools
Fuel System Repair and Adjust

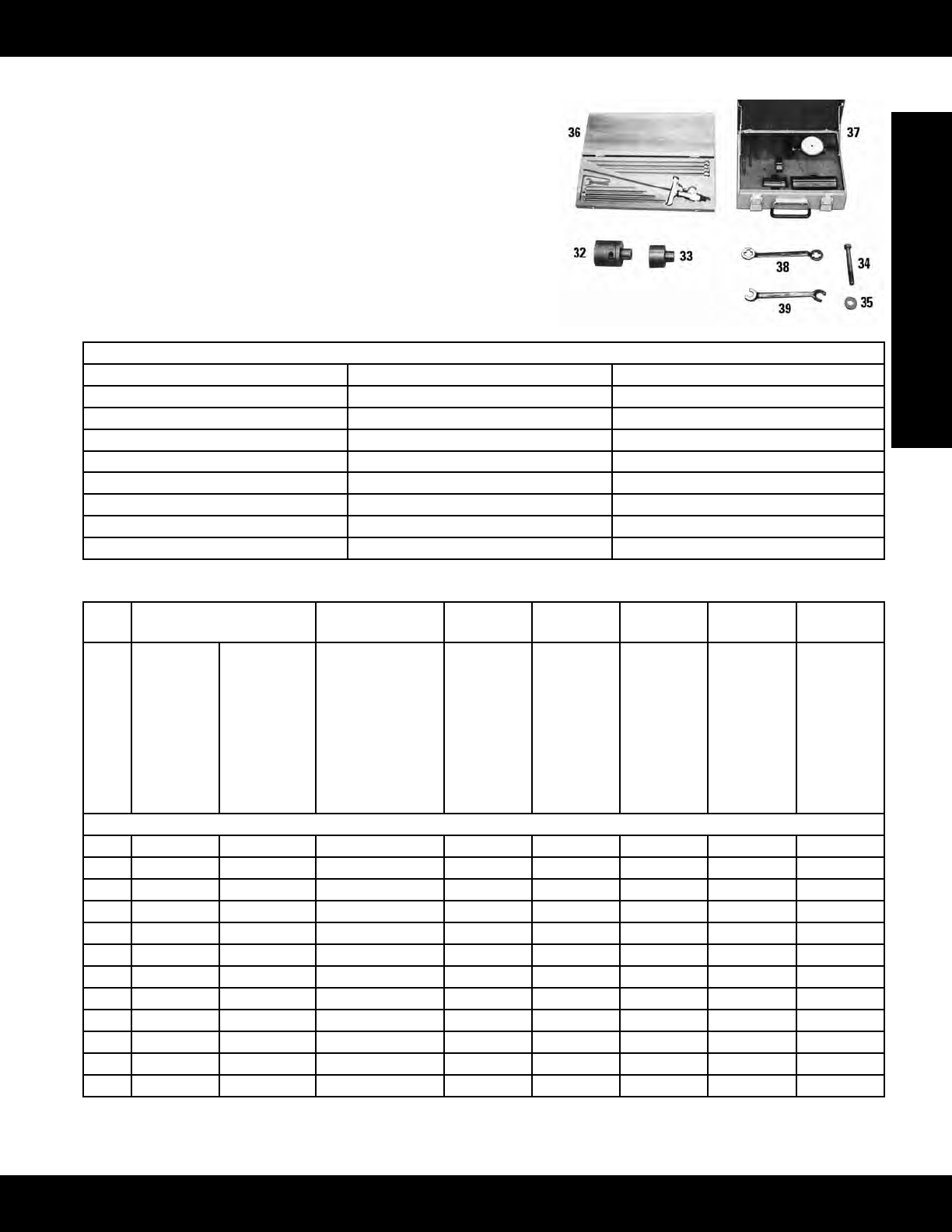

Additional Tools Needed But Not Included in 6V-4180 Group
Additional Tools Needed But Not Included in 6V-4180 Group
Item Part Number Description
32 5P-6570 Shaft
33 8S-2272 Shaft Assembly
34 1B-3680 Bolt
35 3F-1417 Washer
36 6V-2012 Gauge Group
37 6V-7926 Indicator Group
38 9M-4567 Wrench
39 9M-4568 Wrench
Application Charts for 6V-4180 Tool Group
Components of 6V-4180 Tool
Group (Fig. 1)
Item Part Number Description
D311, D312, D315,
D318, D339, D342,
D364, D375, D386,
D397, D468, D3400,
D4400, D4600,
D6100, D6600,
D7700, D8800,
D11000, D13000,
D17000
D326, D337,
D343, 619C,
824A, 1693
D346, D348,
D349 D349
D379, D398,
D399
641, 650, 651,
657, 660, 666
Forged Body Fuel System
2 5P-6574 Shaft -- -- 1 -- -- --
3 5P-6564 Shaft -- -- -- -- 1 --
5 5P-6568 Shaft -- -- -- 1 -- --
9 2S-6160 Washer 1 1 1 -- 1 1
11 0S-1594 Bolt 1 -- 1 1 1 --
12 0S-0509 Bolt (3/8 - 16) 1 1 1 -- 1 --
13 0S-1617 Bolt -- 1 -- -- -- --
18 1P-7415 Pointer 1 -- 1 -- -- --
19 5P-6572 Shaft -- 1 -- -- -- --
31 1P-7410 Degree Wheel 1 1 1 1 1 1
38
1
9M-4567 Wrench 1 -- -- 1 1 --
39 9M-4568 Wrench 1 1 -- 1 1 1
(Continued)
