Caterpillar Engine Tools Cat Overhaul 3512 Page 404

Operation and Maintenance Manual
2601031
2601077
3-404
Engine Tools
3600 Engine Tools
207-5034 Stud Tensioner Tool Group (Continued)
Model: 3600 Engines
Warranty: Six Months
Item Part Number Description
-- 207-5034 Stud Tensioner Tool Group
1 207-4607 Threaded Collar (bearing stud)
2 8T-0889 Threaded Collar (head stud)
3 8T-0898 Cylinder Head Pedestal
4 8T-0891 Threaded Collar (head stud)
5 8T-0896 Bearing Pedestal
6 8T-0494 Test Stud Spacer
7 8T-0493 Cylinder Test Stud
8 8T-0897 Cylinder Head Pedestal
9 4C-6987 Socket
10 9U-5141 Nut Turning Handle
11 1B-0581 Bolt
12 4C-5816 Collar Retainer
13 0L-1351 Bolt
14 8T-0895 Cylinder Group
Not shown
-- 8T-0911 Cap
-- 8T-0913 Piston
-- 8T-0912 Body
-- 8T-0901 Valve
-- 8T-0902 Screw
-- 8T-0903 Screen
-- 8T-0904 Ring
-- 8T-0907 Spring
-- 8T-0908 Bolt
-- 8T-0909 Wiper
-- 8T-0915 Ring
-- 8T-0917 Ring

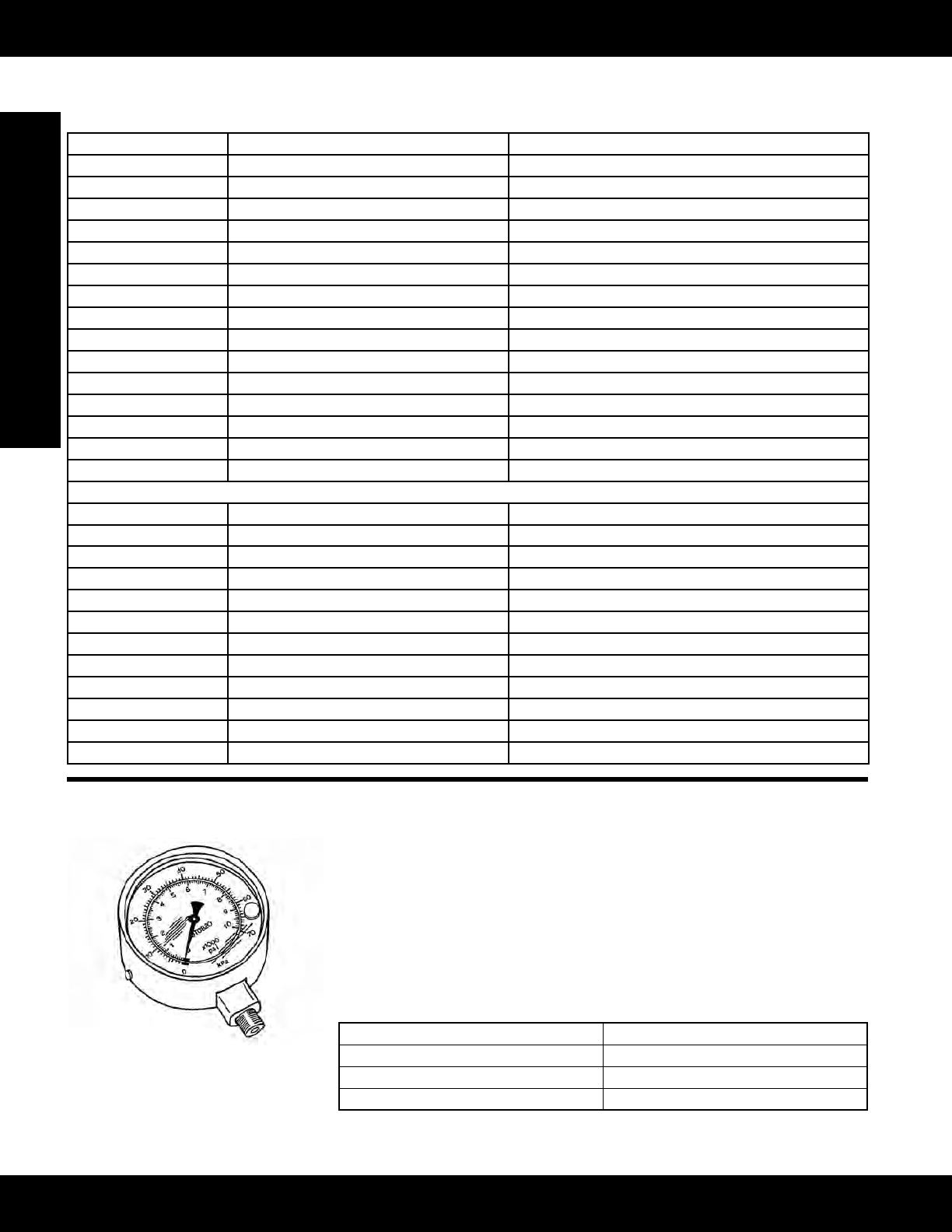

8T-0820 Pressure Gauge
Model: 3600 Engines
• Usedtoprovidepressurereadingofhydraulicpumpswhenusedwith207-5034
Stud Tensioner Group or 8T-0970 Cam Bearing Tool Group or 6V-7073 Liner Puller
Group or 4C-8568 Liner Puller Group
• Used with 3S-6224 Hydraulic Pump (115 Volt) or 8S-8033 Hydraulic Pump (230
Volt);2N-1931Fitting,45°StreetEllcanbeusedtomakegaugefacemorevisible
• Liquid-lledgaugehasfacecalibratedwithbothkPaandpsi
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Pressure range 0 - 70,000 kPa (0 - 10,000 psi)
Operating temperature -20° to 65° C (-4° to 150° F)
Male-threaded connection 1/4 - 18 NPTF
Gauge diameter 102 mm (4.0 in)
(Continued)
