3-374

Engine Tools

Engine Lifting and Positioning

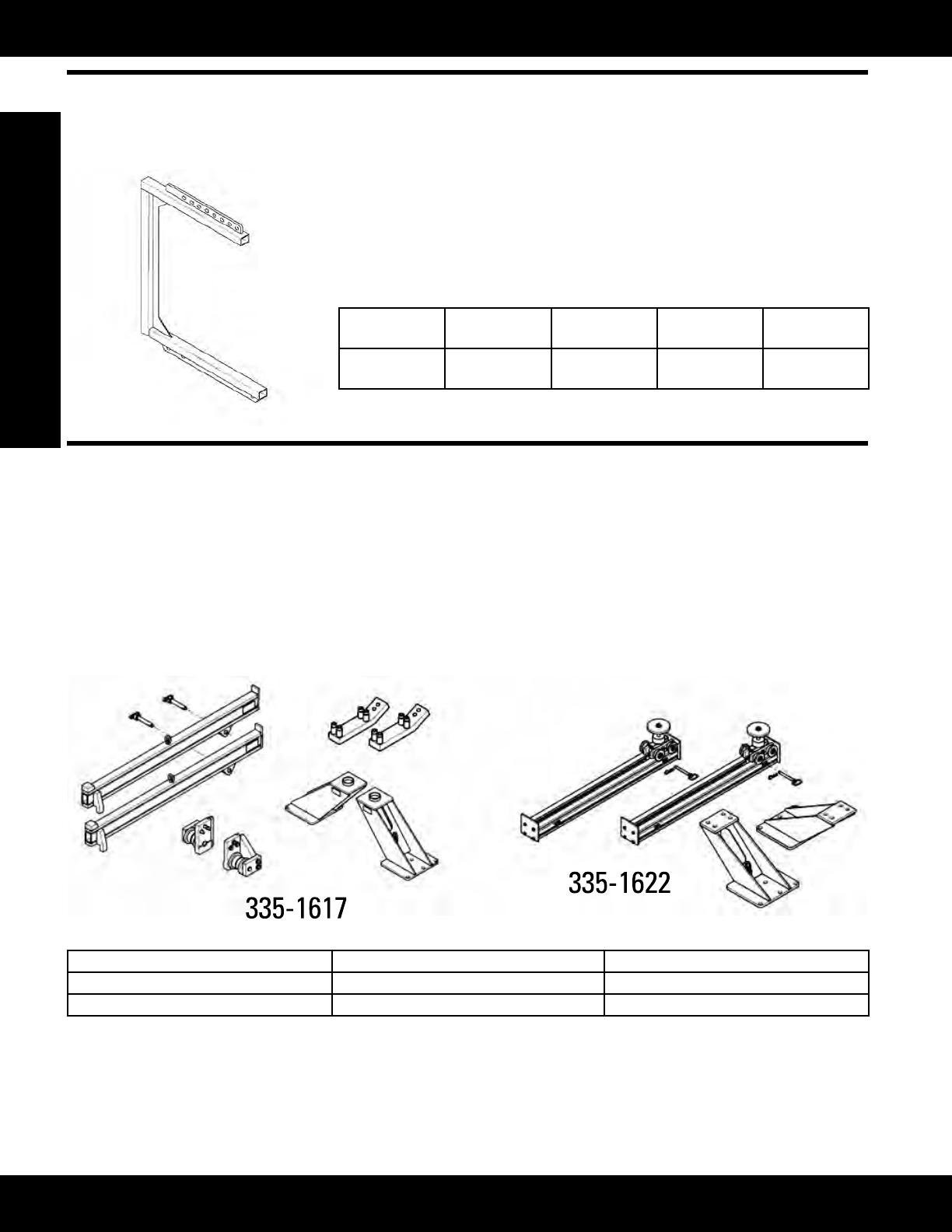

368-0005 Lifting Bracket

Essential Tool

Model Usage: Skid Steer Loaders

Warranty: Six Months

European Union compliant, CE marked

• Usedtoremoveandinstall3034,3024C,and3044CEngines

• Usedwithanoverheadliftingdevice

• Toprailofbrackethasmultipleliftingpointsforcenter-of-gravityadjustments

• Bottomrailhasthreeliftingpointsforvariousengines

Reference

NEHS1113, Tool Operating Manual

Part Number Description

Working Load

Limit Overall Size Weight

368-0005 Lifting Bracket 340 kg (750 lb) 79 x 112 cm (31

x 44 in)

24 kg (53 lb)

795F AC Engine Rail System

Model Usage: 795F AC

Warranty: Six Months

European Union compliant, CE marked

• UsedtosupporttheC175engineduringremovalandinstallationinthe795FACOff-HighwayTruck

• Includesrearandfrontrailtoolgroupsandvarioussupportbracketsthatareusedwithbothgroups

• Rear rail tool group can be used independently without using the front rail tool group

• Duetooverheadobstruction,railsallowenginetoberolledforwardandbackwardforremovalandinstallation

Reference

NEHS1096, Tool Operating Manual

KENR8726, 795F AC Off-Highway Engine Supplement

Part Number Description Weight

335-1617 Rear Rail Group 42 kg (92 lb)

335-1622 Front Rail Group 158 kg (349 lb)
