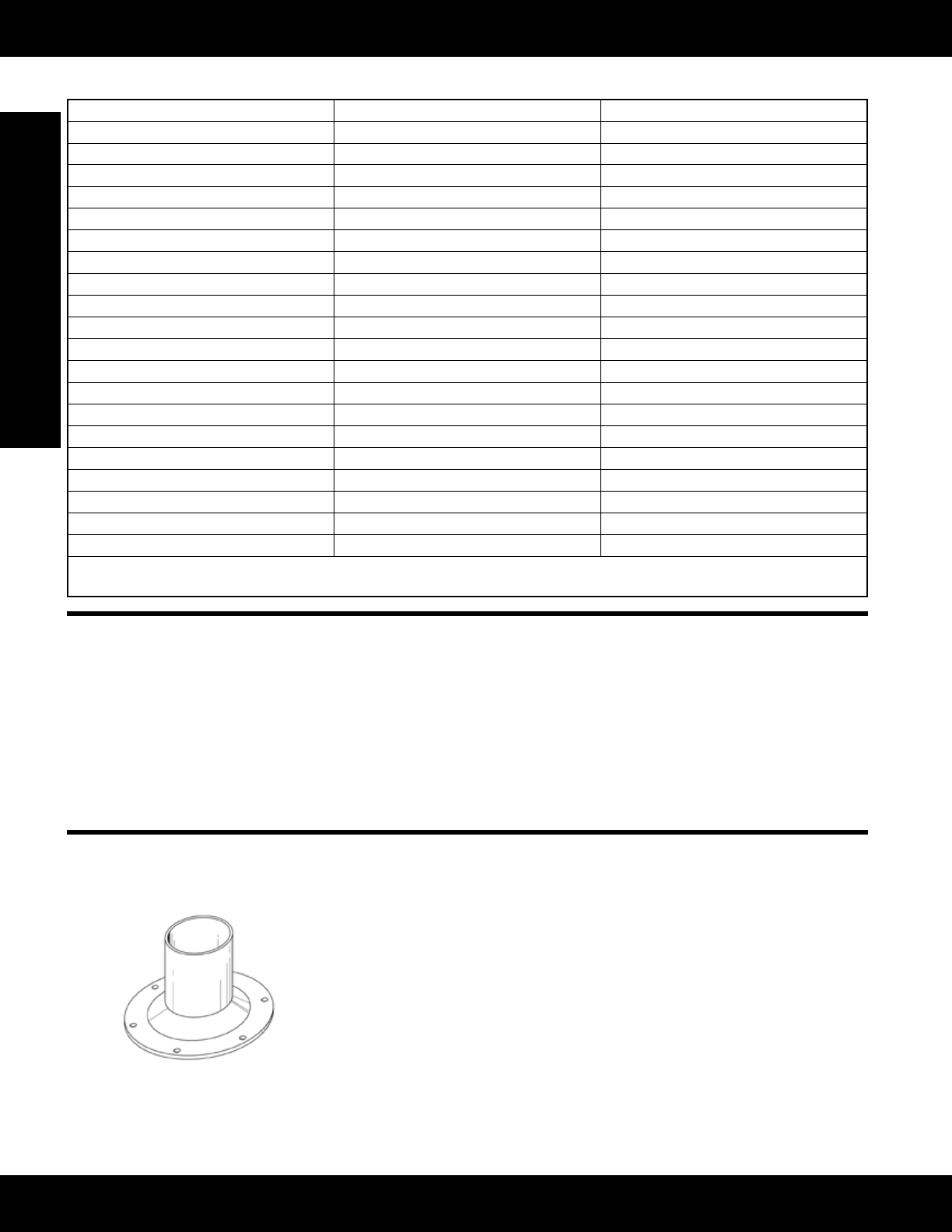

Caterpillar Engine Tools Cat Overhaul 3512 Page 190

Operation and Maintenance Manual
2645180
2593551
2593565
3-190
Engine Tools
Engine Test Tools
Engines (Continued)
Model Serial Number Adapter
1145 97B FT0730-4
1150 96B FT0730-4
1160 95B FT0730-4
3145 96M, 65P FT0730-4
3150 97M, 66P FT0730-4
3160 98M, 67P, 68P FT0730-4
3204 45V FT0730-4
3208 90N, 40S, 75V, 79V FT0730-4
1670 61B FT0719-2
1673 74B FT0719-2
1673B 70B, 78B FT0719-2
1673C 69D, 76R FT0719-2
1674 94B FT0719-2
1676 54B FT0719-2
1693 65B1-493¹ FT0718-1
1693 65B494, 27U FT0775-2
3406 90U, 91U, 92U, 70V FT1177-3
3408 67U, 99U, 28V FT1177-3
3412 60M, 38S FT1177-3
3512 49Y, 50Y, 51Y, 24Z FT1615
¹UseFT0775Adapteronenginesequippedwithdiscontinued4S-9643or9S-7536(notserviced)CrankshaftReplacementGear
Group
Dynamometer Testing Facilities
MiscellaneousdrawingsavailablefromDivisionServiceManager:
Engine Base Assembly for Dynamometer Room, Miscellaneous Drawing 2002
• Providesdetailsforconstructingaveryversatilebaseonwhichanyengineandstandcanbesecuredfordynotesting
• Accomplishedbymovableteehooksinpermanentoorslots
Single Base Dynamometer Room, Miscellaneous Drawing 2014
Double Base Dynamometer Room, Miscellaneous Drawing 2001
• Provideconstructiondetailsforsingleandtandemenginedynotestarrangements
• Facilitiesincludearoof-mountedexhauststackwhichcanbepulleduptoceilinglevelbymeansofawinchandcable
• Plans include soundproof doors and acoustical walls and ceiling
FT1003 Water Line Adapter
Model: All Vehicle Engine Models
Warranty: None
• Used to connect dynamometer cooling line to engine water pump when dyno
testing 5.4 inch Bore 60° V-8 Vehicle Engines
• Removebypasslineadapterandregulatorhousingandboltadapterdirectlyto
water pump
• Material: SAE 1020 steel
