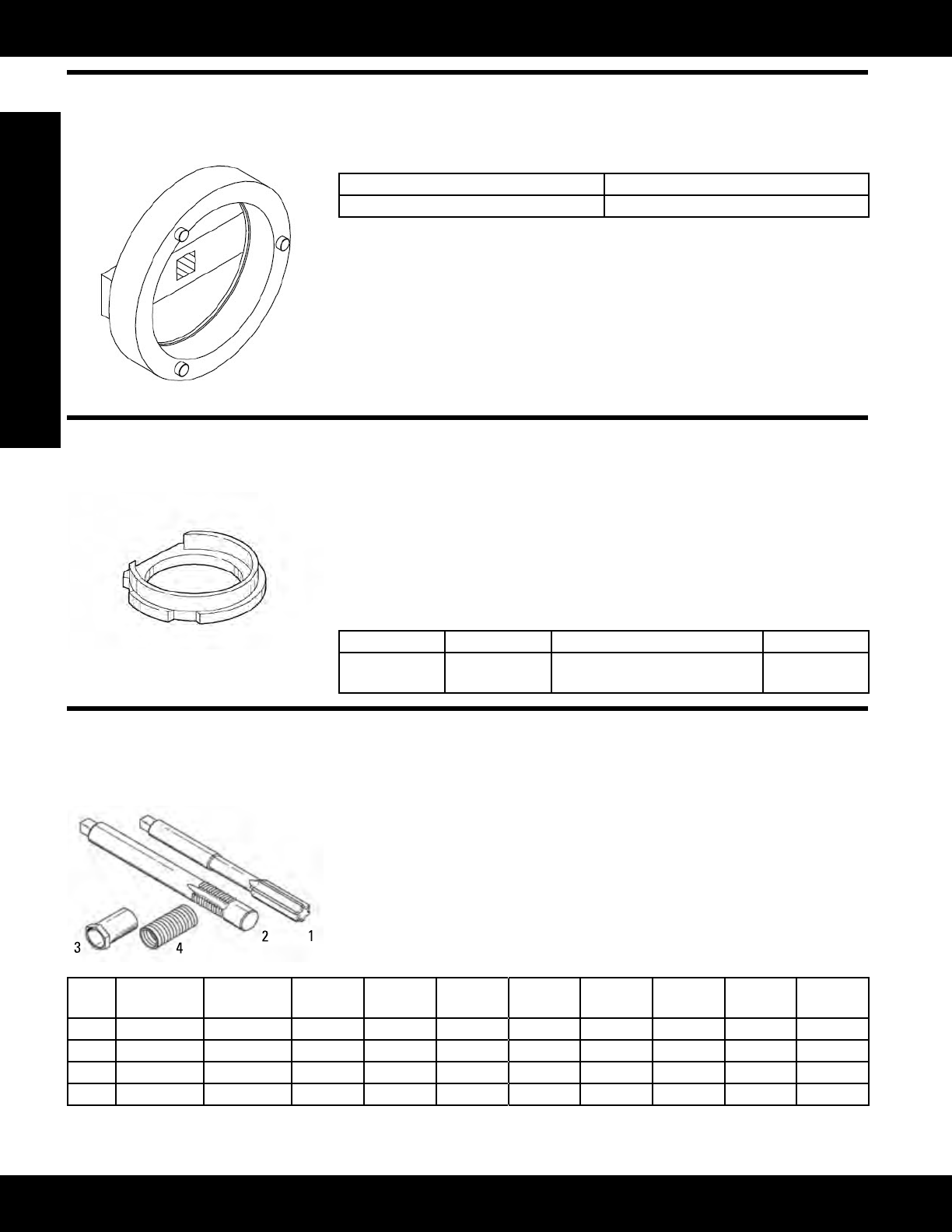

Engine Tools
Crankshaft, Main Bearings and Flywheel
367-3534 Seal Installer
Model Usage: C7.1, C6.6, C4.4
Warranty: Six Months
• Usedtocorrectlyremoveandassemblefrontcrankshaftoilseal
Part Number Description
367-3534 Seal Installer
363-3031 Seal Installer Assembly
Model Usage: C6.4 and 3066 Engines
Warranty: Six Months
• Usedtoinstall324-4223Sealonfrontofcrankshaftwithoutremovingfrontcover
• Used in place of current 9U-6180 Front Seal Installer Group when installing
newly designed seals (using the 9U-6180 will cause seal damage)
• Makesinstallationeasierandpreventsdamagetoseals
• Ensuresuniformcontactaroundcrankshaft(ultimatelyprovideslongerseallife)
• Designedwithclearancetotaroundprotrudingparts
• Material: steel
Part Number Description Size Weight
363-3031 Seal Installer
Assembly
125mm(4.9in)overalldiameterx
24.5 mm (.95 in) thick
0.6 kg (1.3 lb)
Thread Repair Kits
Essential Tool
Model: 3406, G3406, 3408, G3408, 3508, G3508, 3512, G3512, 3516, and G3516 Engines
Warranty: Six Months
• Used to repair main bearing cap bolt holes
• Repairs bolt hole threads to like-new condition
• Groupsareservicedatindividualtoollevelonly
References
SEBF8387, Main Bearing Bolt Hole Repair in 3400 Engines
SEBF8437, Main Bearing Bolt Hole Repair in 3500 Engines
Item Part Number Description
Engine
Model 1st Ream 2nd Ream 3rd Ream 1st Tap 2nd Tap
Insert
Sleeve Insert
1 178-2349 Reamer -- -- -- -- -- -- -- --
1 178-2350 Reamer -- -- -- -- -- -- -- --
1 178-2351 Reamer -- -- -- -- -- -- -- --
1 178-2462 Reamer -- -- -- -- -- -- -- --
(Continued)
