3-337

Engine Tools

Camshaft and Timing Gear Tools

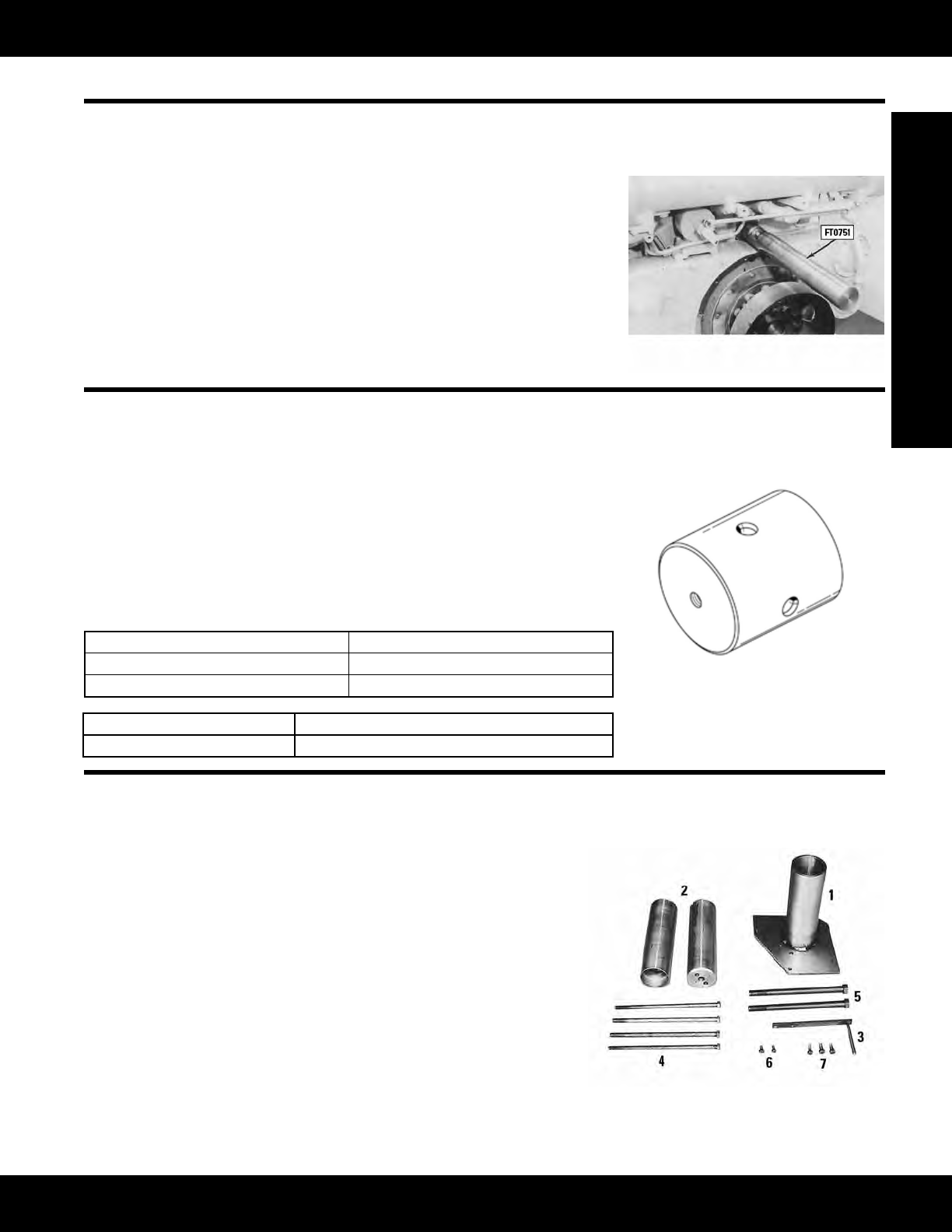

FT0751 Camshaft Alignment Sleeve

Models: D379, G379, D398, G398, D399, G399

Warranty: None

• Used when installing camshaft

• Fitsovertaperedendofcamshaftandguidesitintoposition,minimizingpos-

sibility of bearing damage

131-1525 Camshaft Alignment Pilot Assembly

Model: C-10 and C-12 Engines

Warranty: Six Months

• Usedtoremoveandinstallcamshafts(threadsdirectlyontoendofcamshaft)

• Madefromaluminumtopreventdamagetocambearings

• 2cross-drilledholesprovidemeansofremovingpilotassembliesaftercamshaft

is installed

• 2 required — thread 4 into the other to make installation between engine and

rewalleasier

References

SENR1002,ServiceManualModule

SENR1007,ServiceManualModule

Length 98 mm (3.9 in)

Outside diameter 74.74 mm (2.943 in)

Stud M10 x 1.5 thd

Part Number Description

131-1525 Camshaft Alignment Pilot Assembly

Camshaft Installation Tools

Model: 3500

Warranty: Six Months

• Directreplacementfordiscontinued6V-4019PilotGroup;

new tooling can be used on all earlier engines

• When installing camshaft into camshaft bearings in

cylinderblock,itisnecessarytoprovidepilot/guidefor

camshafttopreventdamagetobearings;becauseof

changes in camshafts of 3500 engines, there are new

installation tools that pilot camshaft from both ends until

camshaft is in place

• Designed so camshaft can be installed from either end of

engine

(Continued)
