Caterpillar Engine Tools Cat Overhaul 3512 Page 49

Operation and Maintenance Manual
2980876
2588007
2887674
3-49
Engine Tools
Crankshaft, Main Bearings and Flywheel

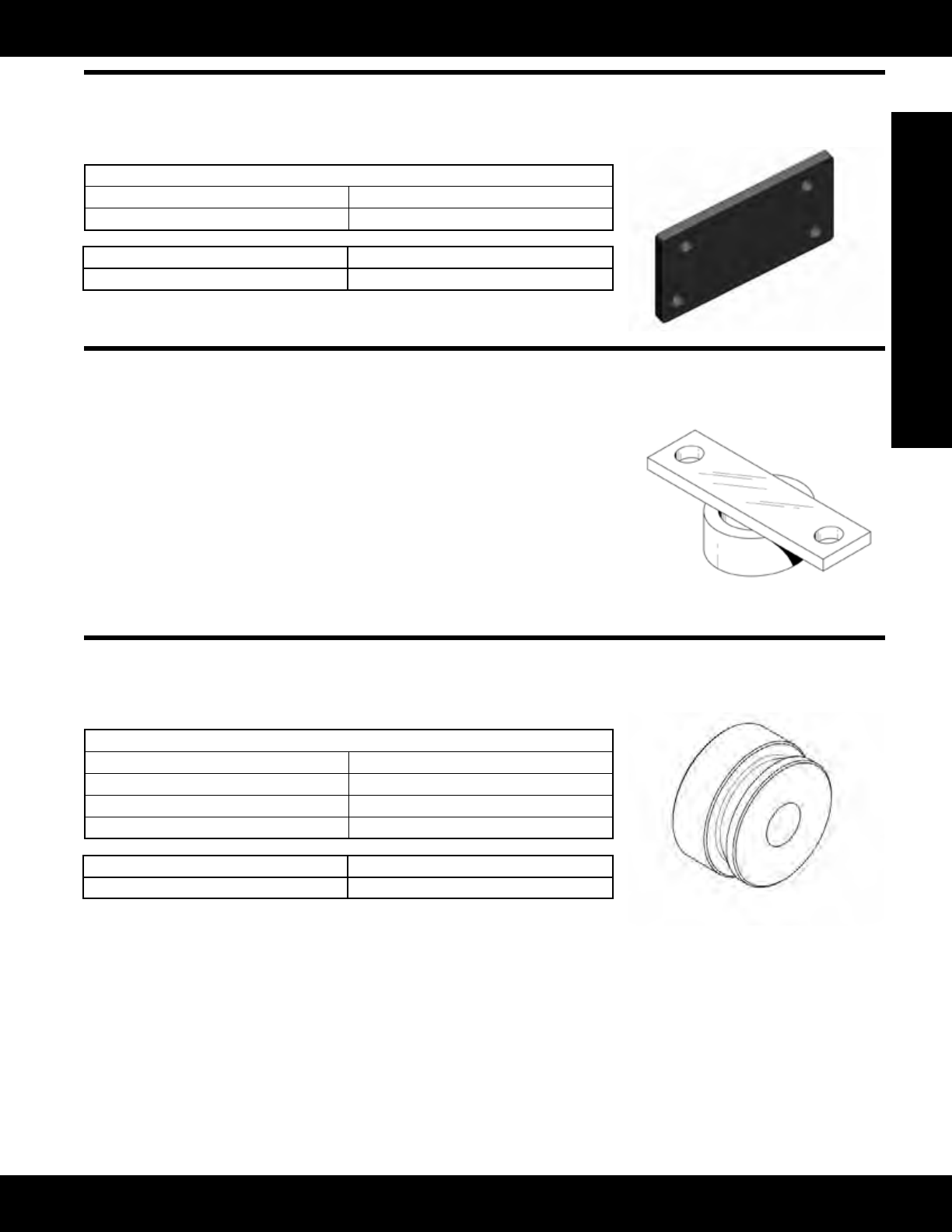

393-2572 Flywheel Stopper Plate
Model Usage: C3.8
Warranty: Manufacturer’s
• Usedtoloosenandtightentheywheelscrew
Specications
Dimensions 140 x 78.7 mm (5.51 x 3.10 in)
Weight .662 kg (1.45 lb)
Part Number Description
393-2572 Flywheel Stopper Plate
FT1341 Bracket Assembly
Model: 3408, 3408B, 834B, 988B
Warranty: None
• Adaptable to 988B Engine
• Usedtopreventcrankshaftgearfromdroppingoffcrankshaftduringremovalof
ywheelanddamagingseals
364-7209 C4.4 Timing Case Cover Alignment Tool
Model Usage: C4.4
Warranty: Six Months
• UsedtocorrectlyalignpressedtimingcasecoverforC4.4engine
Specications
Dimensions Outer Diameter: 79.35 mm (3.12 in)
Depth: 44.45 mm (1.75 in)
Weight 3.62 kg (8.0 lb)
Material(s) Steel
Part Number Description
364-7209 C4.4TimingCaseCoverAlignmentTool
