Caterpillar Engine Tools Cat Overhaul 3512 Page 35

Operation and Maintenance Manual

Page of 420

/ 420

2587492

2587514

2587534

3-35

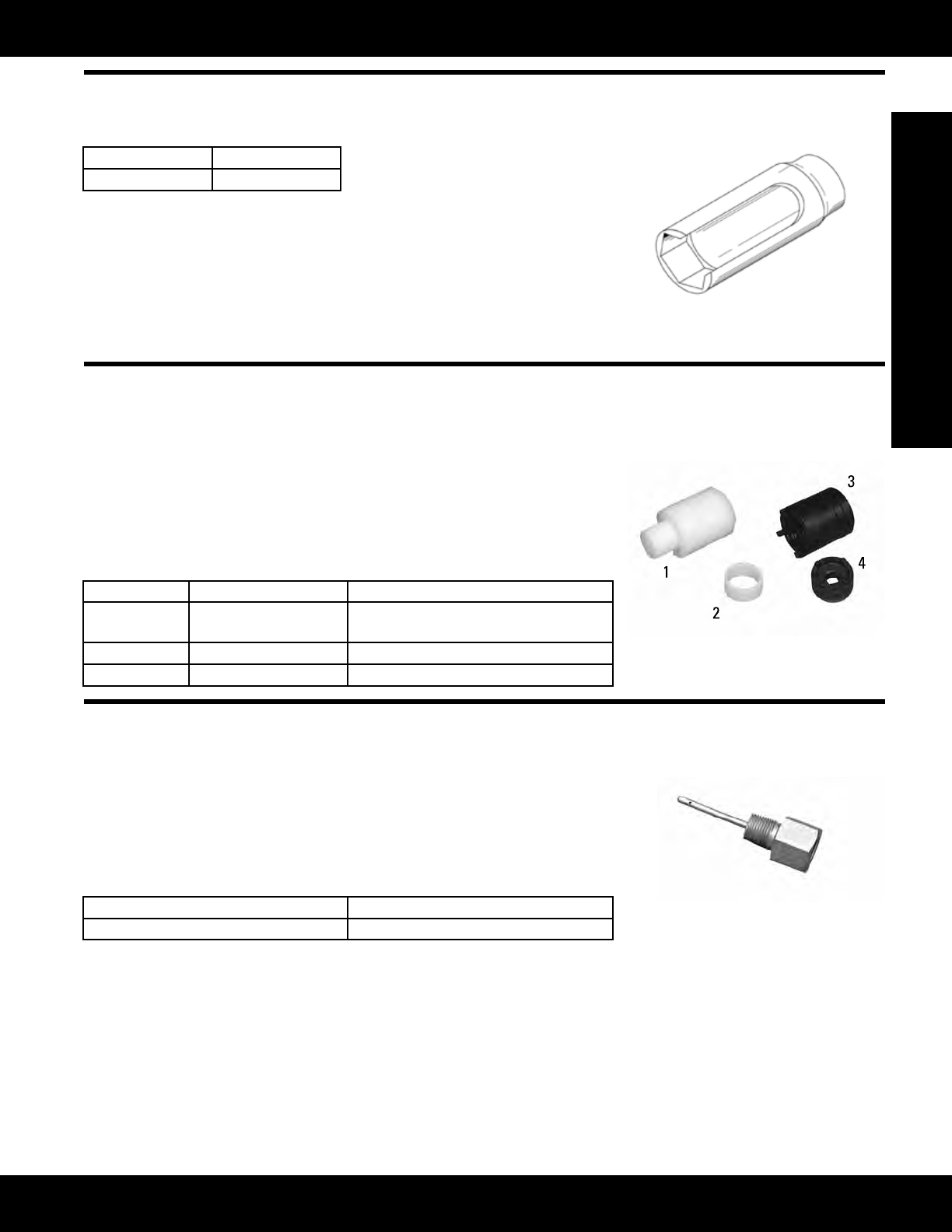

Engine Tools

Cooling System

9U-5103 Slotted Socket

Model: 3406E, C-15, and C-16 Engines

Warranty: Six Months

• Usedtoremoveandinstallcoolant

temperature sensor

• Deep well design easily reaches

sensor

• Slotted side for sensor wire clear-

ance

• Squaredrive:1/2inch

• Socket type: 6 point, 1 1/16 in

Part Number Description

9U-5103 Slotted Socket

9U-6627 Seal Installer, 9U-6626 Locknut Spanner Wrench

2P-2317 Locknut Spanner Wrench

Model: 3400 Marine Engines

Warranty: Six Months

• Used to disassemble and assemble 6I-1928 and 105-0268 Raw Water Pumps —

used on 5N-6054 Seal Group

• Spannersocketsreduceremovaltimeofshaftlocknuts—easierremovaland

less chance of damage

• Dualpurpose9U-6627SealDriverinstallsseal—ringisusedwithdriverto

removeoldseal

Item Part Number Description

1&2 9U-6627 Seal Installer (Includes item 2 Seal

Remover)

3 9U-6626 Locknut Spanner Wrench

4 2P-2317 Locknut Spanner Wrench

164-2192 Pressure Probe

Model: Multiple Engine Models

Warranty: Six Months

• Replaces discontinued 5P-2718 Pressure Probe

• Usedwithpressuregaugetocheckpressureofuid-lledcompartments

• Fits 3.175 mm (1/8 in) pipe plug threads

• Can be used alone or with 5P-2720 Probe Adapter Group, 5P-2725 Probe Adapter

Group, or 5P-3591 Probe Adapter Group

• Can be used in applications up to 2750 kPa (400 psi)

Part Number Description

164-2192 Pressure Probe
