Caterpillar Engine Tools Cat Overhaul 3512 Page 59

Operation and Maintenance Manual
2588278
2588300
2588315
3-59

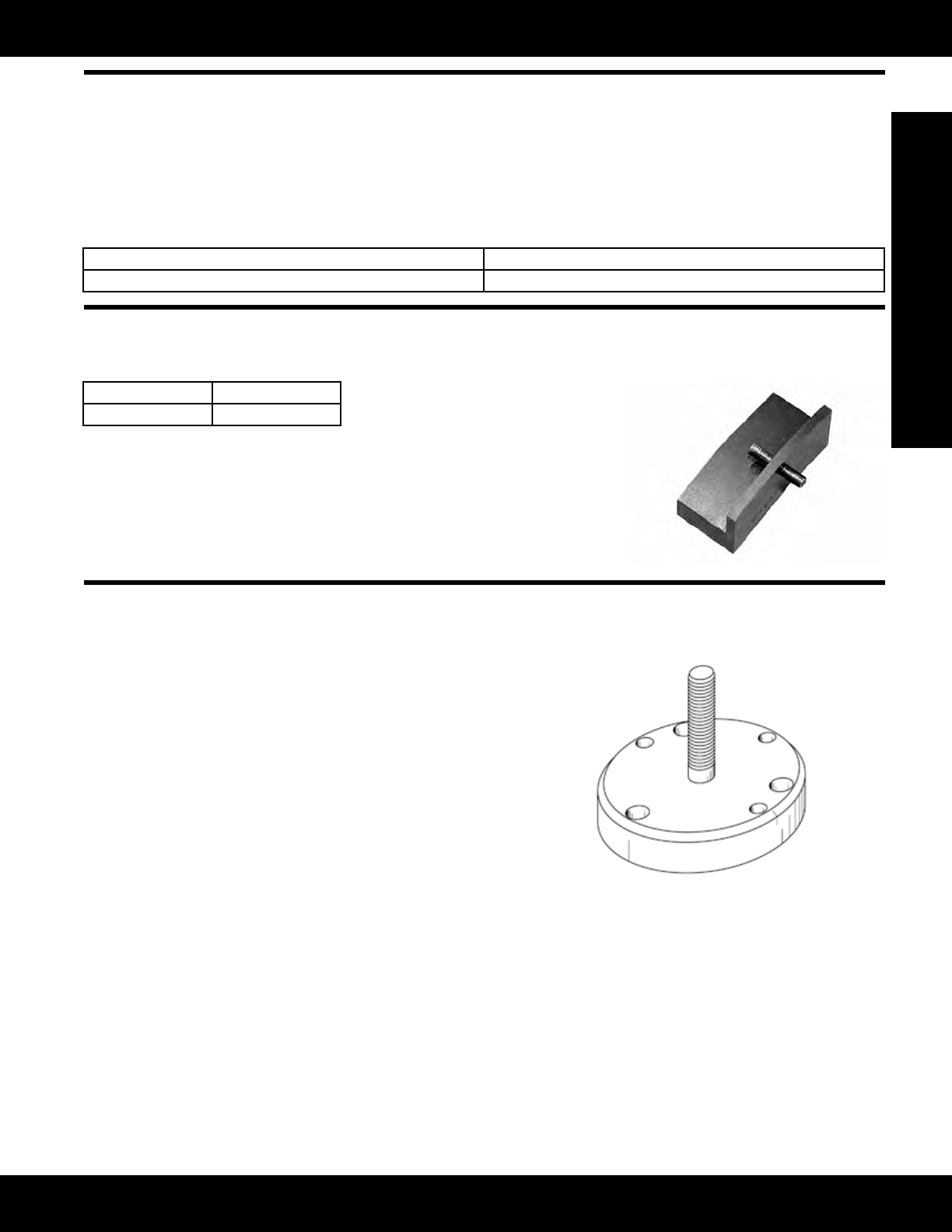

Engine Tools
Crankshaft, Main Bearings and Flywheel
1U-7325 Distorter Adapter
Model: 3508, 3512, 3516, 789, 793, 994
Warranty: Six Months
• Usedwith5P-7409Distortertoremovefrontandrearcrankshaftwearsleevesfrom3500SeriesEngineswith1W-6974Seal
Group and 1W-6977 Seal Group
• Positions5P-7409Distorterproperlyagainstywheelandtiminggearhousingforwearsleeveremoval,adifculttaskwith-
outtheuseofadistorterandadaptertoexpandsleeveawayfromcrankshaft;onceexpandedonjournal,wearsleevecan
beeasilyremoved
Part Number Description
1U-7325 Distorter Adapter
6V-3143 Distorter Adapter
Model: 3500 Engines
Warranty: Six Months
• Usedwith5P-7409WearSleeve
Distortertoremovecrankshaftwear
sleeves
Part Number Description
6V-3143 Distorter Adapter
FT0125 Pilot
Model: D311H, D320, D330, D333, G333 and 1673 Engines
Warranty: None
• UsedwithFT0126Sleevetoinstallcrankshaftoilseal
• Material: SAE 4140 steel
